Description

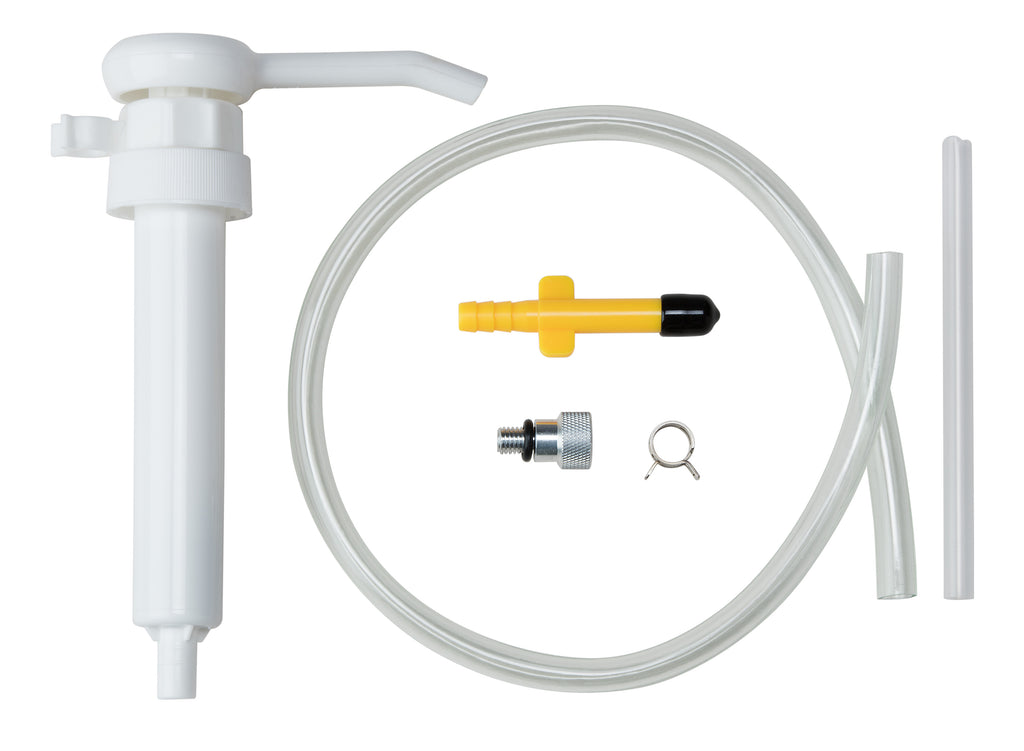

• plastic pump incl. universal hose and adapter
• adapter for metric thread and imperial screw joints
• for all 1 l containers from LIQUI MOLY
• for 0.5 l and 5 l containers from LIQUI MOLY with SK 38 thread
AREAS OF APPLICATION
- For filling transmissions and other units such as outboard motors, lawnmowers, emergency power units, riding mowers, snow blowers or motorcycle transmissions
APPLICATION
- If necessary, cut hose A to the right length at the straight end
- The notched end should touch the bottom of the container (1)
- Take the short straight hose and insert the end you have just cut into the pump from below (2)
- Connect hose B to the hand pump and secure with the clip (3)
- Insert the yellow end piece (inch thread) into the hose (4)
- The end piece can be adjusted to metric threads using the adapter (5)
- Screw the pump onto the container and open the pump lever
- Hold the roughly corrugated part (6) and turn the pump lever counterclockwise until it flips up (7)
- The pump is now ready to use
TECHNICAL DATA
| Net weight (kg) | 0.141 |
| Gross weight (kg) | 0.141 |
| Container contents | 1 pc |
