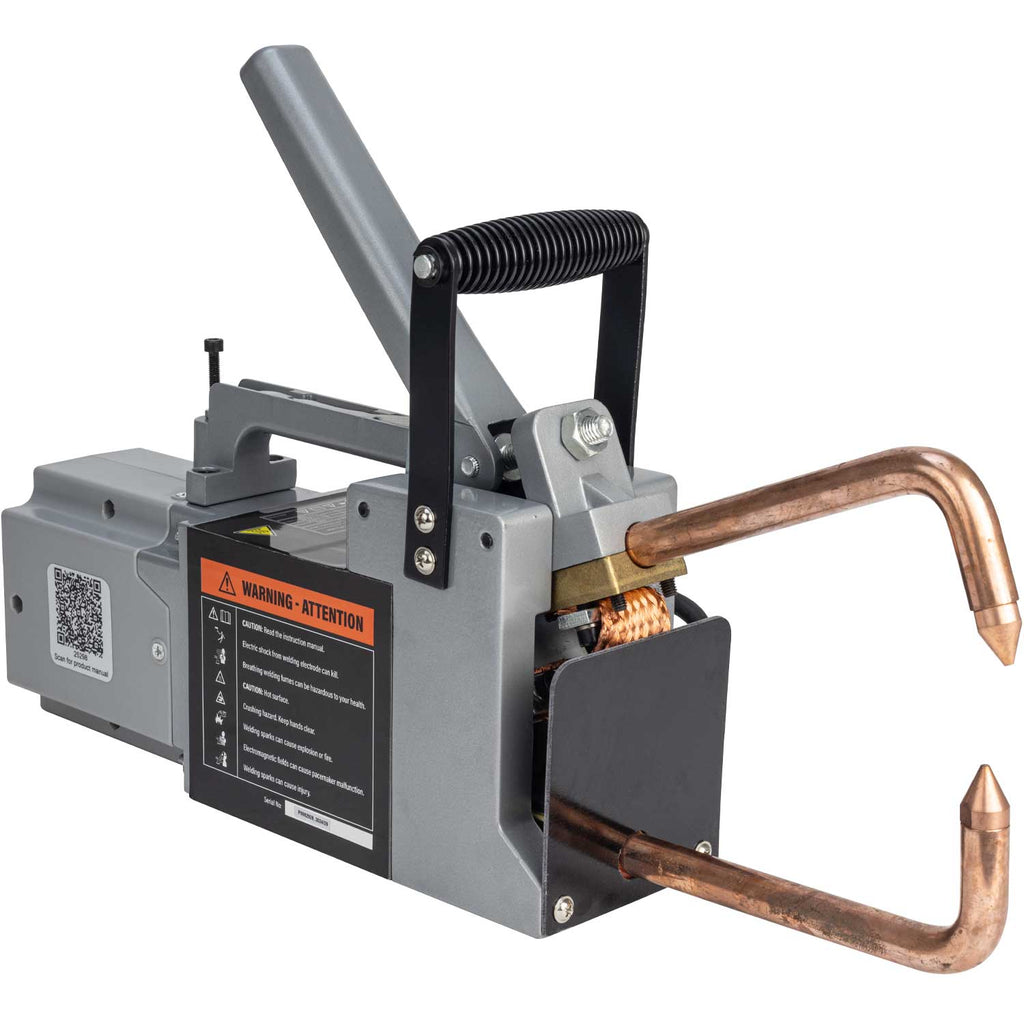

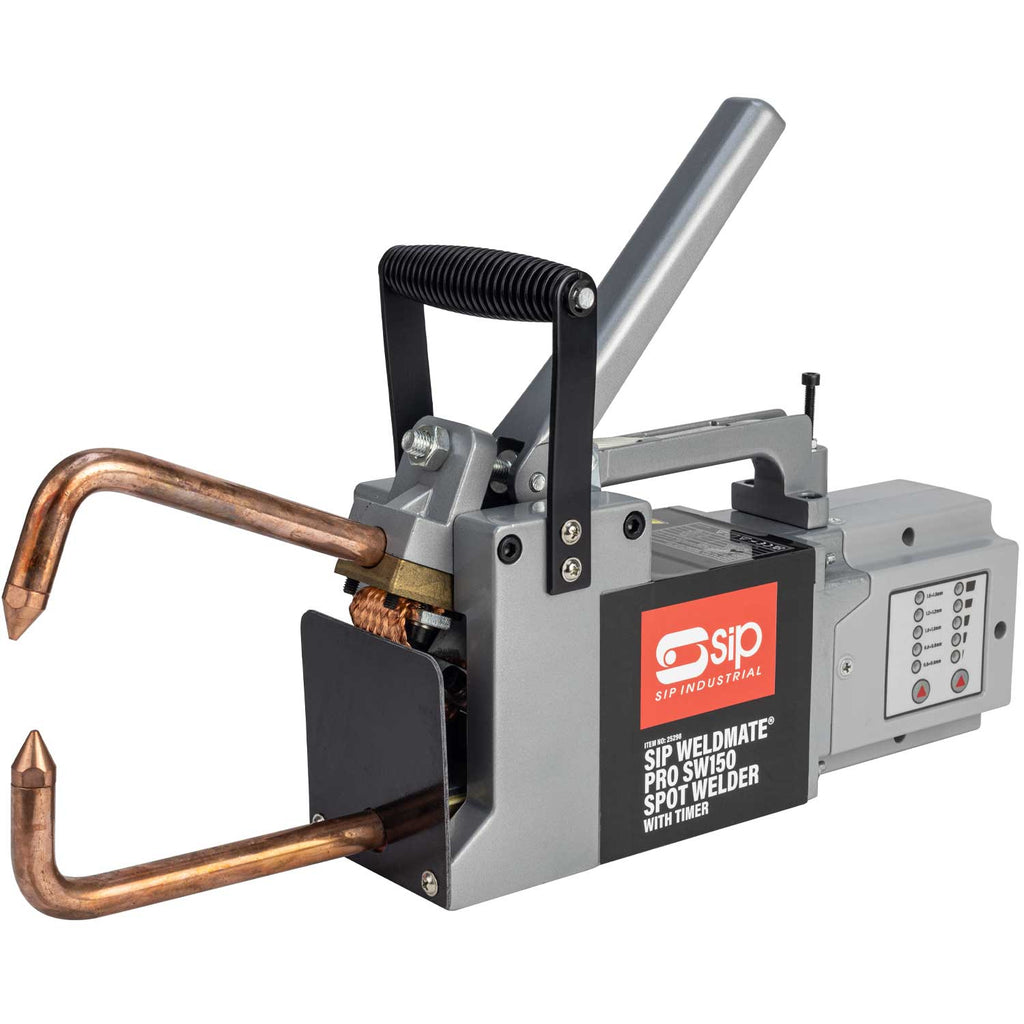

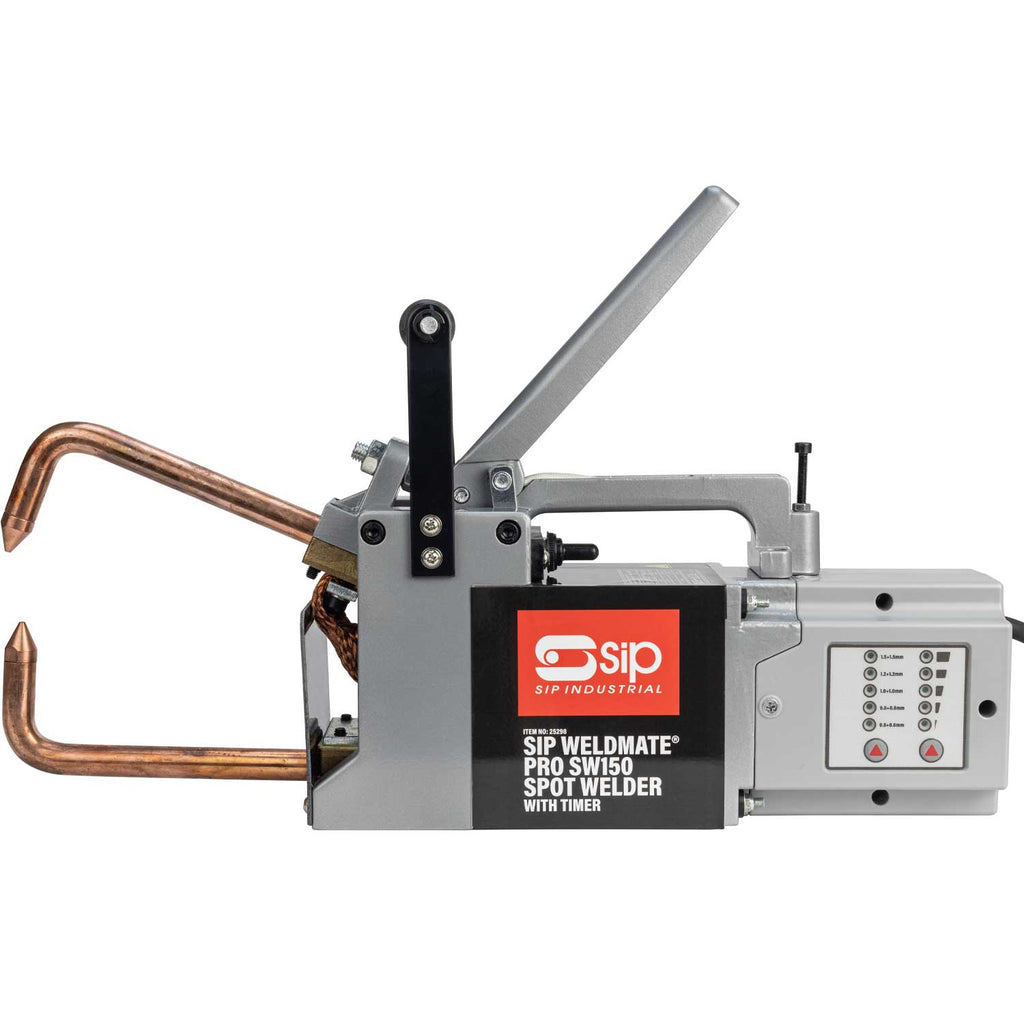

The SIP WELDMATE® PRO SW150 Spot Welder with Timer is a portable resistance welder designed for sheet metal applications in automotive environments and light fabrication workshops.

Ideal for vehicle body panel repairs and light sheet metal tasks, this easy-to-use welder uses copper/chrome alloy electrodes to achieve a maximum welding thickness of 1.5mm - 1.5mm and features a microprocessor-controlled timer function for precise and consistent welds.

For added flexibility the welder operates from a 13A supply. It is also available with a range of additional electrode arms sold individually or as a bodywork kit for greater application versatility.

Applications & uses: Perfect for automotive and garage environments. Ideal for sheet metal welding applications. Suitable for fabrication workshops. Suitable for mild steel, stainless steel and galvanised steel.

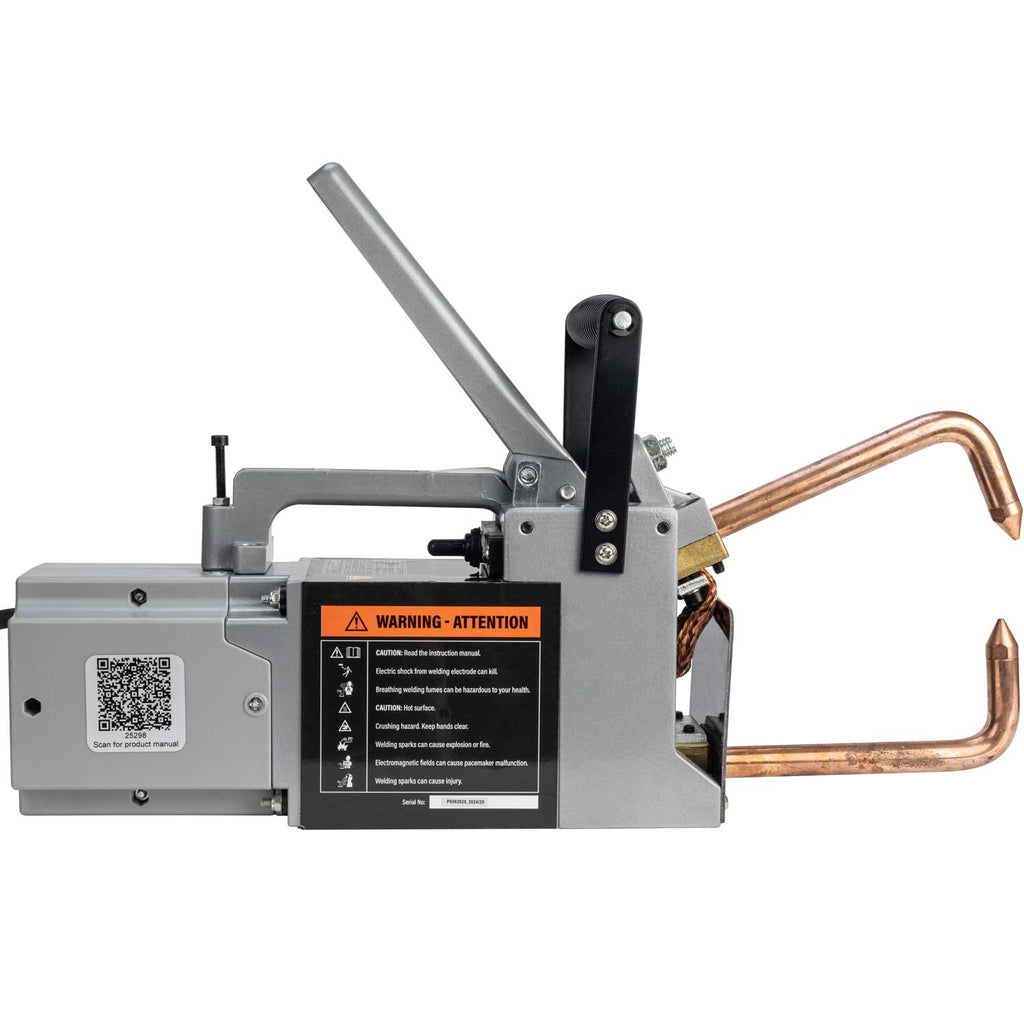

What's in the box?: 1x SIP WELDMATE® PRO SW150 Spot Welder with Timer, 2x 16mm straight electrodes, 1x steel carry handle with 4 fixing screws. User manual available via QR code sticker applied to product.

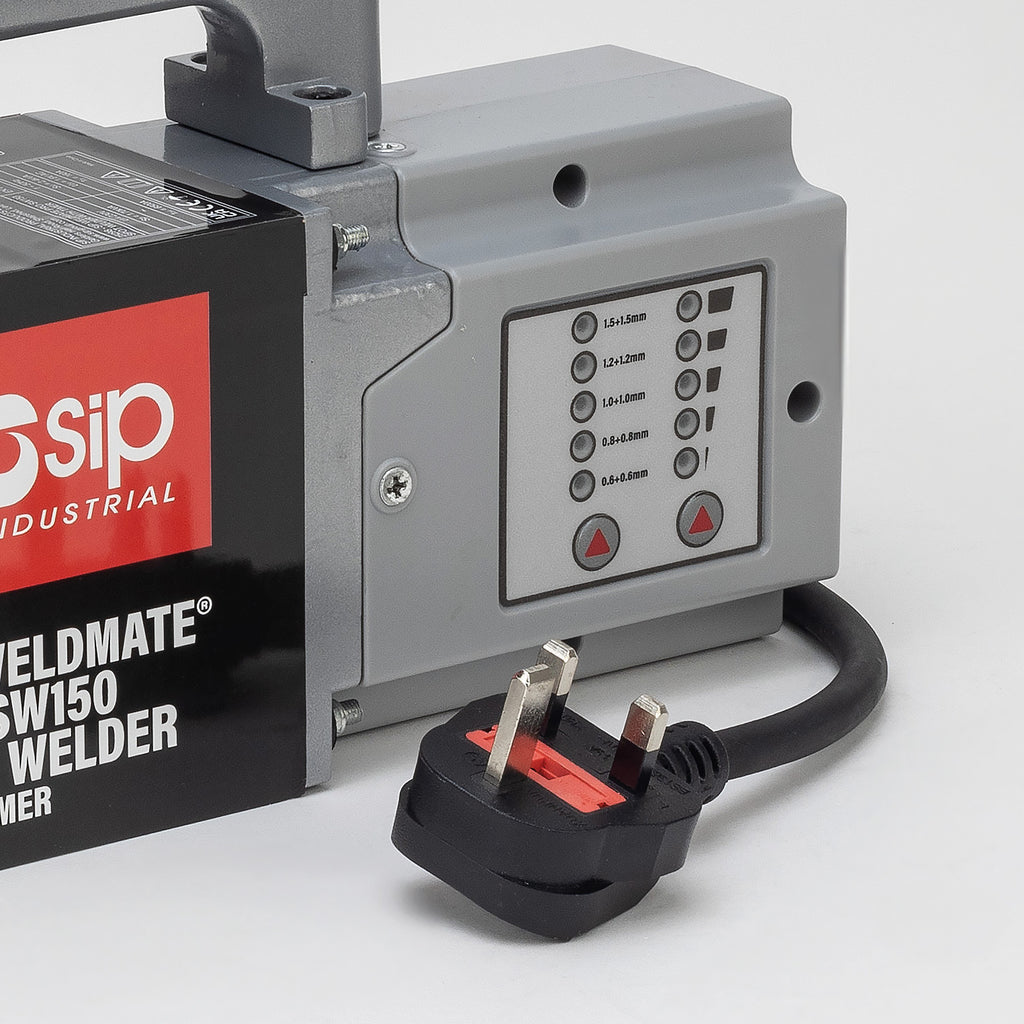

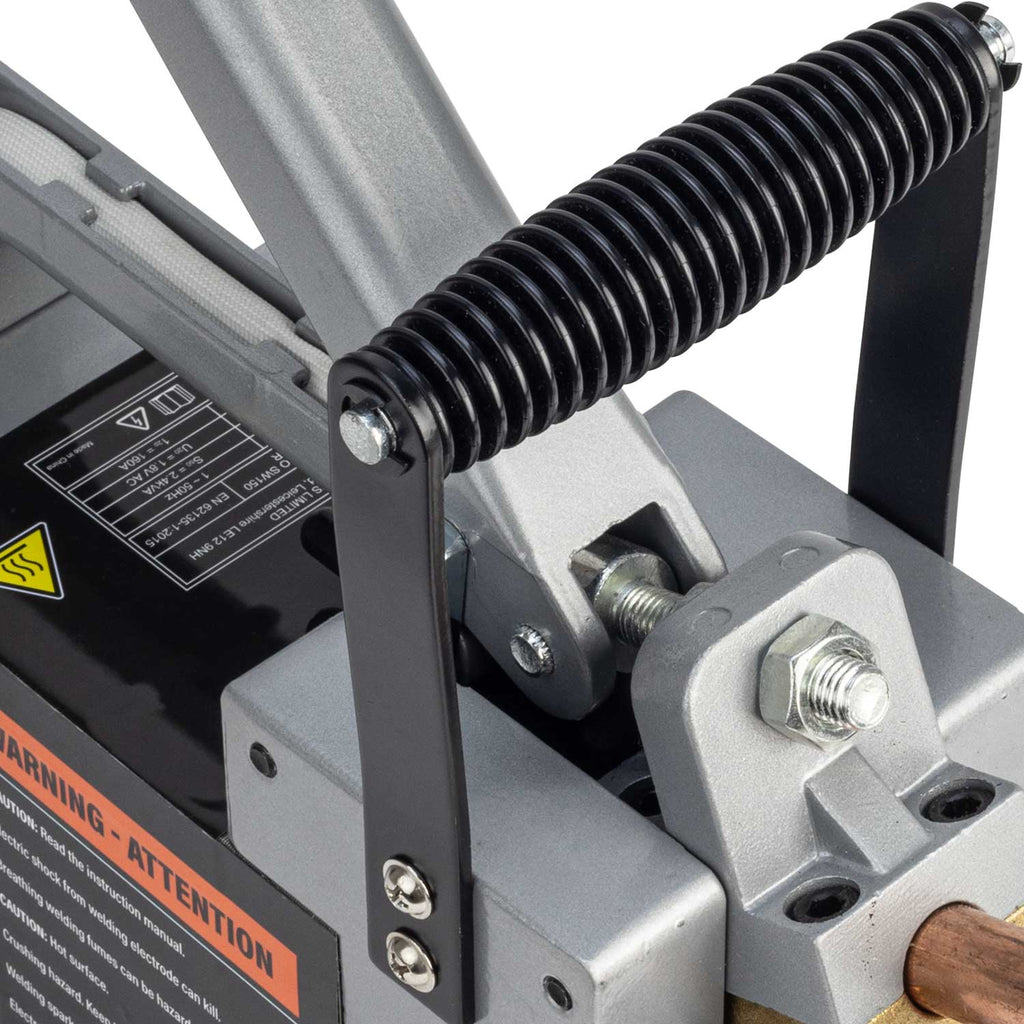

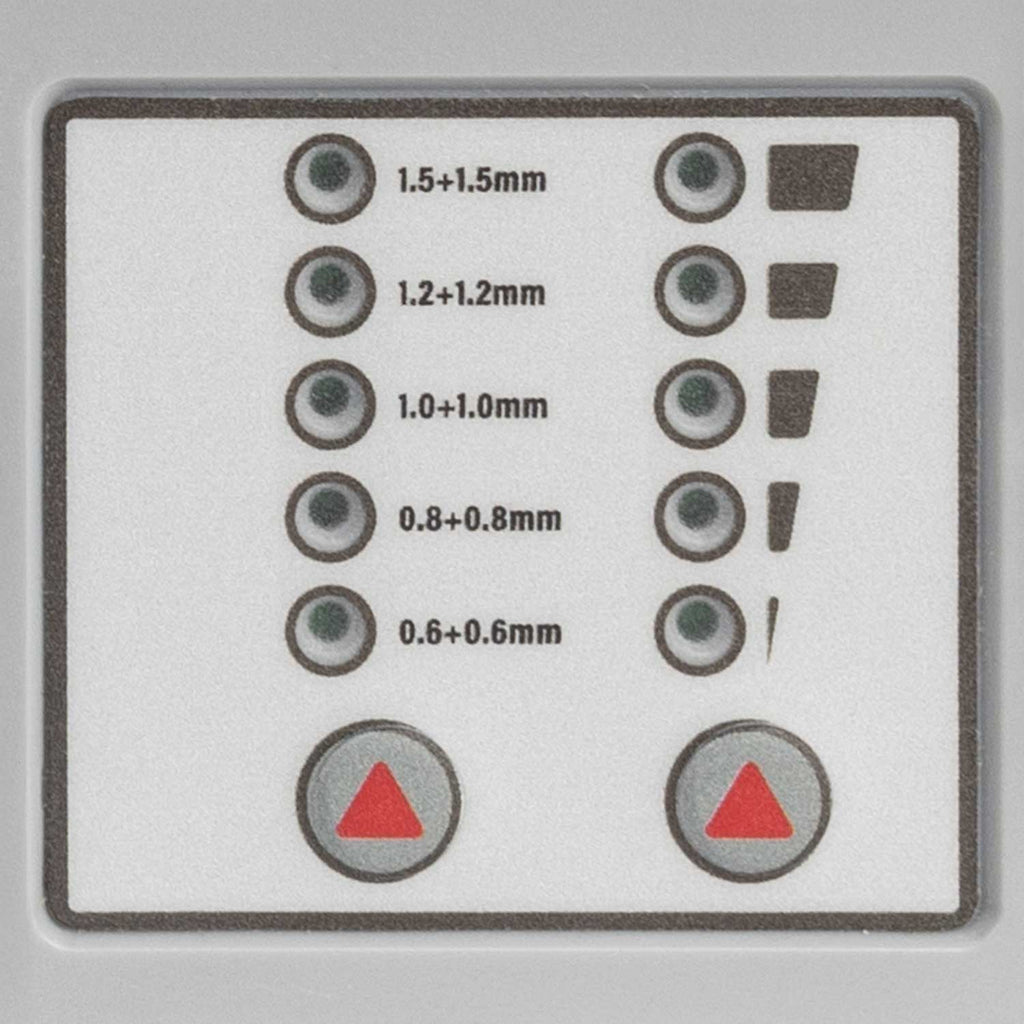

• INTUITIVE SOFT TOUCH CONTROL PANEL FEATURES ADJUSTABLE WELDING THICKNESS & TIMER FUNCTION FOR ROBUST & REPEATABLE WELDING CAPABILITY IN A VARIETY OF APPLICATIONS: Maximum welding thickness of 1.5mm - 1.5mm with sufficient welding current output to achieve 3 welds per minute. A microprocessor-controlled timer function allows settings of 120~900ms for consistent welds. Offers strong localised welds with minimal heat distortion to the surrounding sheet metal. Suitable for mild steel, stainless steel and galvanised steel. Handle allows for easy alignment of the electrodes for accurate welding performance. Fitted with a heavy-duty weld switch for reliable operation in demanding environments. Supplied with a set of replacement 16mm copper/chrome electrodes.
• ADDITIONAL ELECTRODES & BODYWORK KITS AVAILABLE FOR GREATER APPLICATION VERSATILITY: These easy-to-fit accessories are sold separately as individual parts or available as a bodywork kit. The 16mm electrode arms offer added dexterity for a variety of welding applications; 25418 SIP Spot Welder 120mm Arms with Straight Electrodes (? 16mm), 25417 SIP Spot Welder 120mm Arms with Offset Electrodes (? 16mm), 25419 SIP Spot Welder 350mm Arms with Offset Electrodes (? 16mm), 25415 SIP Spot Welder 350mm Restricted Access Arms with Offset Electrodes (? 16mm), 25416 SIP Spot Welder 120mm Arms with Swan Neck Electrodes (? 16mm), 25424 SIP Spot Welder 5pc Bodywork Kit (? 16mm) (for 25298)
• SIP 2-YEAR STANDARD SILVER WARRANTY

Technical Specification

• ITEM NO. 25298
• Input Supply: 230v (13A)
• Max. Welding Thickness: 1.5mm - 1.5mm
• Spot Duration: 120-900ms
• Welds Per Minute: 3 welds per minute
• Max. Electrode Force: 460N
