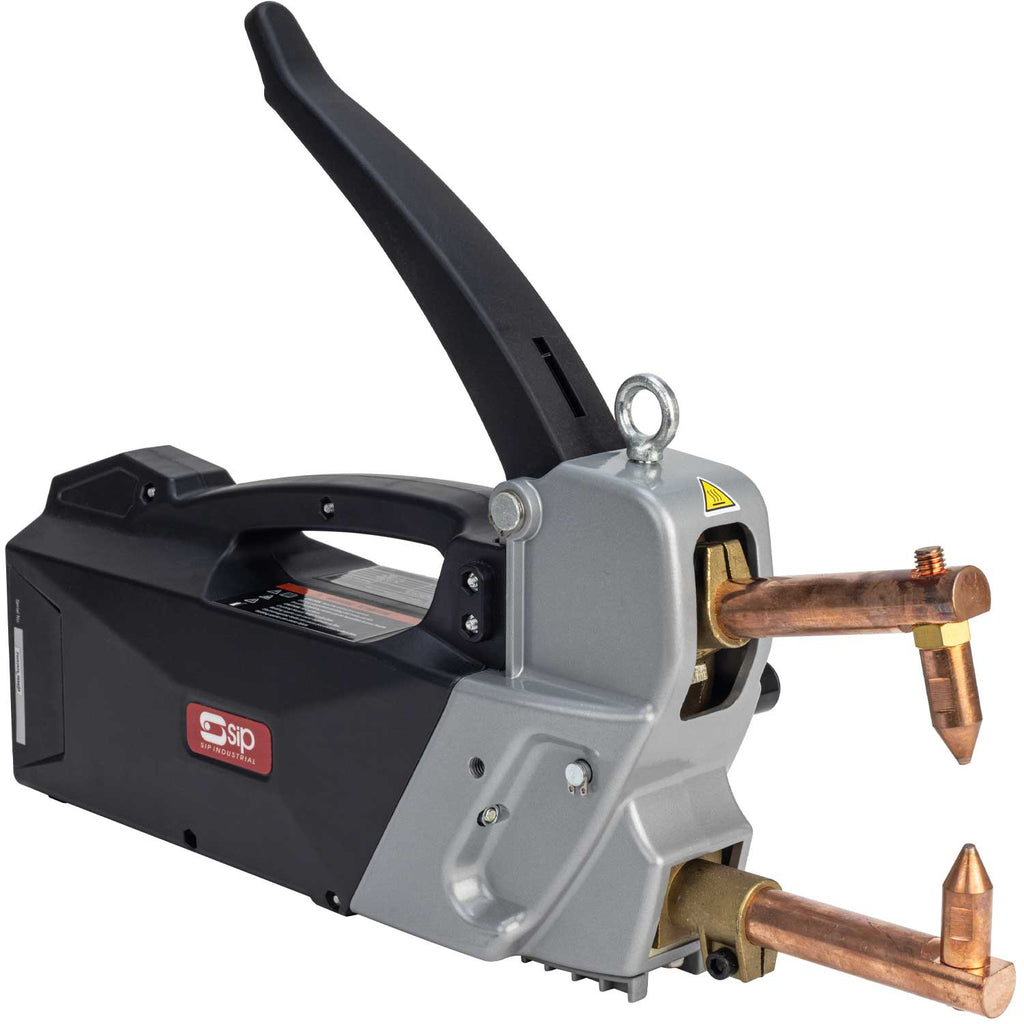

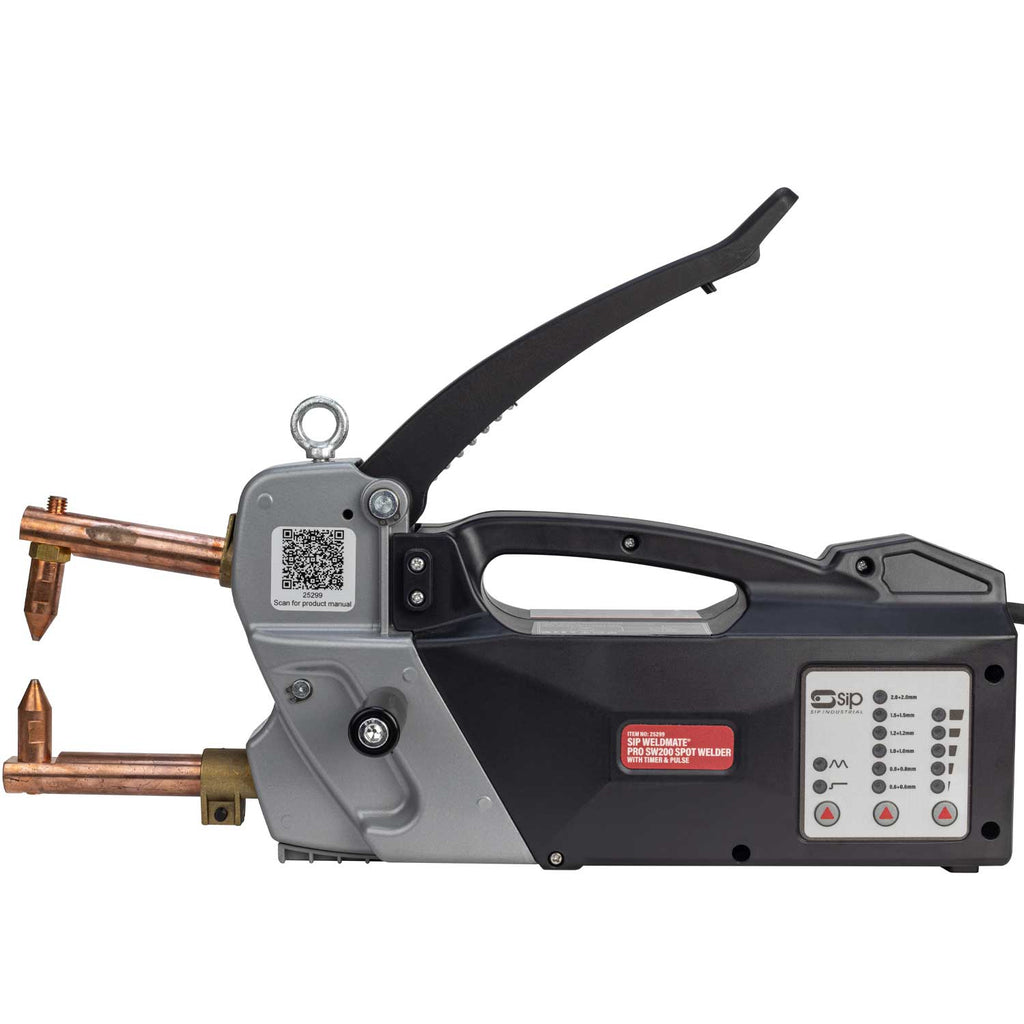

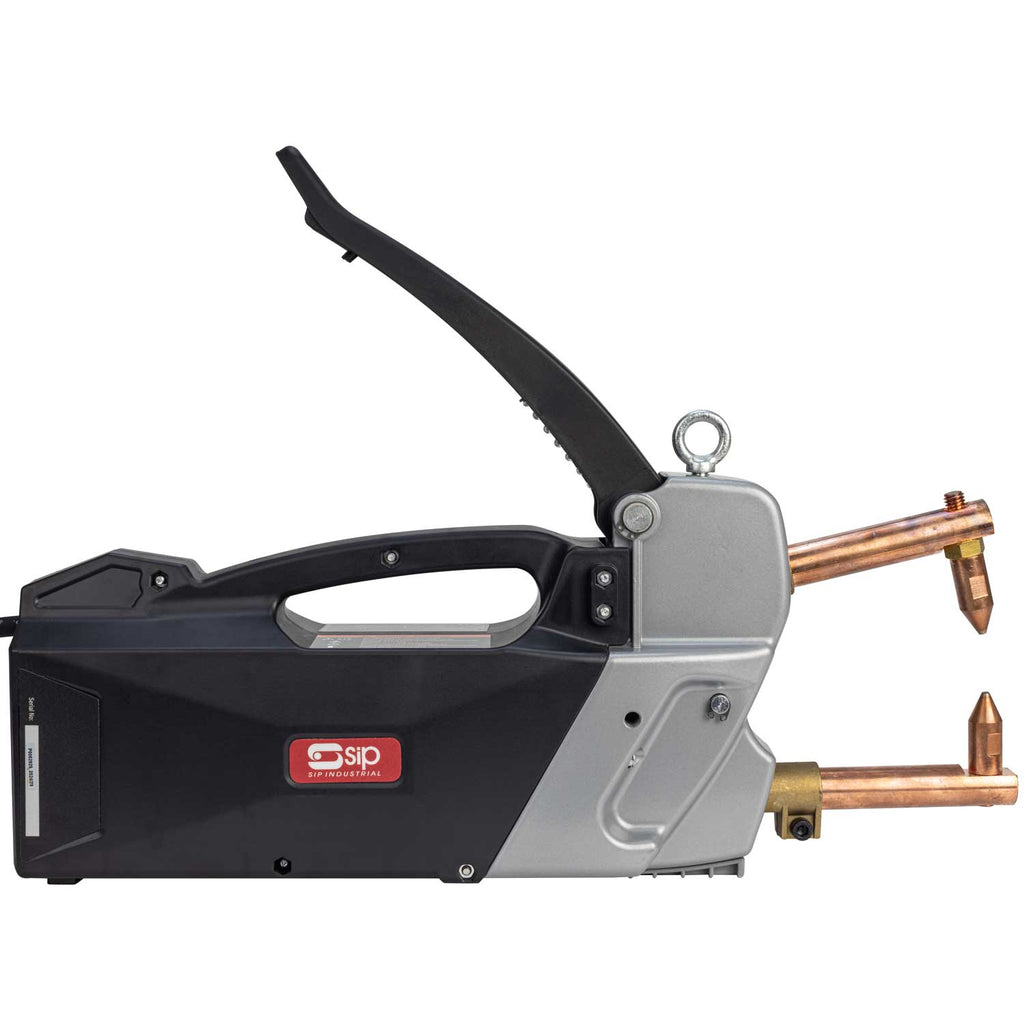

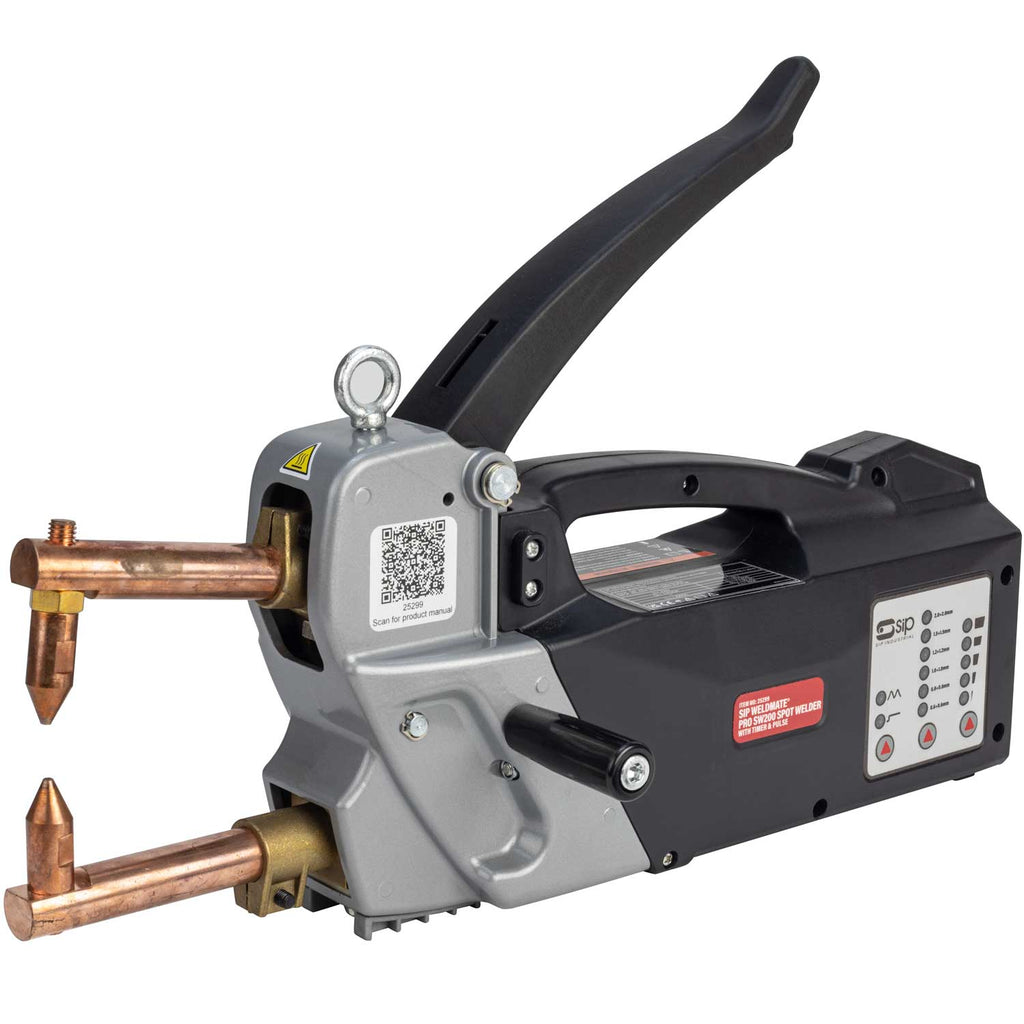

The SIP WELDMATE® PRO SW200 Spot Welder with Timer & Pulse is a portable resistance welder designed for sheet metal applications in automotive environments and light fabrication workshops.

Ideal for vehicle body panel repairs and light sheet metal tasks, this easy-to-use welder uses copper/chrome alloy electrodes to achieve a maximum welding thickness of 2mm - 2mm and features a microprocessor-controlled timer and pulse functions for consistent welds and enhanced penetration using a variety of material types.

For added flexibility the welder operates from a 13A supply. It is also available with a range of additional electrode arms sold individually or as a bodywork kit for greater application versatility.

Applications & uses: Perfect for automotive and garage environments. Ideal for sheet metal welding applications. Suitable for fabrication workshops. Suitable for mild steel, stainless steel and galvanised steel.

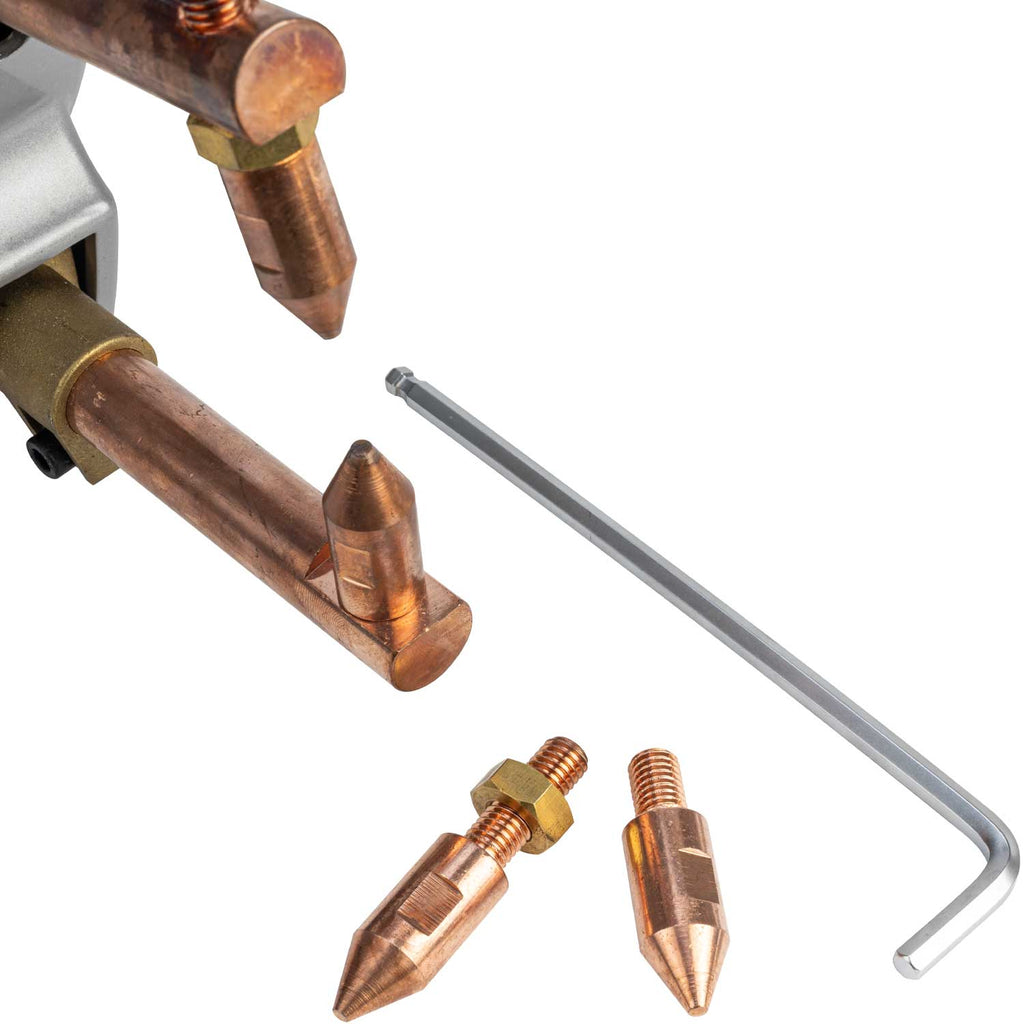

What's in the box?: 1x SIP WELDMATE® PRO SW200 Spot Welder with Timer & Pulse, 2x 20mm straight electrodes, 1x side handle with fixing bolt and hex key. User manual available via QR code sticker applied to product.

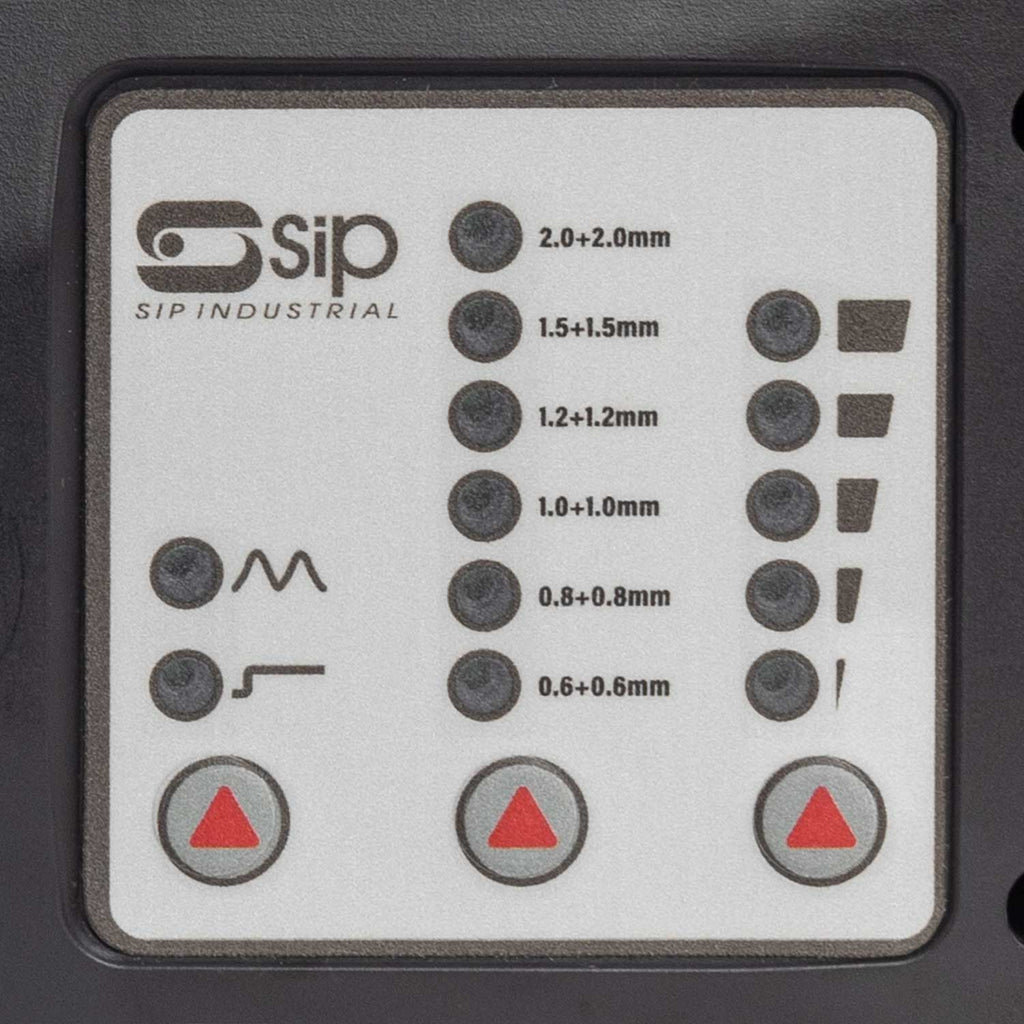

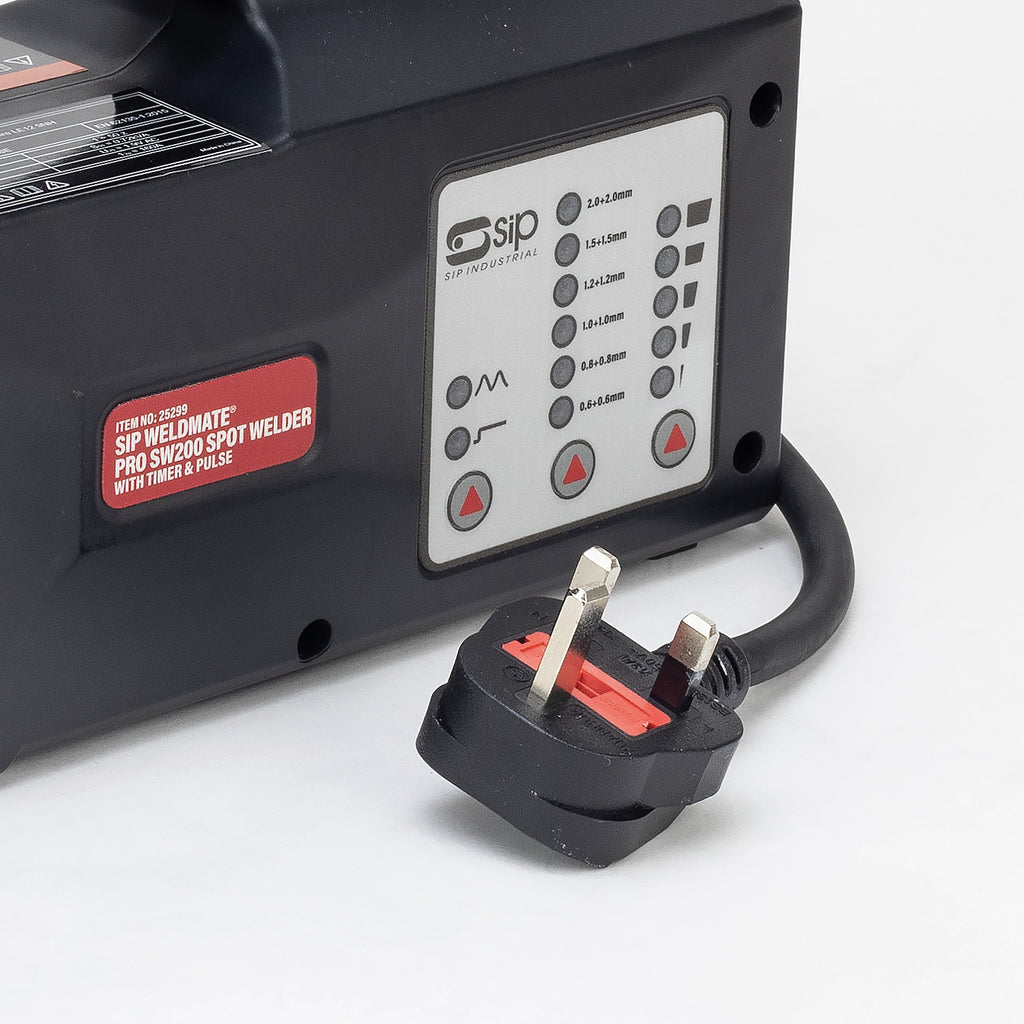

• INTUITIVE SOFT TOUCH CONTROL PANEL FEATURES ADJUSTABLE WELDING THICKNESS, TIMER & PULSE FUNCTIONS FOR ROBUST & REPEATABLE WELDING CAPABILITY IN A VARIETY OF APPLICATIONS: Maximum welding thickness of 2mm - 2mm with sufficient welding current output to achieve 4 welds per minute. A microprocessor-controlled timer function allows settings of 80-1800ms for precise and consistent welds. Pulse function allows spot welding of coated materials including Zintec, galvanised and nickel-plated. By applying a short burst of additional heat into the material, the welder can penetrate the coating before completing the weld. Suitable for mild steel, stainless steel and galvanised steel. Offers strong localised welds with minimal heat distortion to the surrounding sheet metal. Easy-to-use lever smoothly engages welding electrode tips for accurate welding performance. Supplied with a set of replacement 20mm copper/chrome electrodes.

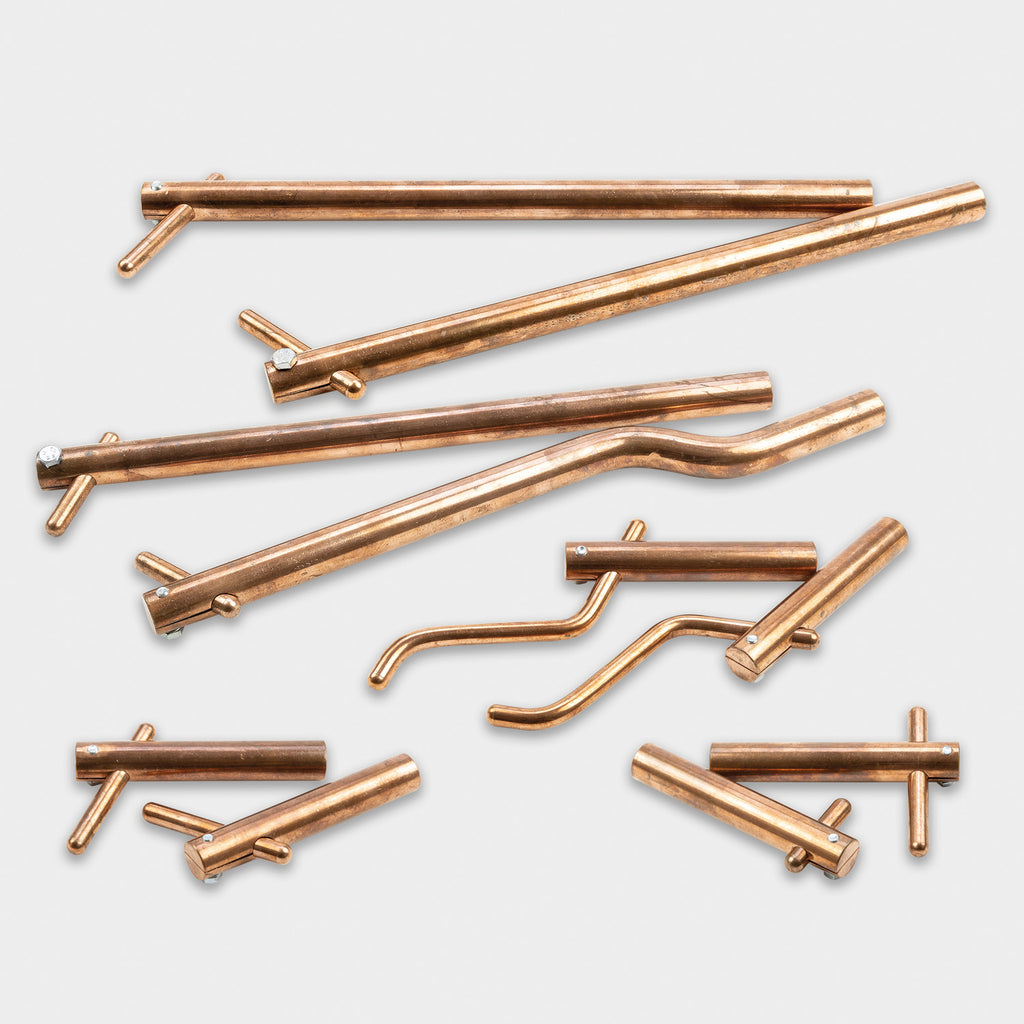

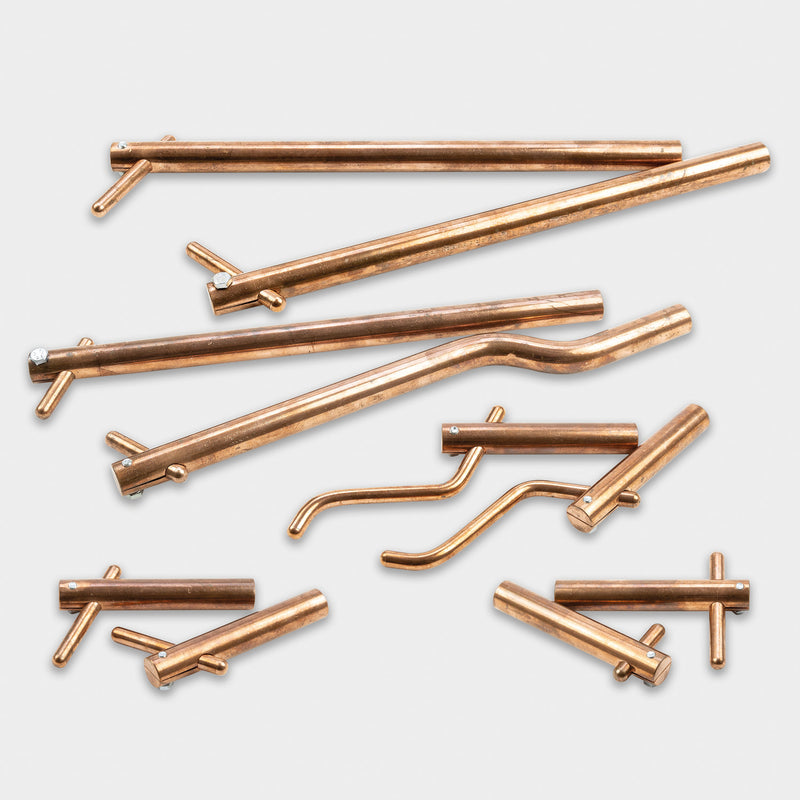

• ADDITIONAL ELECTRODES & BODYWORK KITS AVAILABLE FOR GREATER APPLICATION VERSATILITY: These easy-to-fit accessories are sold separately as individual parts or available as a bodywork kit. The 20mm electrode arms offer added dexterity for a variety of welding applications; 25413 SIP Spot Welder 120mm Arms with Straight Electrodes (? 20mm), 25412 SIP Spot Welder 120mm Arms with Offset Electrodes (? 20mm), 25414 SIP Spot Welder 350mm Arms with Offset Electrodes (? 20mm), 25410 SIP Spot Welder 350mm Restricted Access Arms with Offset Electrodes (? 20mm), 25411 SIP Spot Welder 120mm Arms with Swan Neck Electrodes (? 20mm), 25425 SIP Spot Welder 5pc Bodywork Kit (? 20mm) (for 25299)
• SIP 2-YEAR STANDARD SILVER WARRANTY

Technical Specification

• ITEM NO. 25299
• Input Supply: 230v (13A)
• Max. Welding Thickness: 2mm - 2mm
• Spot Duration: 80-180ms
• Welds Per Minute: 4 welds per minute
• Max. Electrode Force: 460N
