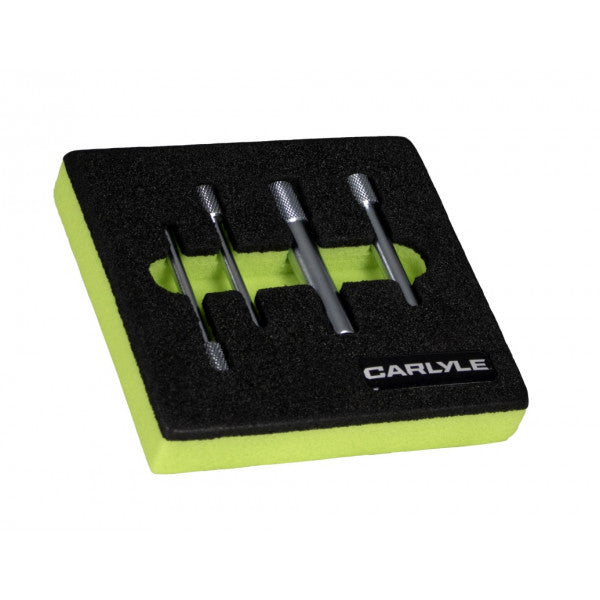

Carlyle Hand Tools 4 Pc Engine Locking Tool - Belt Driven PSA/Ford/Mazda/Mini/Vauxhall/Toyota - C4735A

FEATURES

• 8YH (DV4), DV4C (8HP/8HR), DV4TED (8HS), F6JA, F6JB, F6JD, D15, D15DT/LQJ (DV5RD), D15DT/LQJ (YHY)(DV5RD), D15DTH/LQP (DV5RC), D15DTH/LQP (YHZ/DV5RC), D15DTL/LQJ (YHW/DV5RE), DV5RC, DV5RD, DV5RE, UGCB, UGCC, UKJE, XUGA, XVGA, XWDD, XWGA, XXDD, YHR (DV5RUCD), YHS (DV5RCE), YHT (DV5RCF), YHV (DV5RUC), YHW (DV5RE), YHX (DV5RC), YHY (DV5RD), YHZ (DV5RC), Z2GA, ZTDA, ZTGA, ZTJA, ZTJB, ZTJC, ZTJD, ZTJE, 9H07, 9HD, 9HD (DV6C), 9HD (DV6CTED), 9HX, BHW, BHW (DV6FE), BHX, BHX (DV6FC), BHY, BHY (DV6FD), BHZ, BHZ (DV6FC), D4162T, D4162T DRIVe, D4164T, D4164T DRIVe, DV6ATED4 (9HX), DV6AUTED4 (9HX), DV6BTED4 (9HT/9HW), DV6BUTED4 (9HT), DV6C (9HC/9HD/9HL/9HR), DV6CM (9HG), DV6CTED (9HC/9HL/9HR), DV6CTED (9HD), DV6D (9HP), DV6DM (9HJ), DV6DTED (9HE/9HF/9HJ/9HP), DV6DTEDM (9HJ), DV6ETED (9HK/9HM), DV6ETEDM (9HK), DV6FC (BHX), DV6FC (BHZ), DV6FD (BHY), DV6FE (BHW), DV6TED4 (9HV/9HW/9HX/9HY/9HZ), DV6TED4B (9HS/9HV), DV6UTED4 (9HU), G8DF, T1DA, T1DB, T1GA, T1WA, T3DB, T3JB, UBGA, W16 D16(9HZ), W16 D16UO
• Citroen, Fiat, Ford, Mazda, Mini, Mitsubishi, Peugeot, Suzuki, Vauxhall/Opel, Volvo
• Citroen: Berlingo/ Berlingo First I/II, Berlingo III, Berlingo IV, C-Elysee, C1/C2, C3 Aircross, C3 I/II/First/Classic, C3 III/ C3 Picasso, C3 IV, C4/C4 II, C4 Aircross/ C4 Cactus, C4 III, C4 Picasso/Grand Picasso/II, C4 Space Tourer/Grand Space Tourer, C5 Aircross, C5 II/ C5 III, Dispatch/Jumpy IV, DS3/DS3 Cabrio, DS4/DS5, Nemo, Space Tourer, Xsara Picasso, Fiat: Scudo, Ford: B-MAX, C-MAX ('07), C-MAX ('15), EcoSport, EcoSport ('17), Fiesta ('04/'08), Fiesta (02), Fiesta (13), Focus ('04/'08), Focus ('13), Focus ('15), Focus ('19), Focus Active, Fusion, Grand C-MAX ('15), Grand Tourneo Connect ('14), Mondeo, Puma ('20), Tourneo Connect ('14), Tourneo Courier (14), Transit Connect ('14), Transit Courier ('14), Mazda: 2 (DE/DH)(O7-15), 2 (DY)(02-07), 3 (BK)(03-09), 3 (BL)(09-14), 5(CW), Mini: Clubman (R55)(07-14), Mini (r56/57)(06-15), Mitsubishi: ASX, Peugeot: 1007/2008, 107/206/206+/206 CC, 207/207 CC/208, 3008/3008 (09-16), 307/308/308 CC/308 (13-), 4008/5008 (09-17), 407/508, Bipper, Partner/Partner Origin/Ranch I/II, Suzuki: Liana (RH), SX4/SX4 Classic (RW), Vauxhall/Opel: Combo-E life, Crossland X (P17)(17-), Grandland X (A18)(17-), Volvo: C30, S40 (03-12), S60 (10-), S80 (06-), V40 (12-), V50, V60, V70 (07-)
• Equivalent to OE Reference: 0193-A, 0194-A, 0194-B, 0194-C, 21-260, 21-262, 21-263, 303-732, 303-734, 303-735, 49 JE02 018, 49 JE02 020, 49 JE02 021, 999-7122, 999-7169, 999-7233, EN-52137, EN-52138, KM-6349

INFO

• C4735A contains the tools required for timing belt removal and installation on the PSA 1.4/1.6 Hdi diesel engines which are also fitted in Ford models under Duratorq (TDCi) identification.
