Description

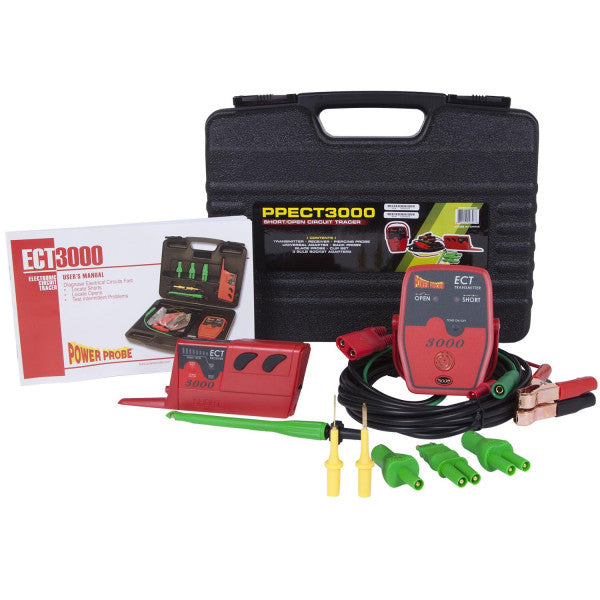

The ECT3000 Circuit Tracker is a versatile diagnostic tool designed to help automotive professionals efficiently locate and diagnose open and short circuits in vehicle wiring systems. By transmitting a polarized 4kHz signal, it simplifies troubleshooting by enabling quick detection of problematic circuits without disassembling complex wiring harnesses. Key Features: Short Circuit Tracking: Pinpoints shorts and provides directional guidance with a polarized signal. Open Circuit Tracking: Detects breaks or interruptions in the wiring and follows the signal across obstacles like carpets or panels. Adjustable Sensitivity: Allows users to fine-tune the detection range for precise diagnostics. Clear Feedback: Offers both visual LED indicators and audible alerts for easy interpretation of circuit status. Extended Range: The 6m transmitter cable ensures accessibility across large vehicles. Safety and Protection: Operates within safe voltage and current limits, avoiding damage to sensitive electronics. Auto Shutoff: Conserves battery life by turning off the receiver after 10 minutes of inactivity. Specifications: Transmitter Voltage Range: 6V to 48V DC. Receiver Power: 2 AAA batteries. Signal Frequency: 4kHz. Temperature Limits: 50°C operating, 70°C storage. Humidity Limit: 80% non-condensing. Altitude: Functional below 2000m. Applications: Locating short circuits in automotive wiring systems. Tracking open circuits or wiring breaks. Identifying intermittent electrical issues.
Diagnosing and testing vehicle ground circuits.
FEATURES
- Signal Locking will show the correct direction to a short to ground
- Signal distance bar indicates distance height from short to ground or open circuits
- LED light on receiver illuminates the work space area
- Longer 10-minute Auto shut off time
INFO
- short circuit tracking
- ground circuit tracking
TECHNICAL DATA
| Operating Voltage (Transmitter) | 6V-48V DC |
| Current Consumption (Transmitter) | <200mA |
| Operating Voltage (Receiver) | 2 AAA batteries |
| Signal Frequency | 4kHz polarized signal |
| Circuit Testing Modes | Open circuit tracking |
| Operating Temperature | Up to 50°C |
| Storage Temperature | Up to 70°C |
| Maximum Humidity | 80% non-condensing |
| Altitude Limit | <2000m |
| Signal Detection | Indicates short and open circuits using visual and audio cues |
| Sensitivity Adjustment | Adjustable for varying signal strengths |
| Auto Shutoff | Receiver turns off after 10 minutes of inactivity |
| Accessories Compatibility | Standard 4mm banana jack connectors for custom adapters |
| Cable Length | 6m transmitter power cable for extended reach. |
