Description

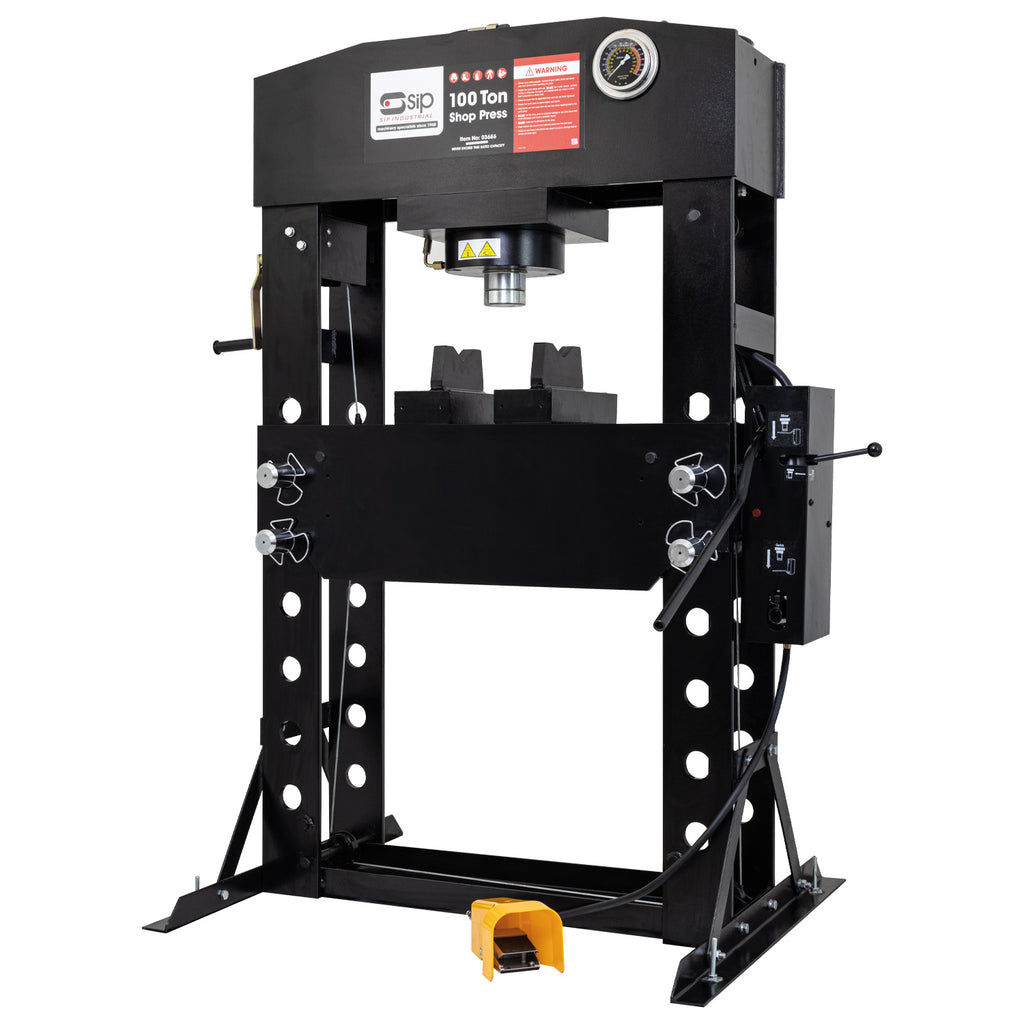

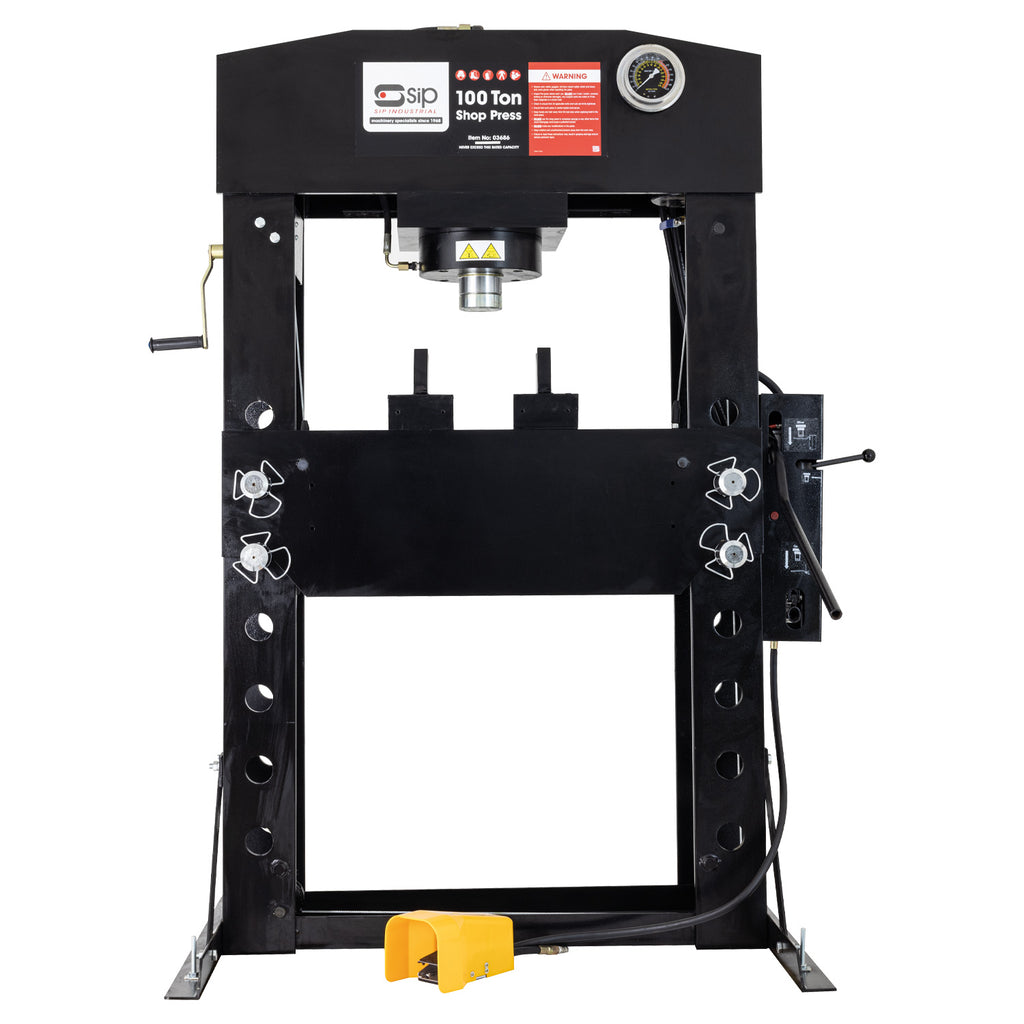

The SIP 100 TON Shop Floor Press is perfect for garage and workshop applications, such as bending, straightening, riveting or bonding, forming and assembling. It is particularly suited for easy removal and installation of bearings, wrist pins, universal joints and pulleys.
A heavy-duty steel frame with pneumatically-assisted press provides exceptional durability and long service life, while a fully adjustable workbed offers increased versatility.
FEATURES
- 93mm to 993mm work range and a 300mm ram stroke
- Ideal for bending, bonding, straightening applications
- Bearing, wrist pin, universal joint or pulley removal
- Fully adjustable workbed for improved versatility
- Heavy-duty steel frame for increased durability

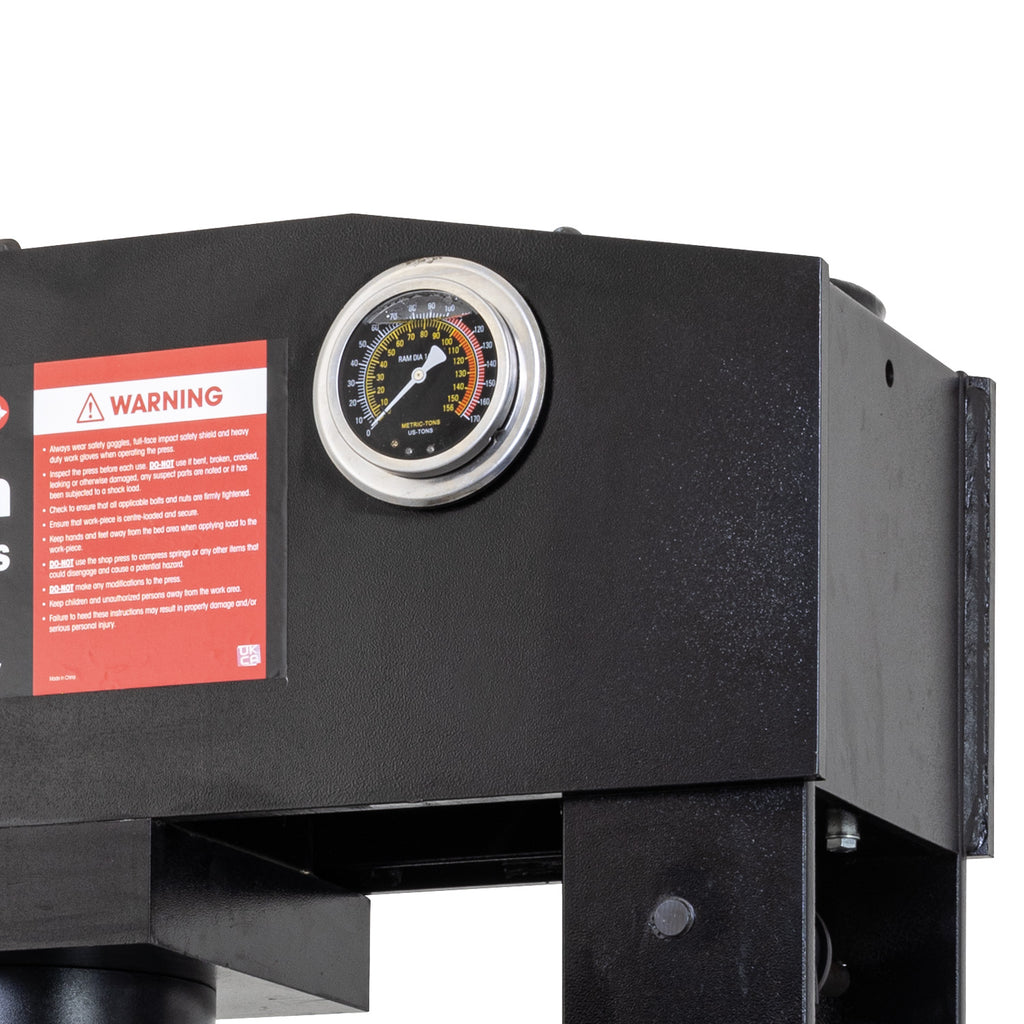

- Integrated Glycerine-filled manometer
WARRANTY
- 2 Years
TECHNICAL DATA
| Bed Width | 787mm |
| Air Inlet | 1/4" NPT |
| Ram Stroke | 300mm |
| Press Capacity | 100 TON |
| Press Type | FLOOR |
| Press Operation | Pneumatic |
| Working Range | 93mm - 993mm |
| Max. Air Pressure | 108psi (7.5bar) - 123psi (8.5bar) |
| Product Height (mm) | 1850 |
| Product Width (mm) | 1000 |
| Product Depth (mm) | 1250 |
| Net Weight (kg) | 662 |
| Pack Height (mm) | 2030 |
| Pack Width (mm) | 420 |
| Pack Depth (mm) | 1150 |
| Gross Weight (kg) | 701.29 |
| Parcel or Pallet | Pallet |
