Description

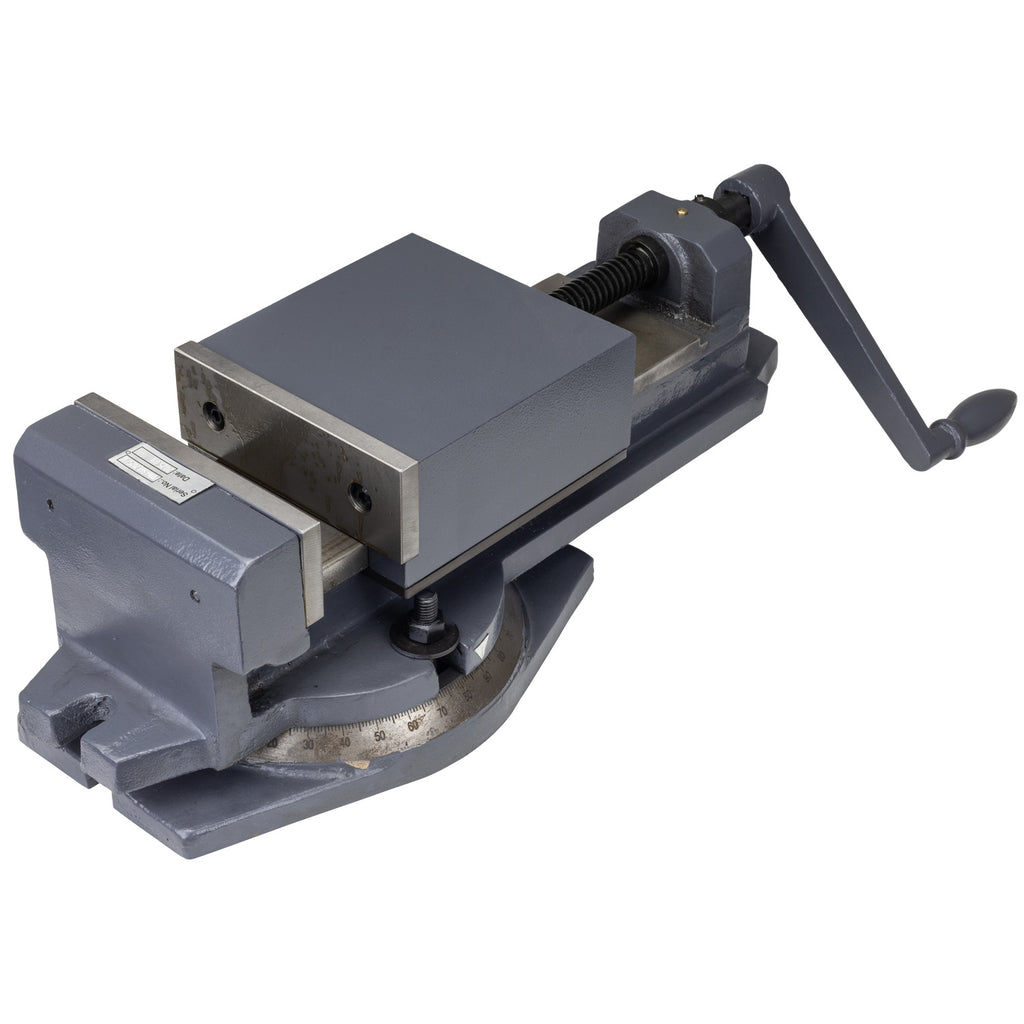

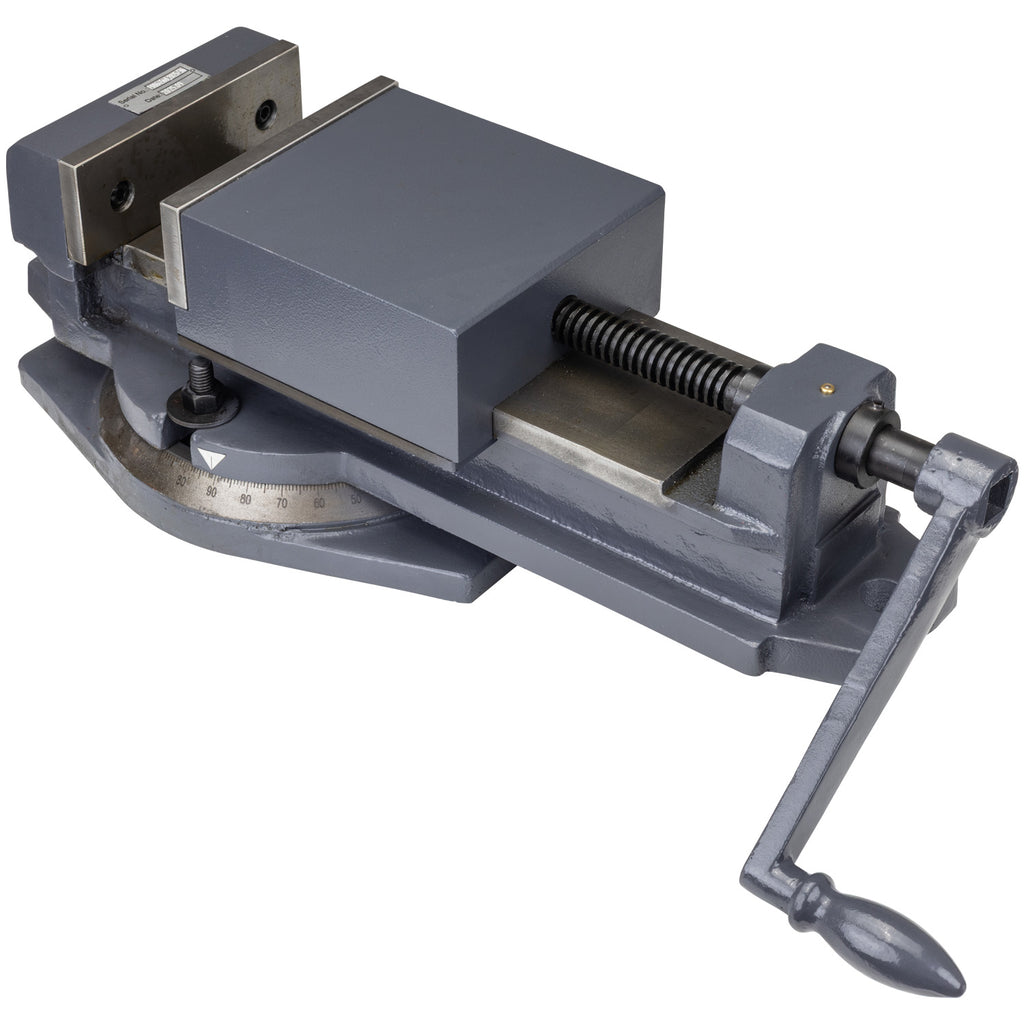

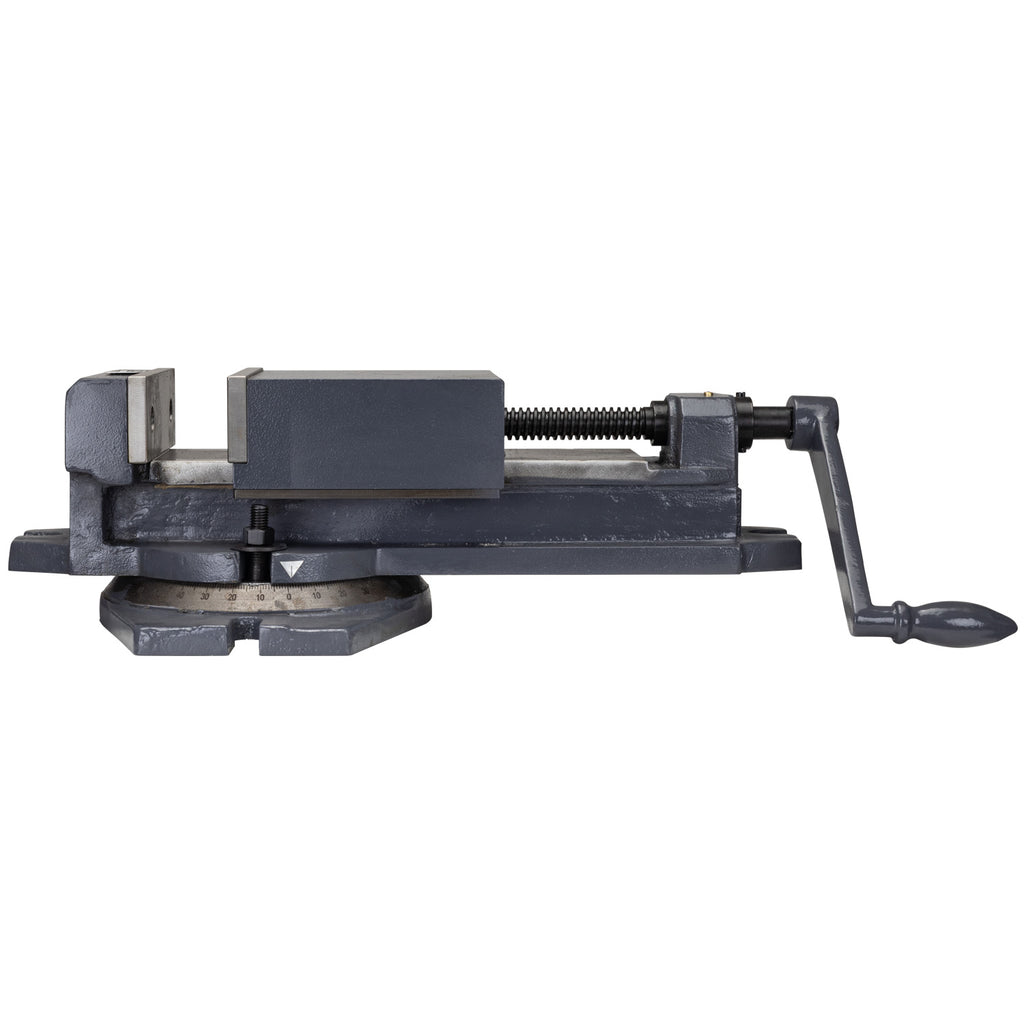

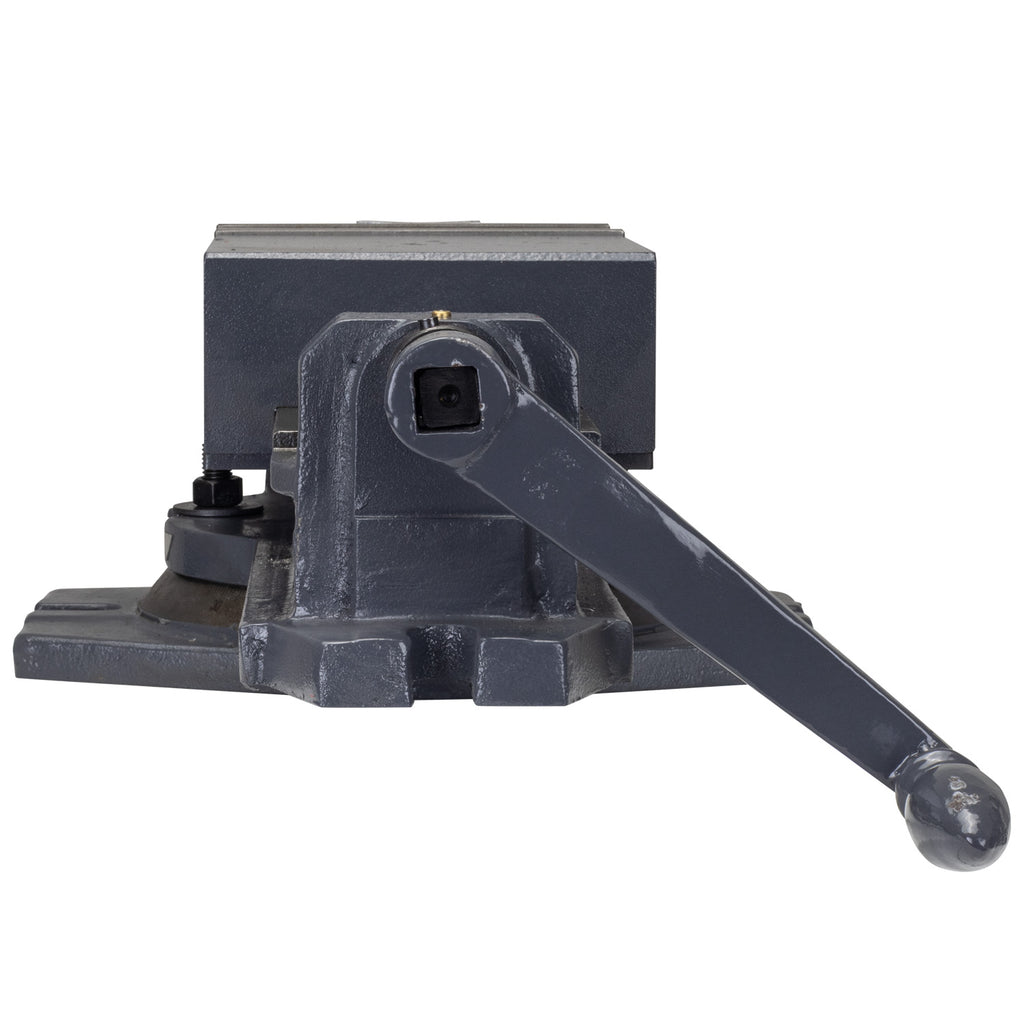

The SIP 6" Swivel Machine Vice enables simple horizontal 0° to 360° rotation, meaning workpieces do not need to be unclamped to be repositioned. This helps to reduce the set-up time required when machining, maintains drilling accuracy and improves tool access.
Offering maximum versatility in professional metalworking and fabrication, this vice is compatible with the SIP F25-GB 8-Speed (01719), SIP F32-ID Vari-Speed (01720) and SIP F40-IDA Vari-Speed (01721) Industrial Floor Pillar Drills.
FEATURES

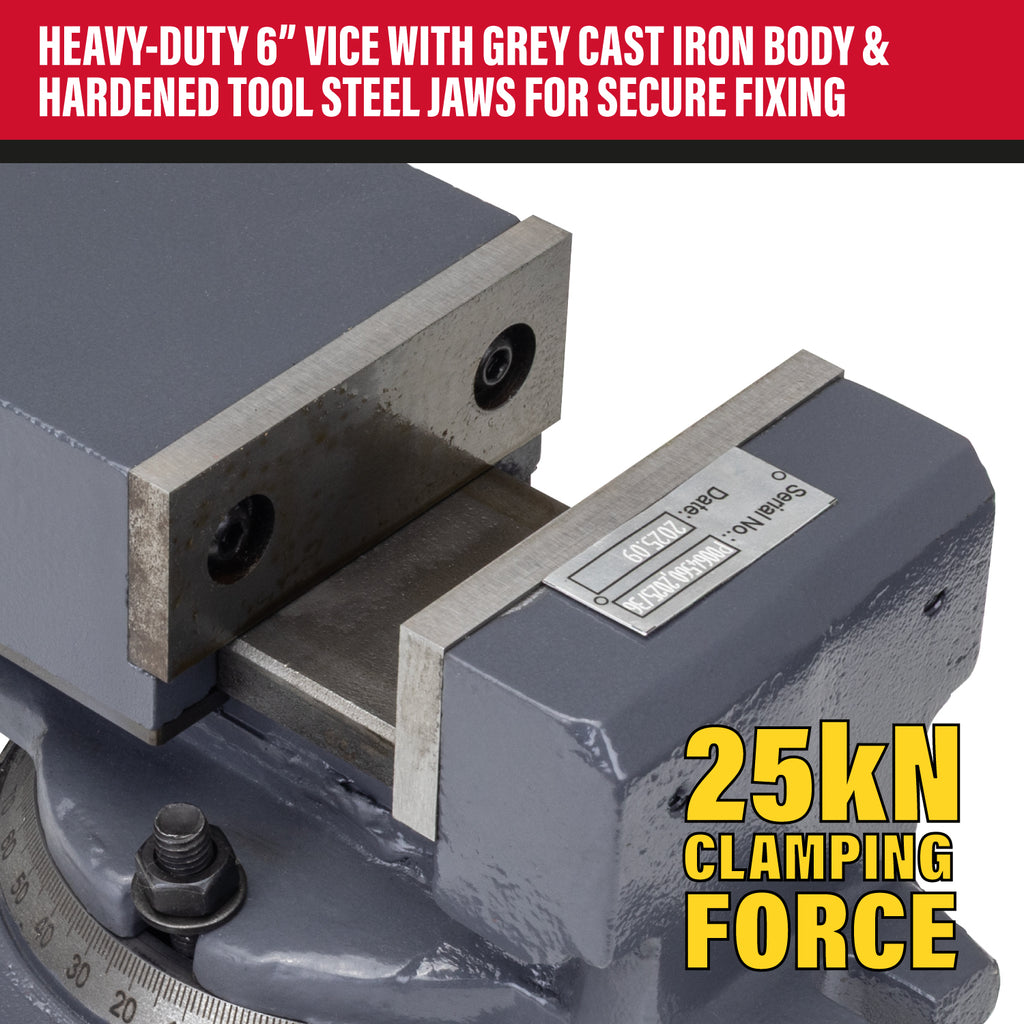

- Heavy-duty 6" machine vice with grey cast iron body and hardened tool steel jaws

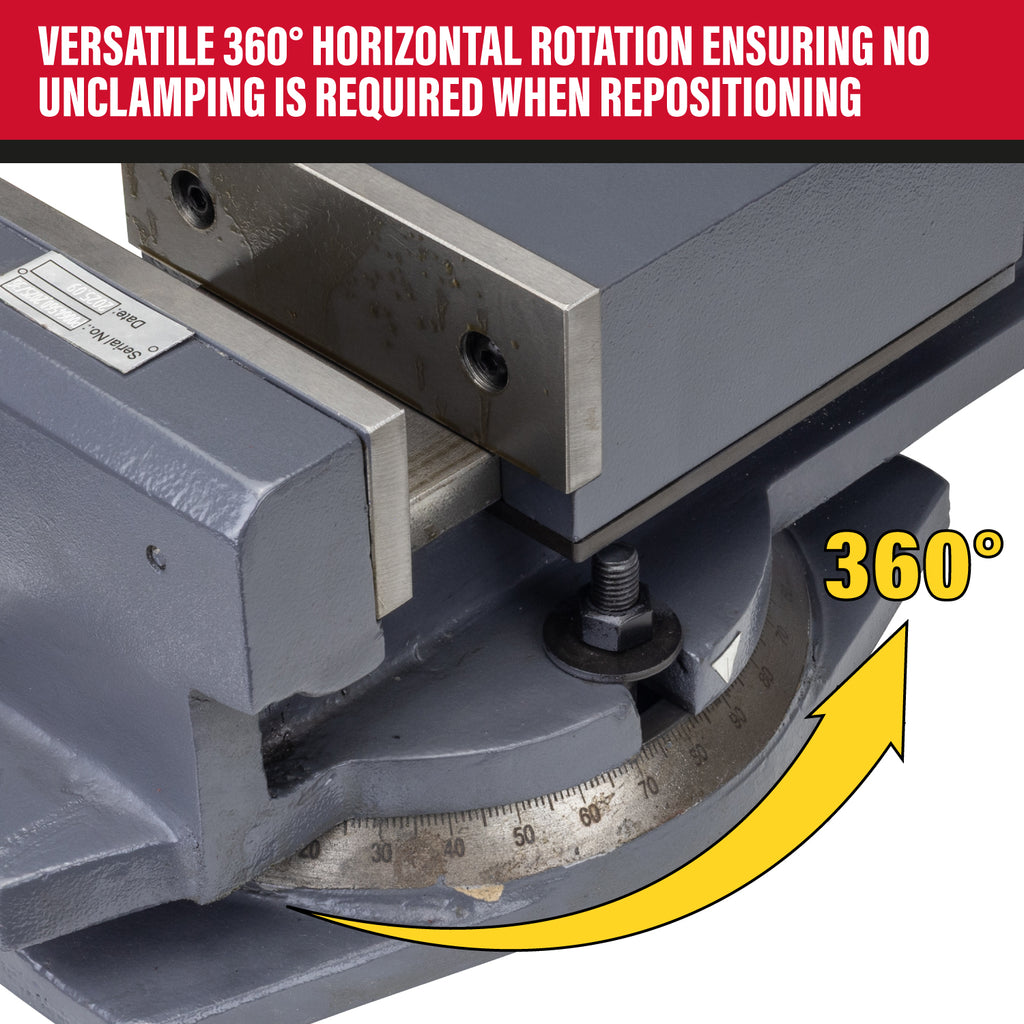

- Swivel base allows 0° to 360° rotation without unclamping the workpiece
- Adjustable design reduces set-up time, maintains accuracy and improves access
- Angle gauge for precise set-up for accuracy in complex and repetitive machining
- Compatible with complete SIP Industrial Floor Pillar Drills (01719, 01720, 01721)
- Perfect for use in professional metalwork and fabrication workshops
APPLICATIONS
- Ideal for professional metalwork and fabrication workshops
- Ideal for drilling ferrous and non-ferrous metals including mild steel, aluminium, copper, brass, stainless steel, cast iron and wrought iron
- Metal Fabrication: drilling holes in steel plates and box sections
- General Engineering: creating precise holes for bolts, pins and shafts in various metal components
- Production & Assembly: suitable for milling, grinding and light machining, slotting and face or end milling
CONTENTS
- 1x SIP 6" Swivel Machine Vice
TECHNICAL DATA
| Base Size | 11.5" (292mm) x 8.4" (214mm) |
| Jaw Width | 6" (152mm) |
| Jaw Opening | 6" (152mm) |
| Jaw Depth | 2" (51mm) |
| Clamping Force | 25kN |
| Vice Height | 6" (152mm) |
| Base Type | Swivel |
| Composition | Grey cast iron (body), hardened tool steel (jaws) |
| Mounting Hole Size | 18mm |
| Accuracy / Parallelism | 0.05mm / 100mm |

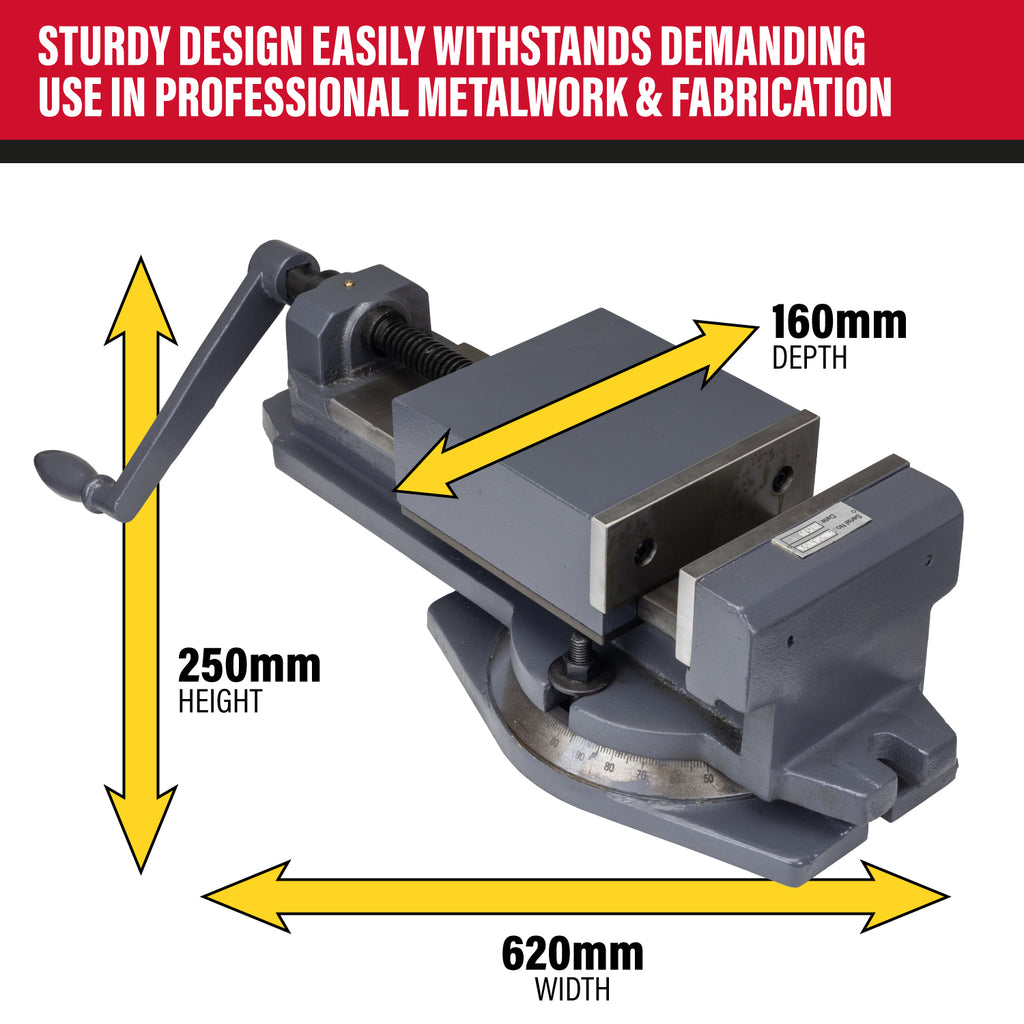

| Product Height (mm) | 250 |
| Product Width (mm) | 620 |
| Product Depth (mm) | 160 |
| Net Weight (kg) | 40 |
| Pack Height (mm) | 260 |
| Pack Width (mm) | 440 |
| Pack Depth (mm) | 220 |
| Gross Weight (kg) | 41 |
| Parcel or Pallet | Parcel |
