Description

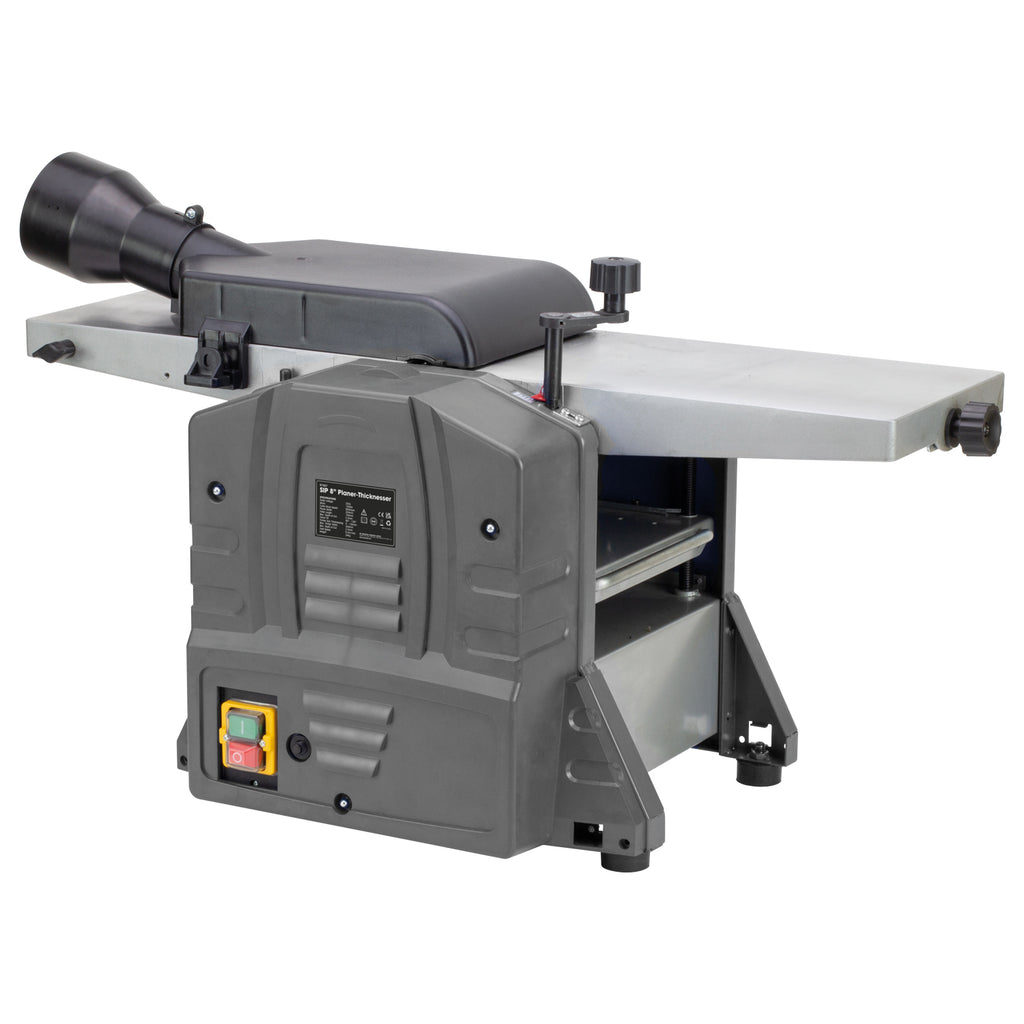

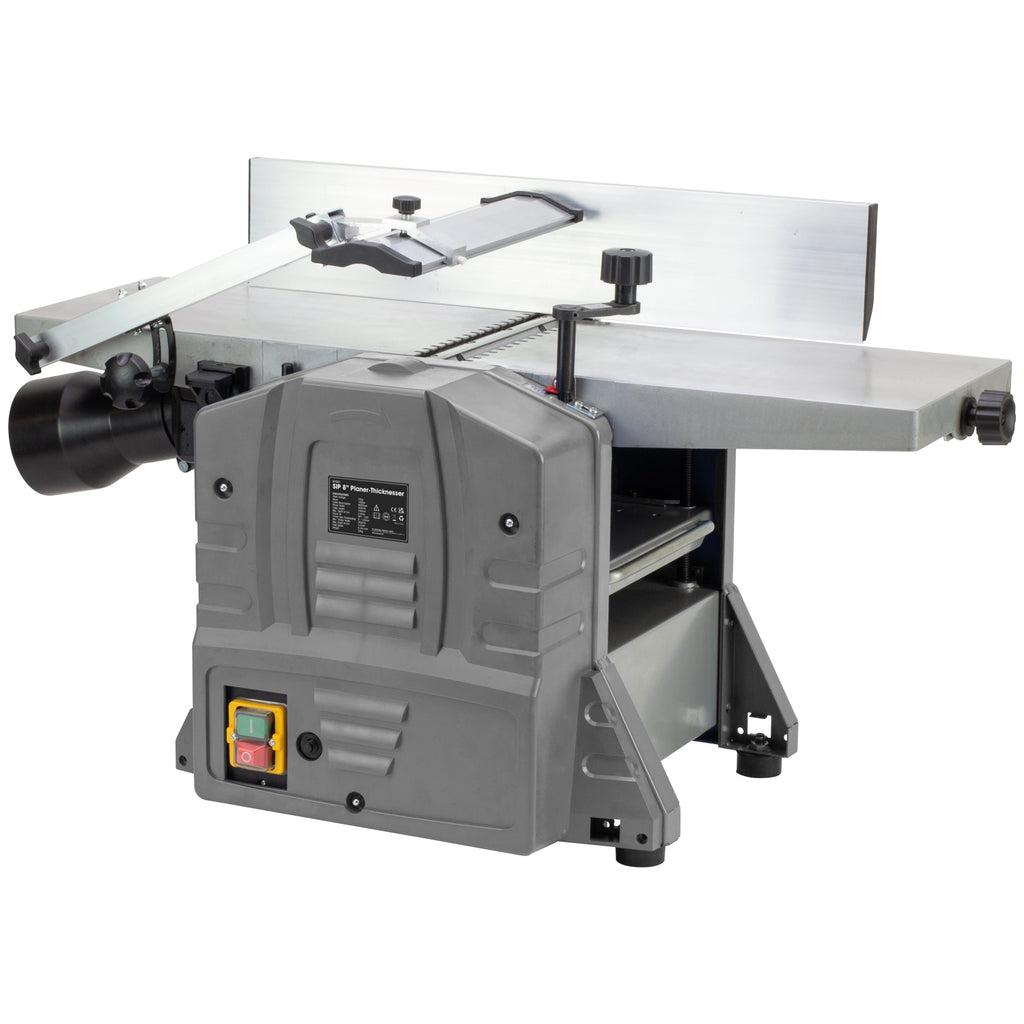

The SIP 8" x 5" Planer Thicknesser is designed for efficient planing and trimming of workpieces to uniform thicknesses and width, comfortably removing large amount of material in one pass, making sure that all boards, planks, and surfaces are consistent.

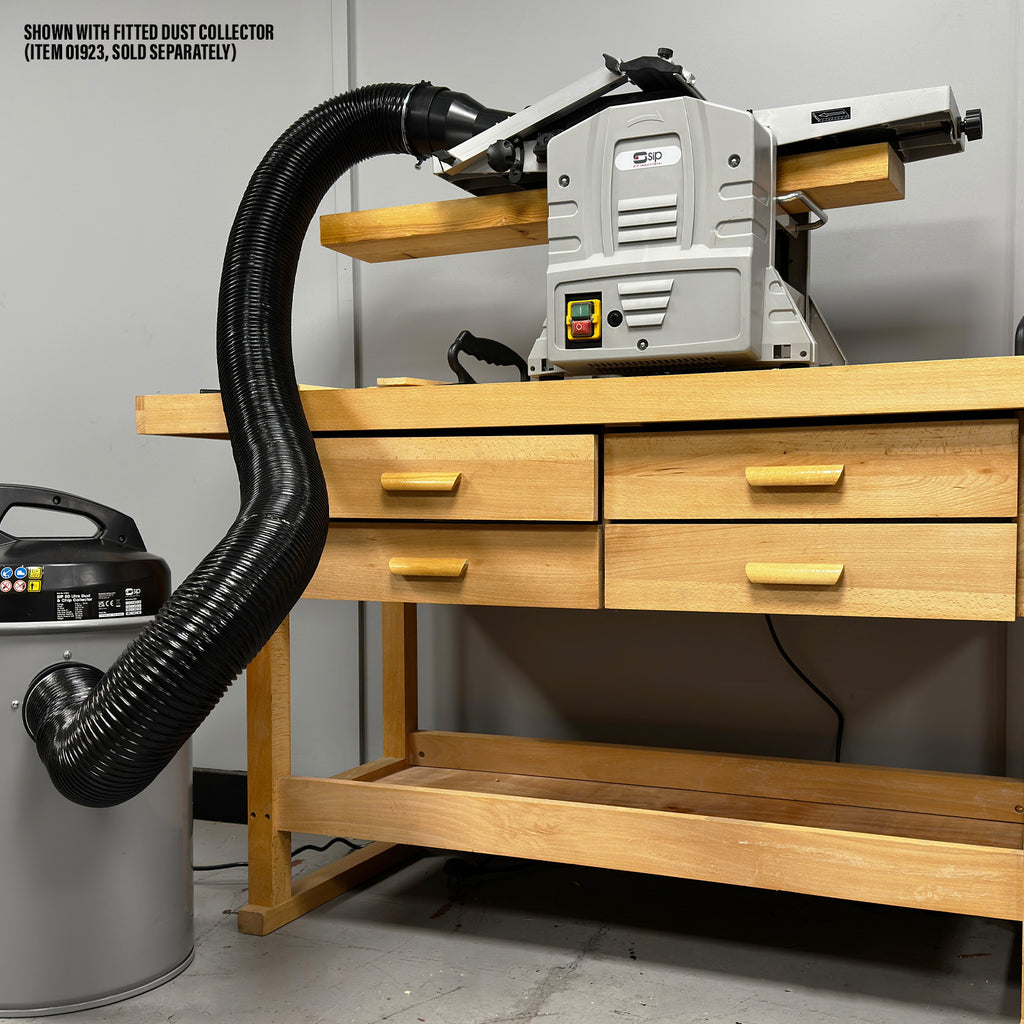

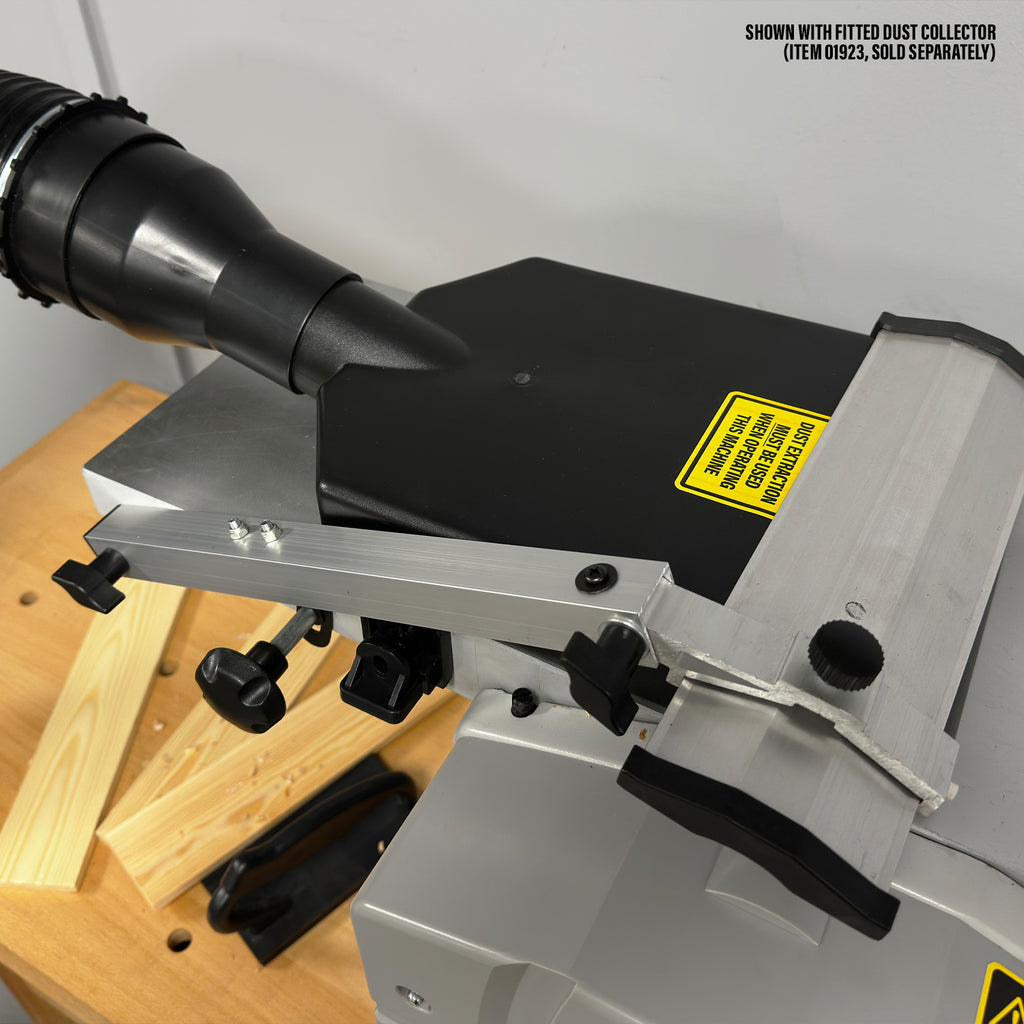

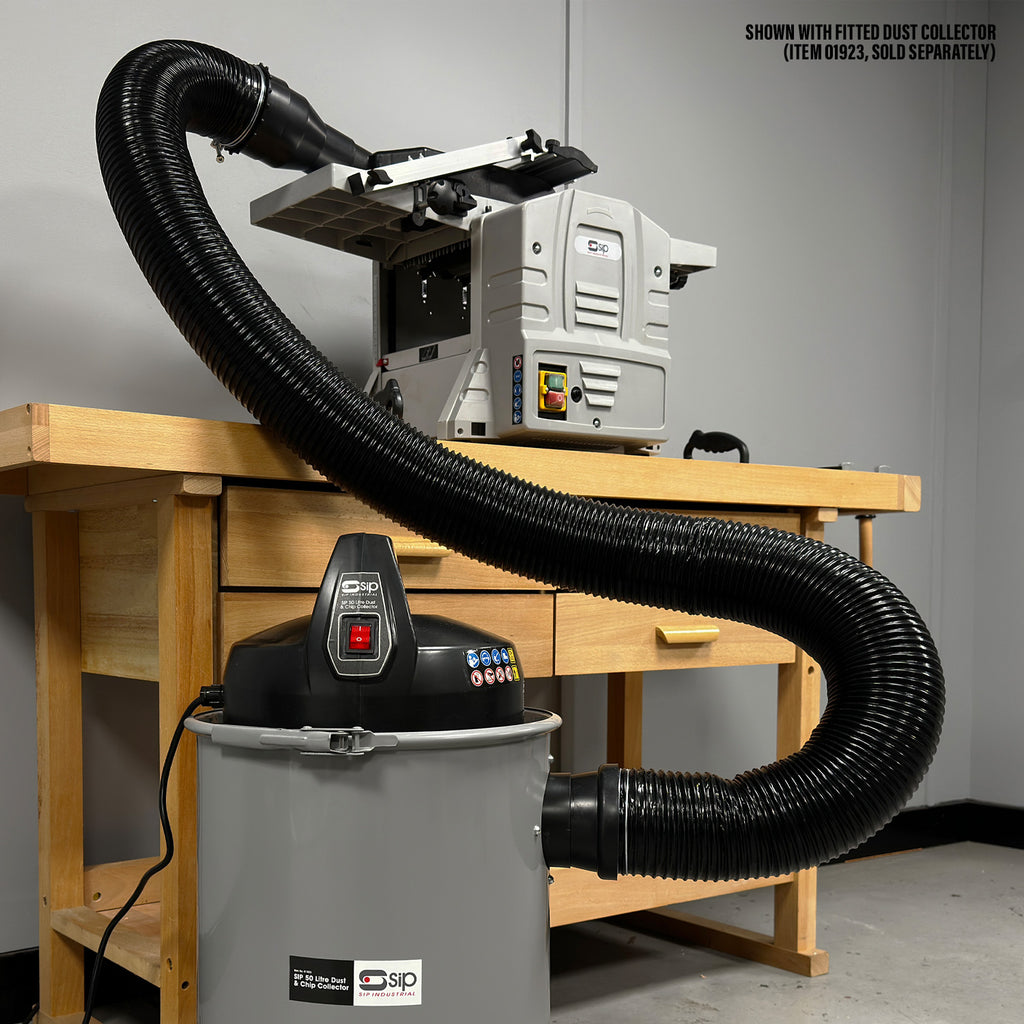

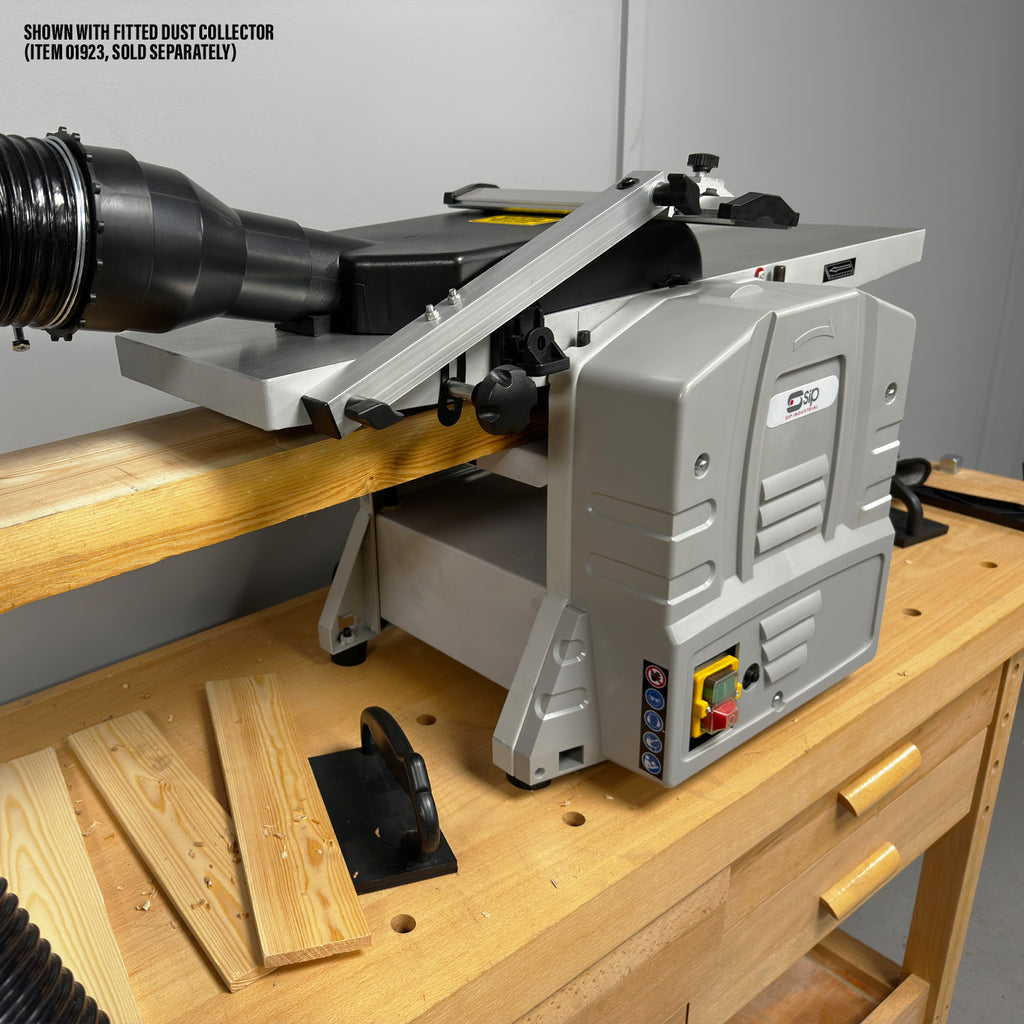

For machine longevity, this planer thicknesser must be operated with an attached dust extractor. Recommended extractors for this machine are the SIP 50ltr Dust & Chip Collector (01923) or SIP 1hp Portable Single Bag Dust Collector (01963).
FEATURES
- 204mm planer width and 2.5mm max. cutting depth

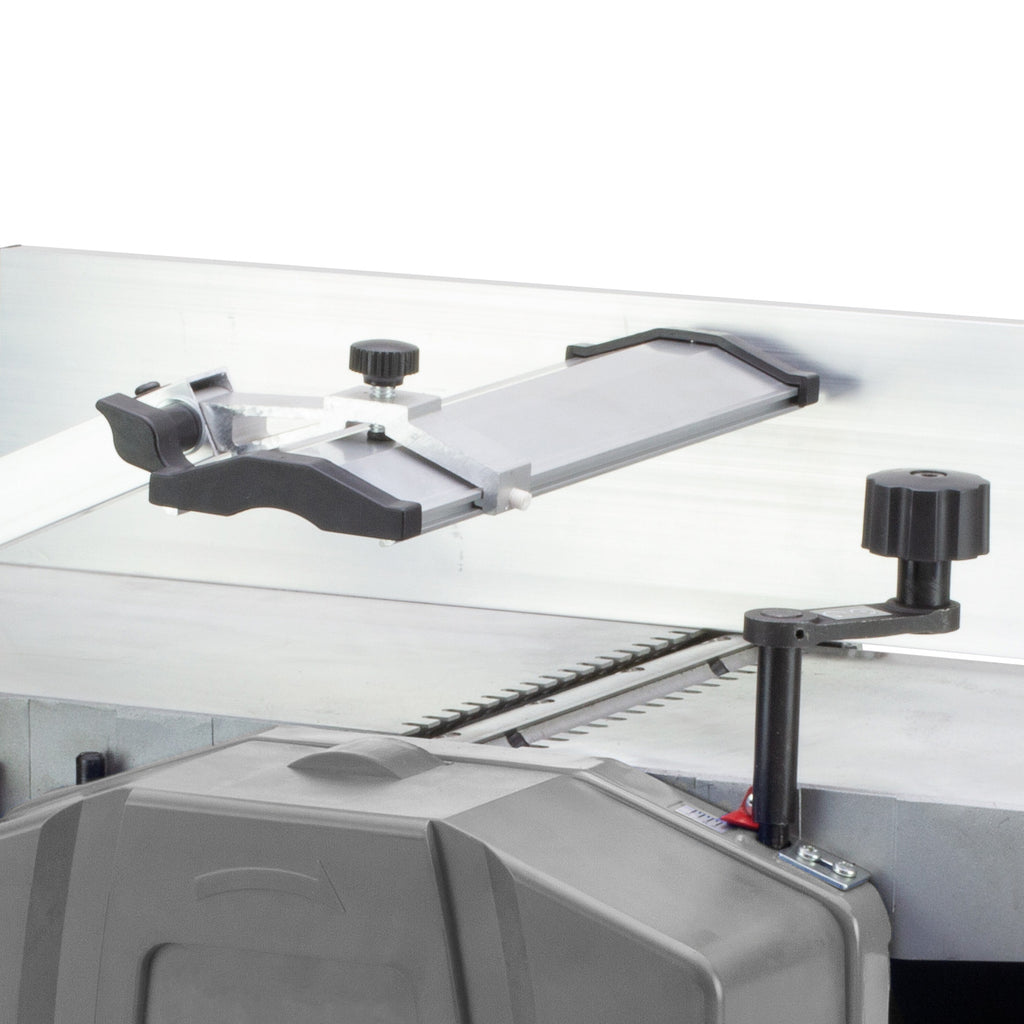

- Adjustable 90° to 135° fence tilting for versatility

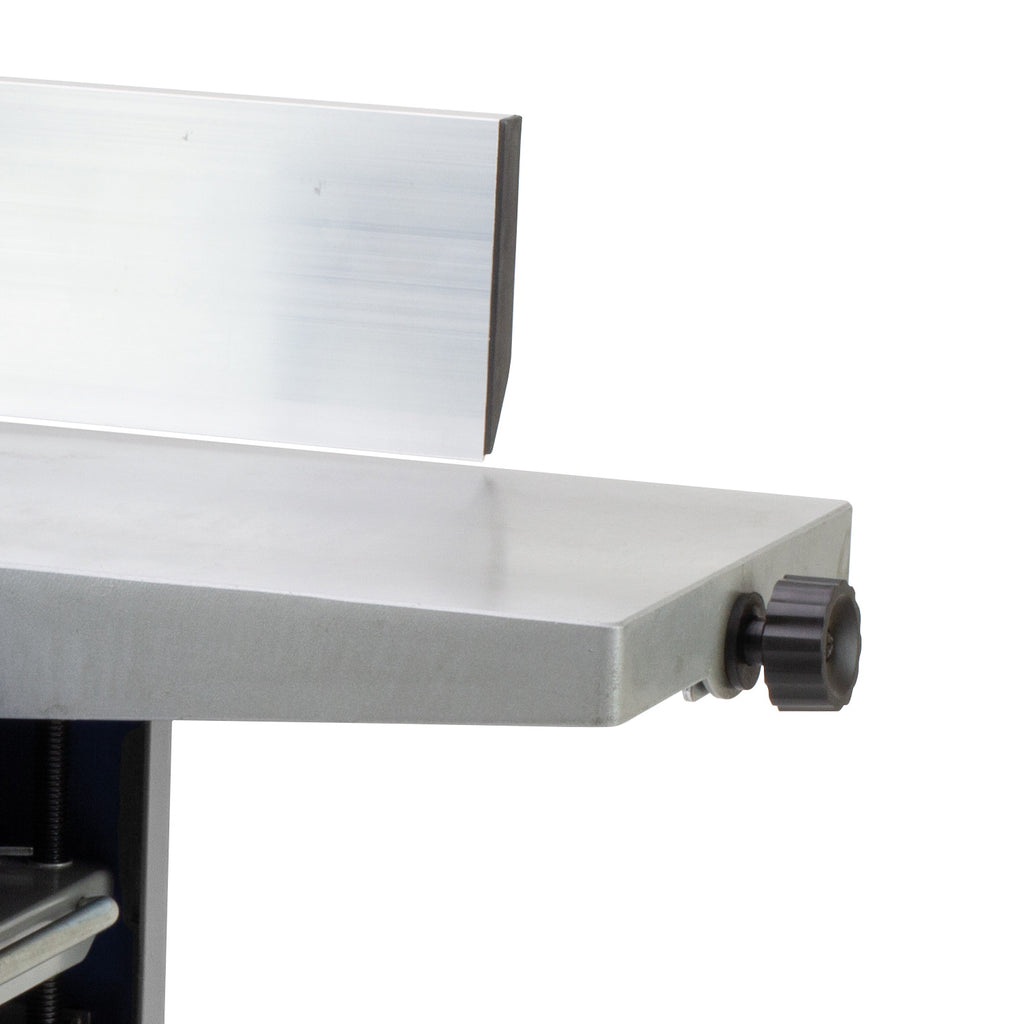

- Quality machine-surfaced cast aluminium table tops
- Power-fed rollers for a consistently smooth finish
- Perfect for both square and chamfered planing
WARRANTY
- 2 Years
TECHNICAL DATA
| Input Supply | 230v (13A) |
| Motor Power | 1.5kW (2hp) |
| Table Height | 355mm |
| Noise Level | 105db(A) |
| Cutter Block Speed | 9000rpm |

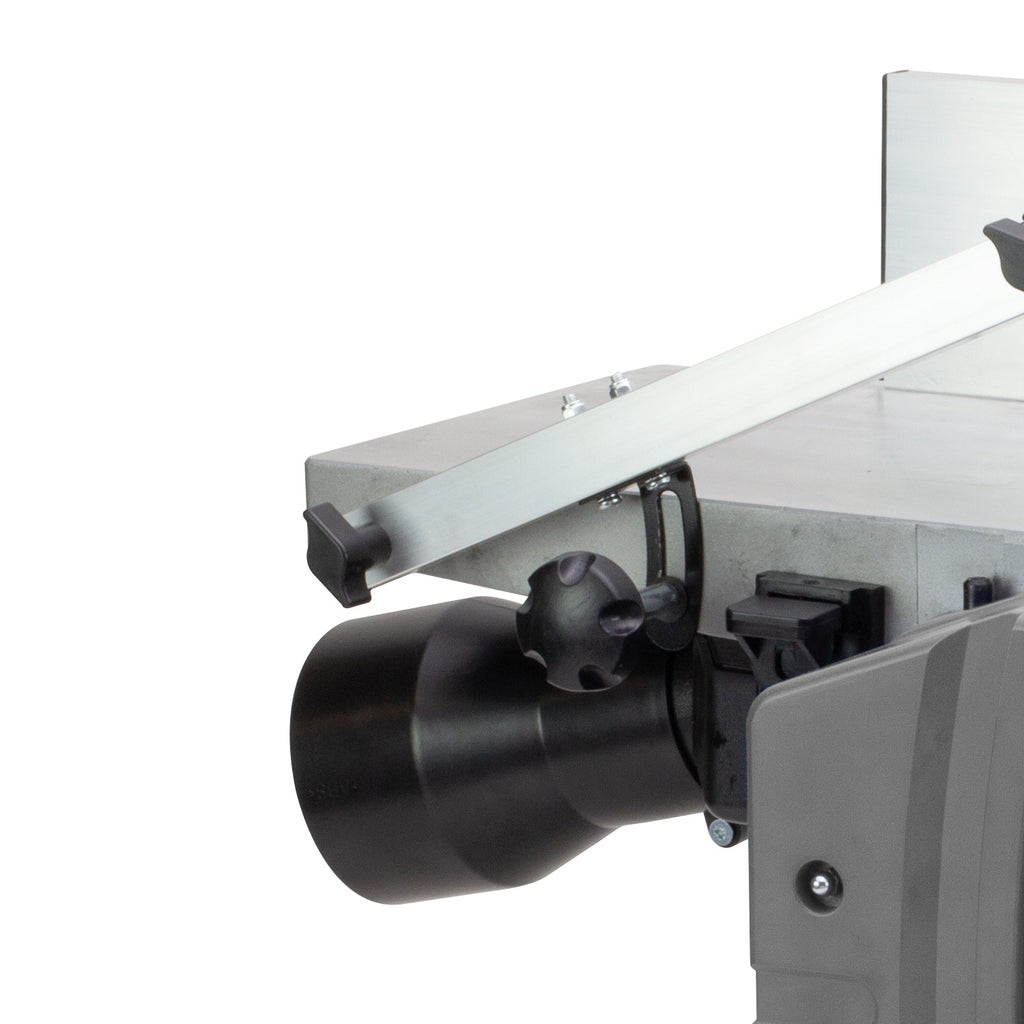

| Dust Extraction Outlet (ID/OD) | 55mm / 62mm |
| Dust Extraction Adaptor (ID/OD) | 63mm / 68mm |
| Planer Width | 204mm |
| Table Length | 740mm |
| Fence Tilting | 90° - 135° |
| Max. Cutting Depth | PLANING; 2.5mm / THICKNESSING; 2mm |
| Timber Size Range | 5mm - 120mm |
| Max. Timber Width | 204mm |
| Product Height (mm) | 490 |
| Product Width (mm) | 980 |
| Product Depth (mm) | 460 |
| Net Weight (kg) | 24 |
| Pack Height (mm) | 850 |
| Pack Width (mm) | 430 |
| Pack Depth (mm) | 460 |
| Gross Weight (kg) | 27.76 |
| Parcel or Pallet | Parcel |
