Description

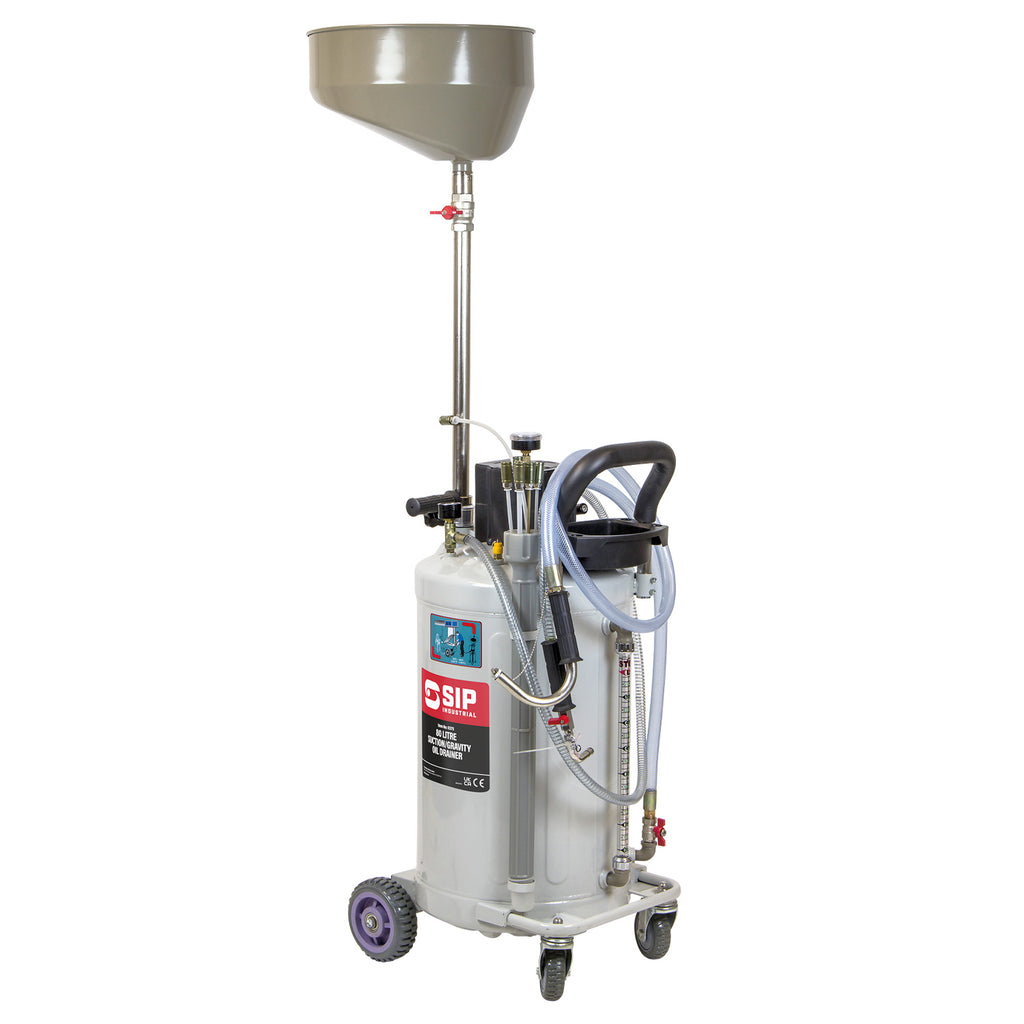

The SIP 80ltr Suction / Gravity Oil Drainer is designed for clean and efficient collection of waste oil from engines, gearboxes and assemblies in professsional garages and automotive workshops.
With a heavy-duty 80ltr steel tank and adjustable height 20ltr collection tray with 360° rotation, the drainer is ideal for quick and easy oil changes and also supports proper disposal of oil in compliance with environmental guidelines.
Air supply required for vacuum and suction pressure (5CFM / 6-8bar, min. 100ltr air receiver) and oil discharge (10psi (0.7bar) - 15psi (1bar)).
FEATURES
- Heavy-duty 80ltr steel collection tank for high-volume oil collection
- 20ltr collection tray with 360° rotation to minimise work area spills

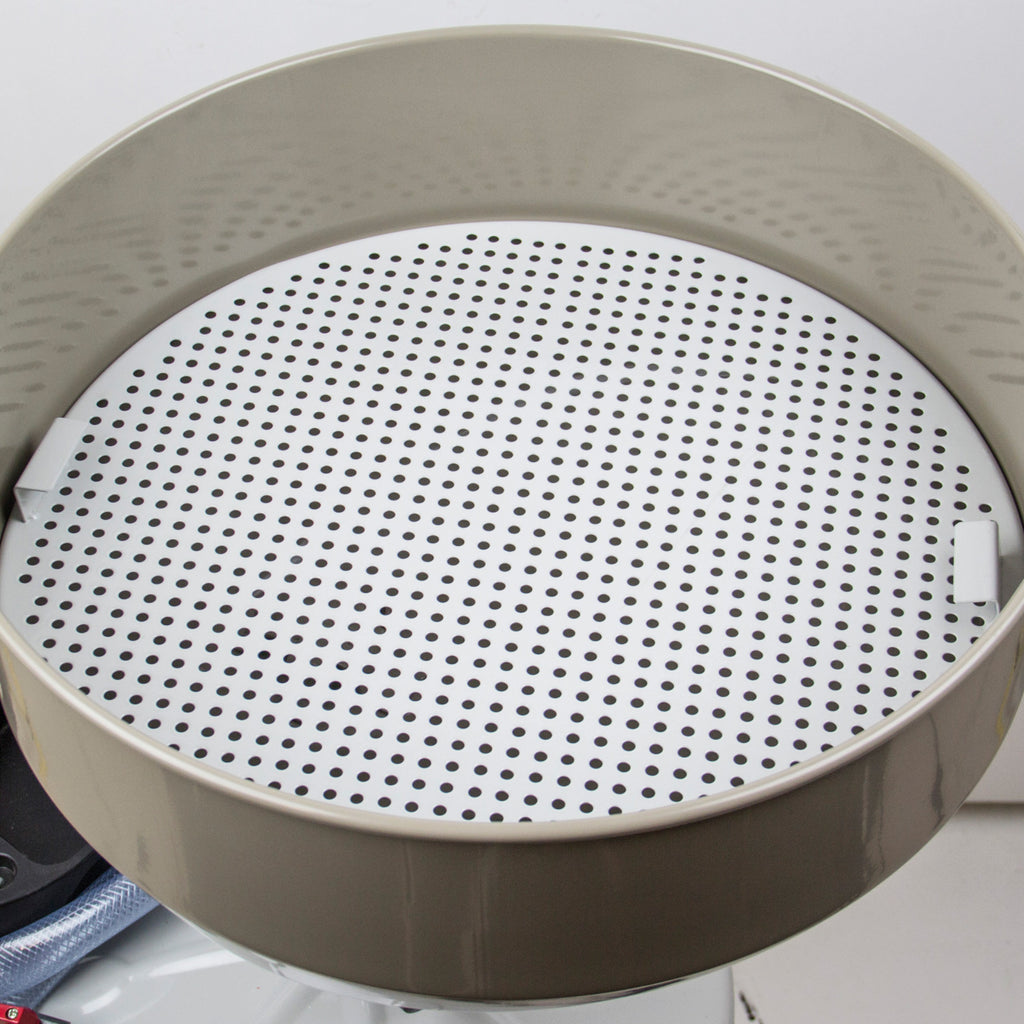

- Pre-filter plate catches debris and contaminants before it enters the tank
- Adjustable 1190mm to 1810mm height for various vehicles and lifting set-ups
- Wheel-mounted with swivel castors for sturdy movement and easy positioning
- Integrated oil level indicator for visual monitoring to prevent overfilling
APPLICATIONS
- Ideal for efficient collection of waste oil from engines, gearboxes and assemblies
- Perfect for professional garages and automotive workshops
WARRANTY
- 2 Years
TECHNICAL DATA
| Air Inlet | 1/4" |
| Operation Type | Suction / Gravity |
| Collection Tray Capacity | 20ltr |
| Collection Tank Capacity | 80ltr |
| Collection Tray Height | 1190mm - 1810mm |
| Discharge Pressure | 10psi - 15psi (0.7bar - 1bar) |
| Discharge Hose Length | 2.2mtr |
| Working Temperature (Engine Oil) | 40°C to 60°C |
| Suction Pressure | 87psi - 145psi (6bar - 10bar) |
| Suction Hose Length | 2.2mtr |
| Vacuum Gen. Valve / Air Requirement | 5CFM / 6bar - 8bar (min. 100ltr air receiver) |
| Net Weight (kg) | 26 |
| Pack Height (mm) | 1010 |
| Pack Width (mm) | 550 |
| Pack Depth (mm) | 450 |
| Gross Weight (kg) | 29.5 |
| Parcel or Pallet | Parcel |
