Description

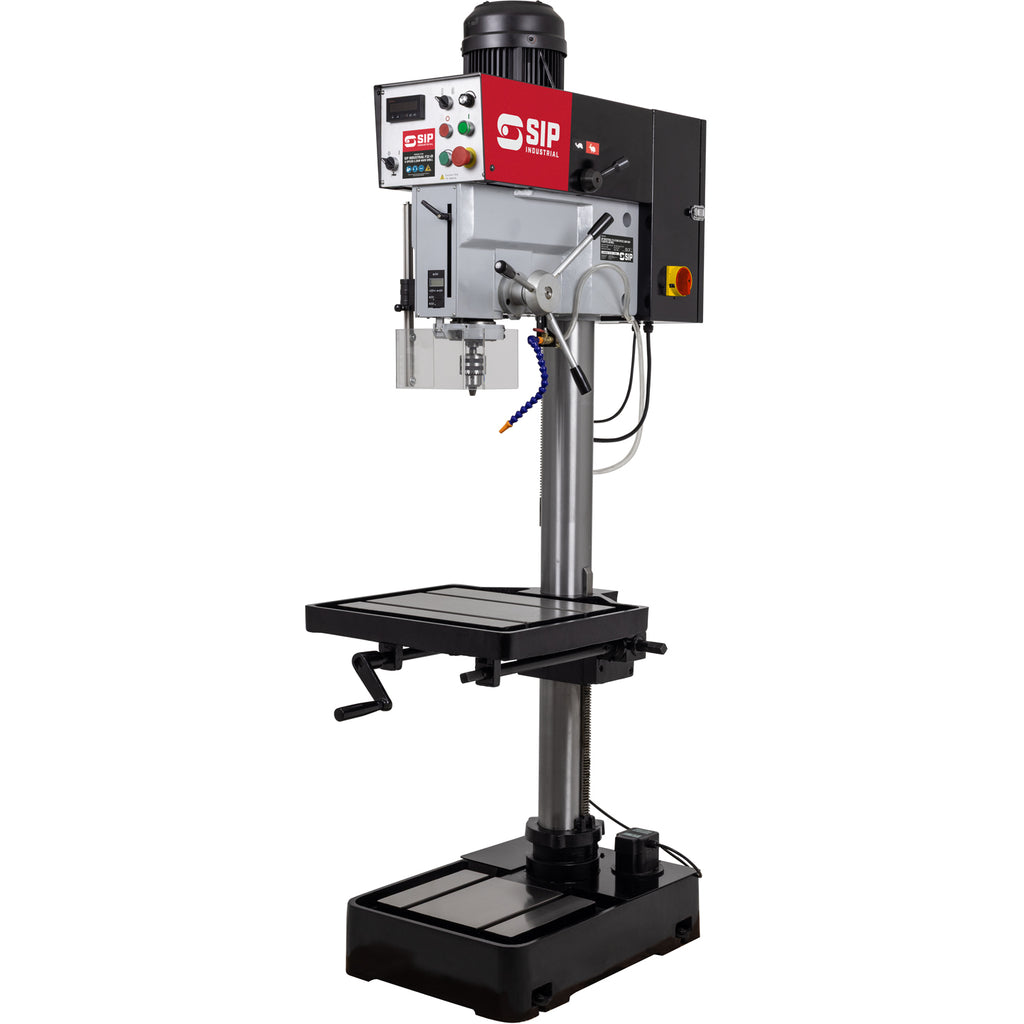

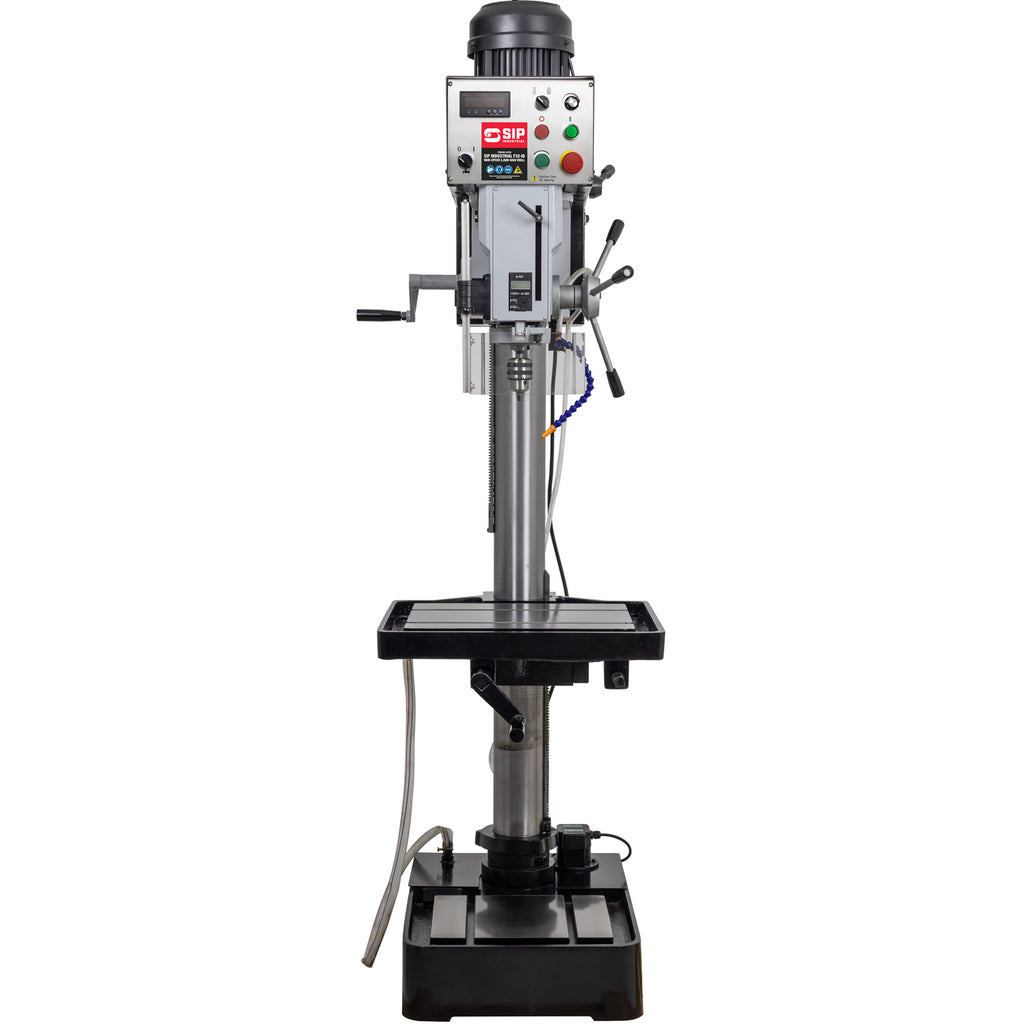

The SIP Industrial F32-ID Vari-Speed 2.2kW 400v Floor Pillar Drill is a heavy-duty pillar drill specifically designed for professional metalwork and fabrication workshops.
Featuring a variable frequency drive inverter transmission, the drill delivers high torque output across a consistent 65rpm - 2000rpm spindle speed for powerful and precise drilling of up to max. ? 32mm. A tapping function allows threading of high-quality screw holes up to max. ? 19mm.
Engineered for demanding production environments, this adjustable and heavy-duty drill also features enhanced safety features to protect operators.
FEATURES

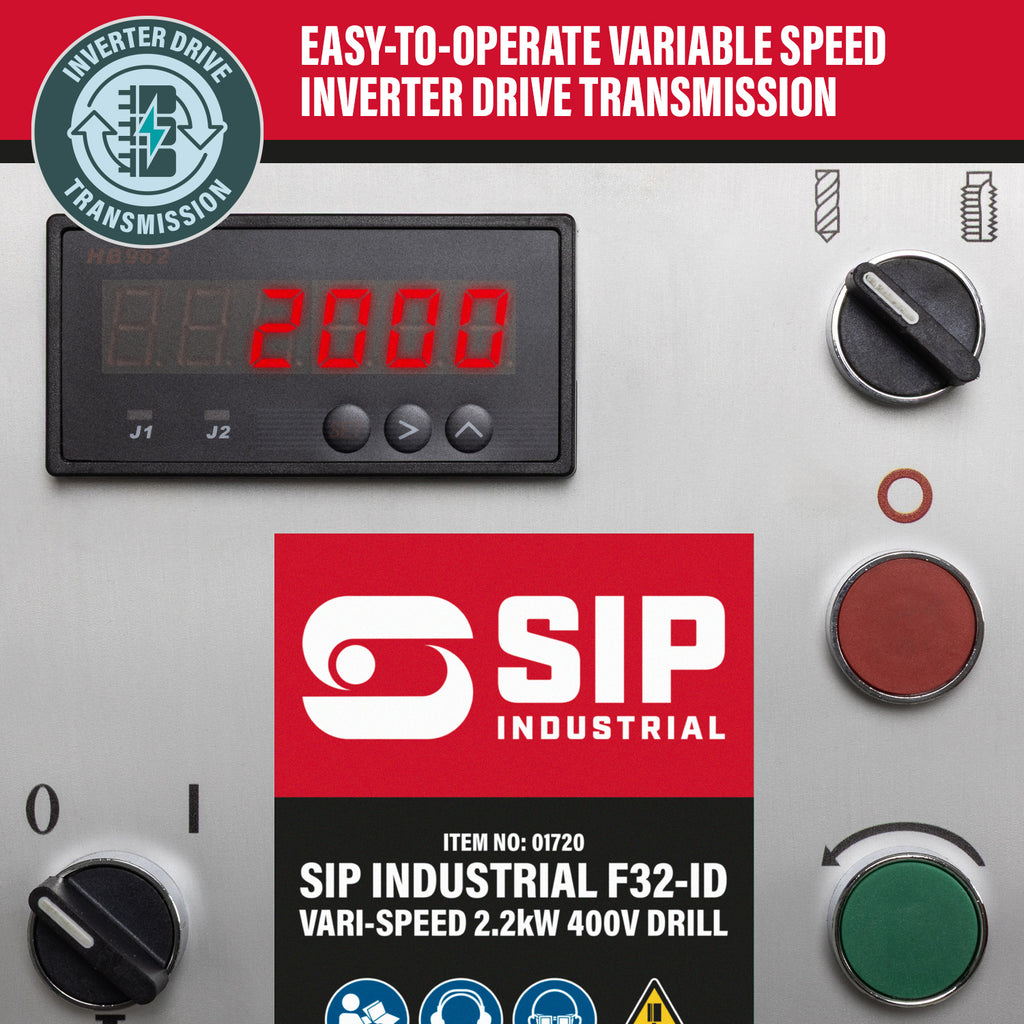

- Variable frequency inverter drive transmission with wide 65-2000rpm speed range
- Infinitely variable control dial for precise spindle speed setting
- High torque output for consistent drilling power of up to max. ? 32mm

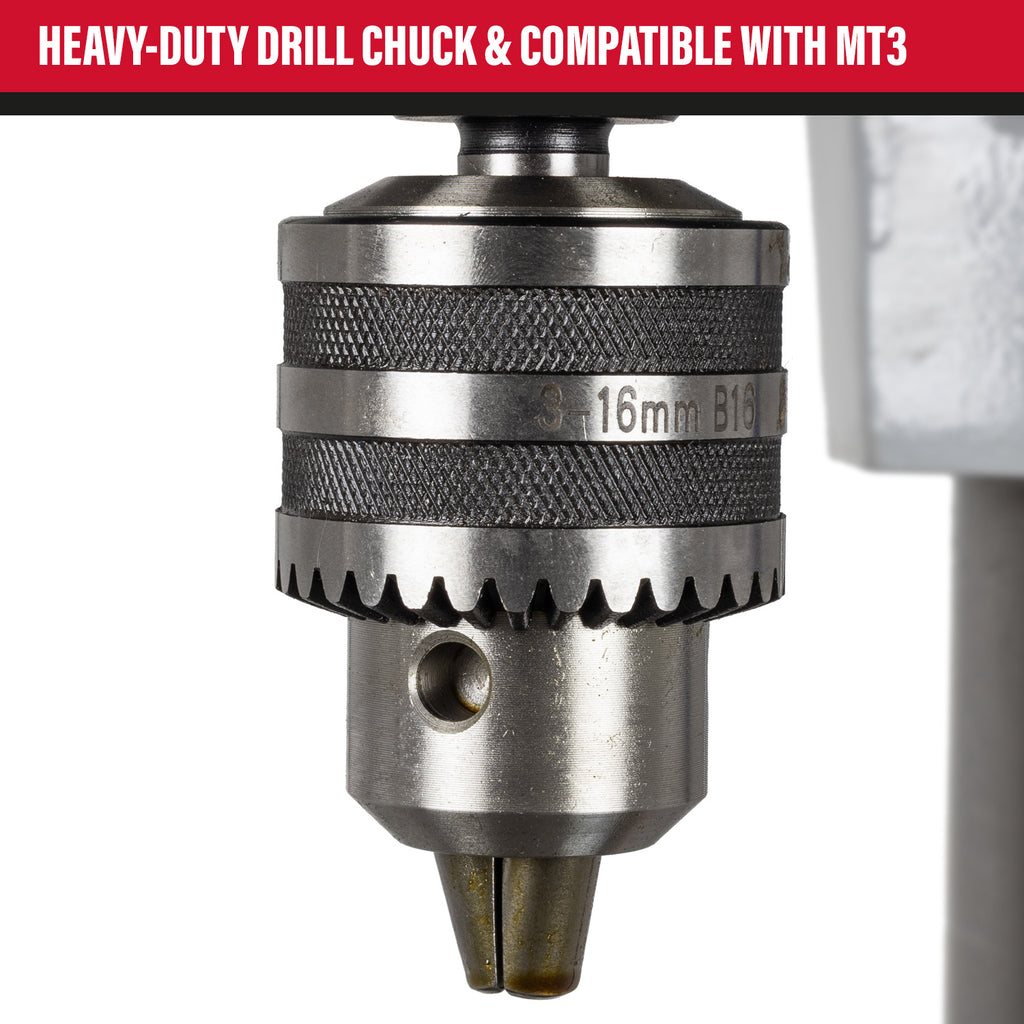

- Fitted with heavy-duty drill chuck and compatible with MT3 (Morse Taper 3)
- Tapping function for threading high-quality screw holes up to max. ? 19mm

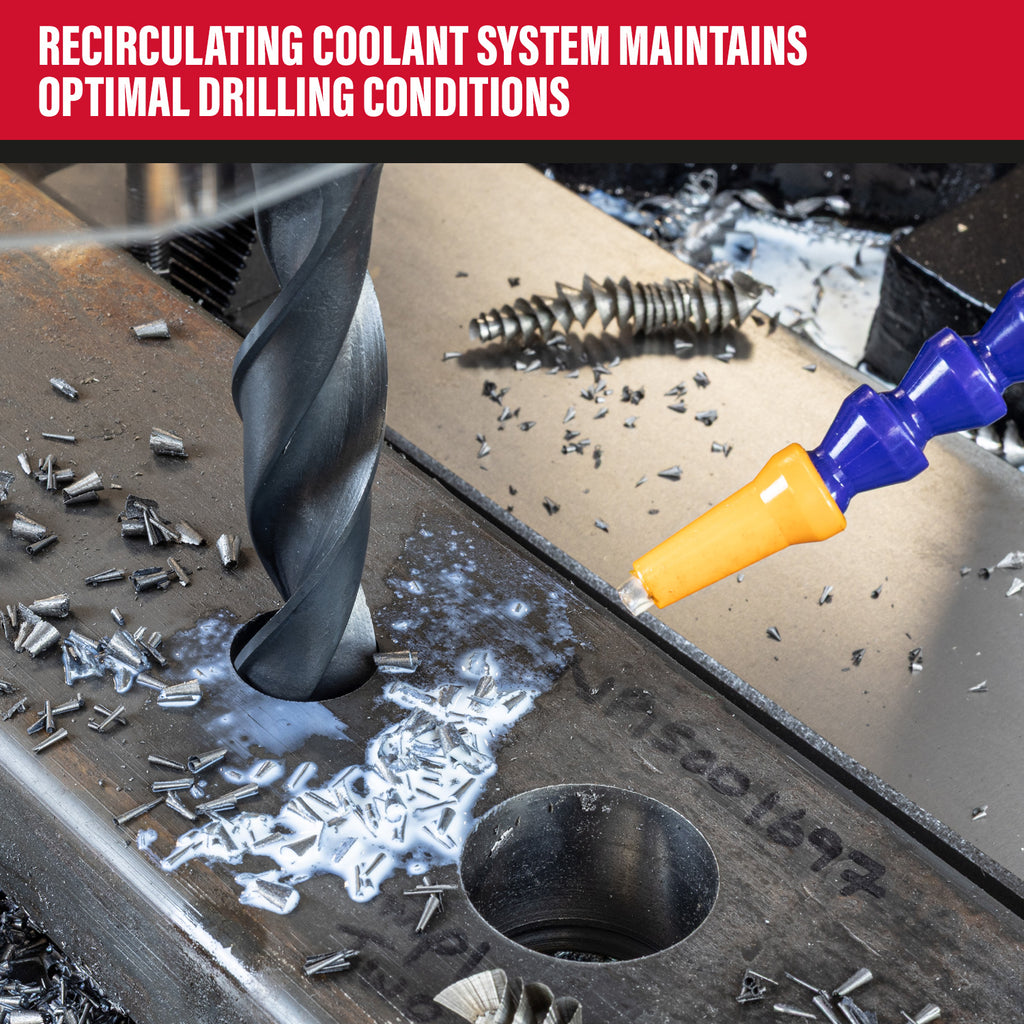

- Recirculating coolant system maintains optimal drilling conditions
APPLICATIONS
- Designed for professional metalworking and fabrication workshops
- Ideal for drilling ferrous and non-ferrous metals including mild steel, aluminium, copper, brass, stainless steel, cast iron and wrought iron
- Metal Fabrication: drilling holes in steel plates and box sections
- General Engineering: creating precise holes for bolts, pins and shafts in various metal components
- Production & Assembly: panels for machinery, motor mounts or bearing housing, metal beams, gates, railings and enclosures
CONTENTS
- 1x SIP Industrial F32-ID Vari-Speed 2.2kW 400v Floor Pillar Drill (400v/16A)
- 1x drill chuck (compatible with Morse Taper 3)
- 1x drill drift
- 1x chuck key
- 1x
- cranking handle
- 1x Y-type socket wrench and 2x handles for headstock and table
WARRANTY
- 2 Years
TECHNICAL DATA
| Input Supply | 400v (16A) |
| Motor Power | 2.2kW |

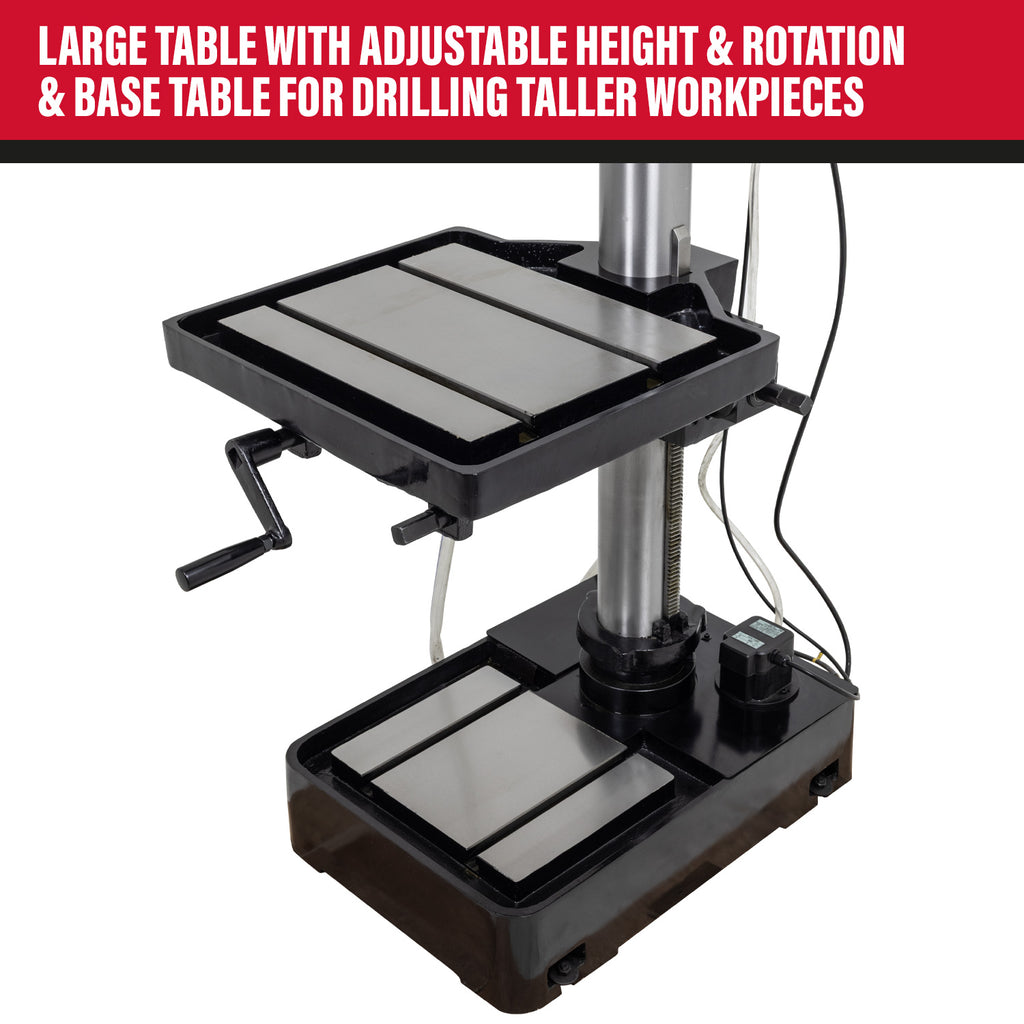

| Table Size | 560mm x 475mm |
| Spindle Travel | 150mm |
| No. of Speeds | 65rpm - 540rpm (low) / 245rpm - 2000rpm (high) |
| Max. Drilling Capacity | 32mm |
| Spindle Taper | MT3 |
| Base Size | 688mm x 486mm |
| Swing | 530mm |
| Height | 1665mm |
| Collar Diameter | ? 174mm |
| Max. Distance | 530mm (spindle to table) / 1180mm (spindle to base) |
| Max. Tapping Capacity | 19mm |
| Product Height (mm) | 1665 |
| Product Width (mm) | 650 |
| Product Depth (mm) | 1090 |
| Net Weight (kg) | 380 |
| Pack Height (mm) | 1000 |
| Pack Width (mm) | 800 |
| Pack Depth (mm) | 1900 |
| Gross Weight (kg) | 455 |
| Parcel or Pallet | Pallet |
