Description

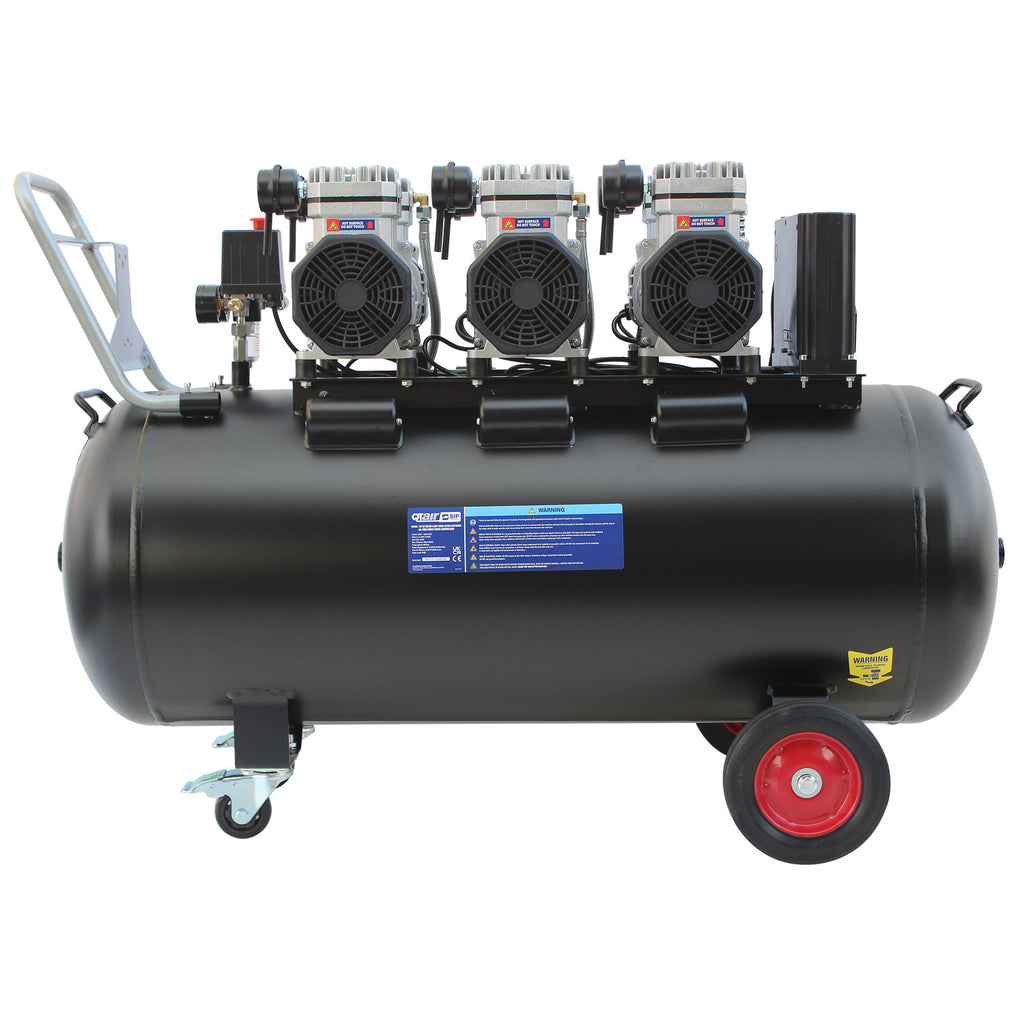

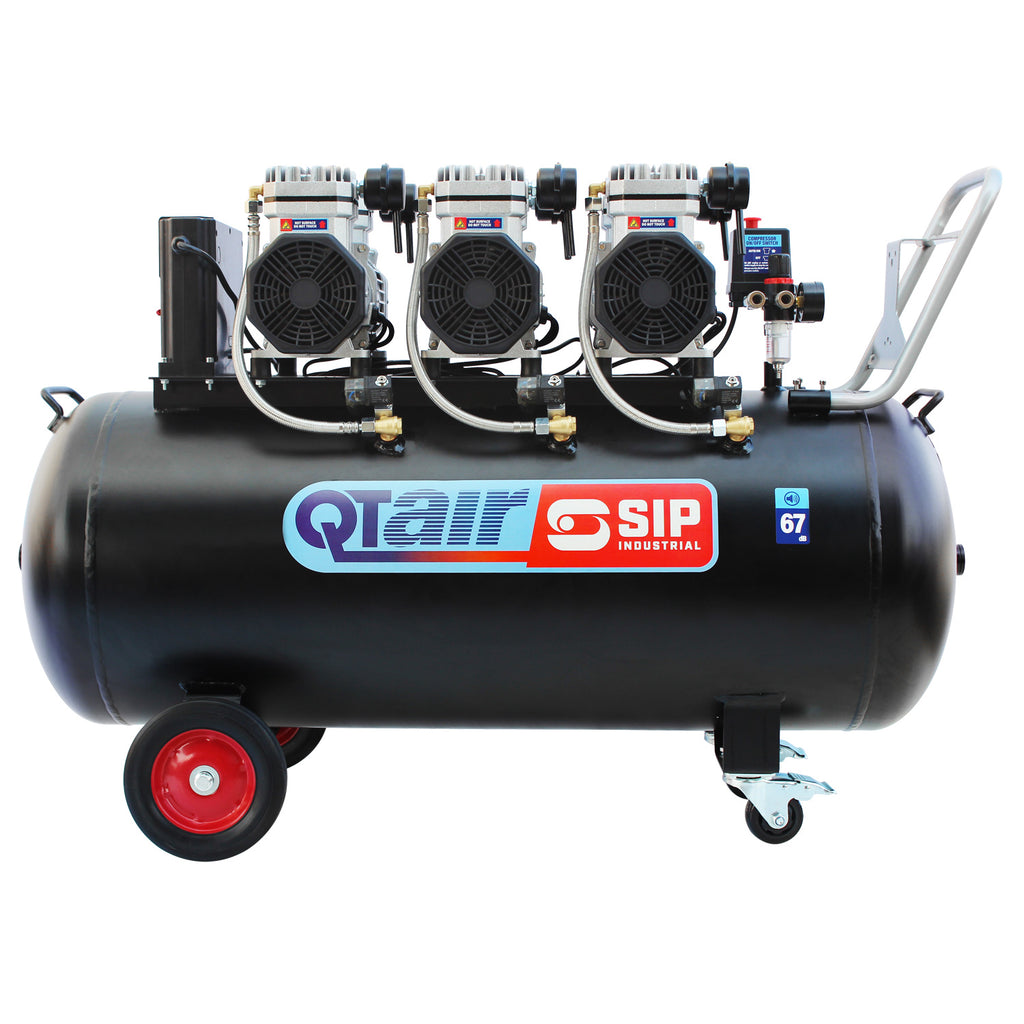

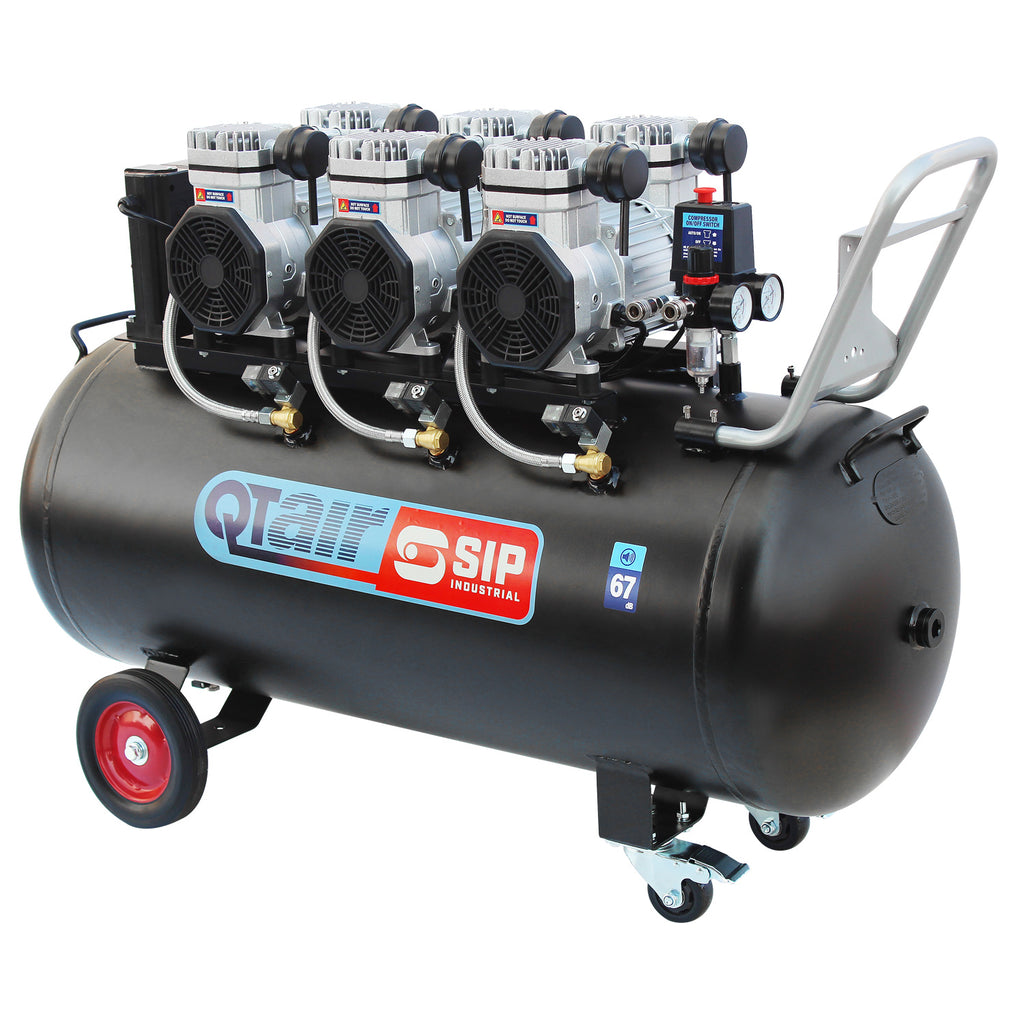

The SIP QT AIR DD 4.5hp 200ltr Ultra Low Noise Oil-Free Direct Drive Compressor is an innovative ultra low noise air compressor which operates at just 67dB and features slow-running 4-pole motor pump units for up to 50% longer life performance.
Built to support demanding higher air volume in automotive environments and large workshops, this oil-free and low maintenance compressor delivers 22.8CFM piston displacement resulting in 18.2CFM Free Air Delivery (FAD) from a single phase supply.

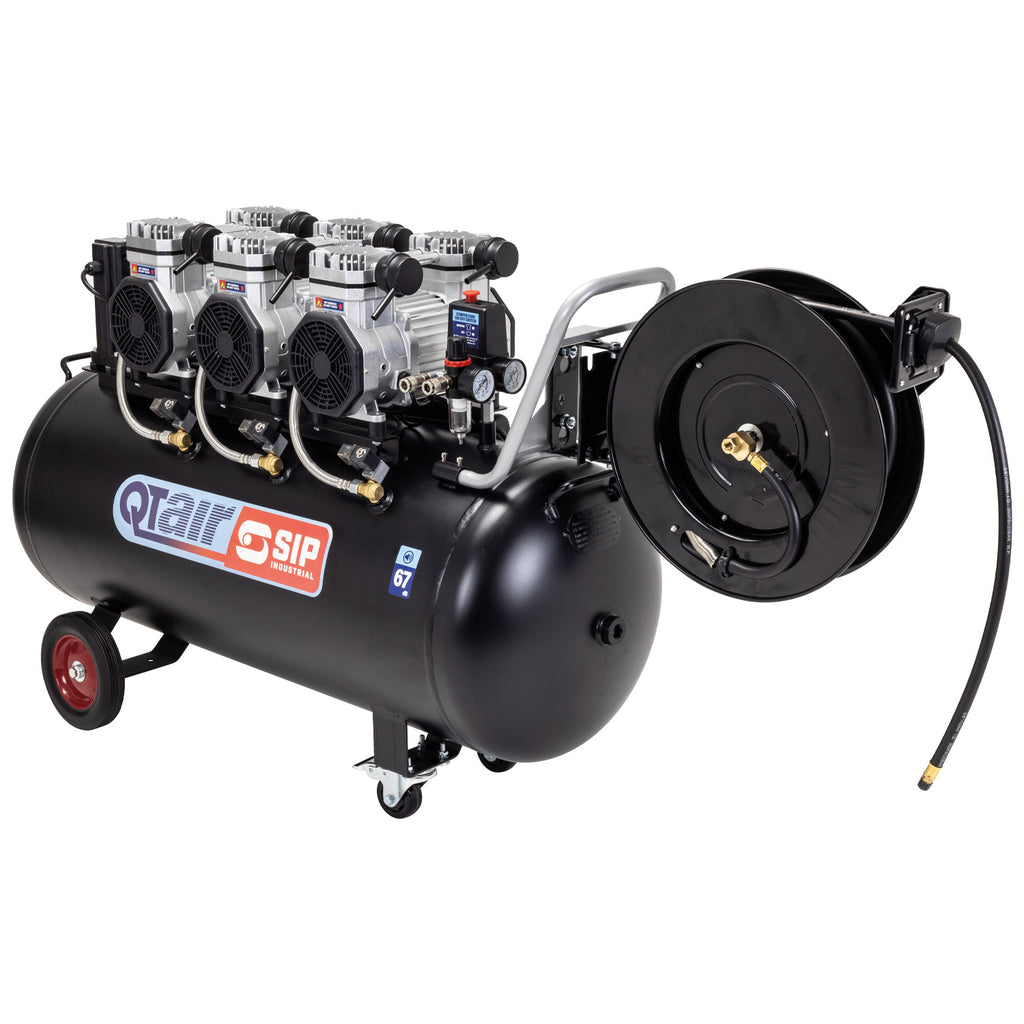

Supplied with a separate SIP Air Hose Reel R15 (07977) for mounting onto the compressor handle using the supplied bracket and fixings.
FEATURES
- 22.8CFM piston displacement resulting in 18.2CFM Free Air Delivery (FAD)

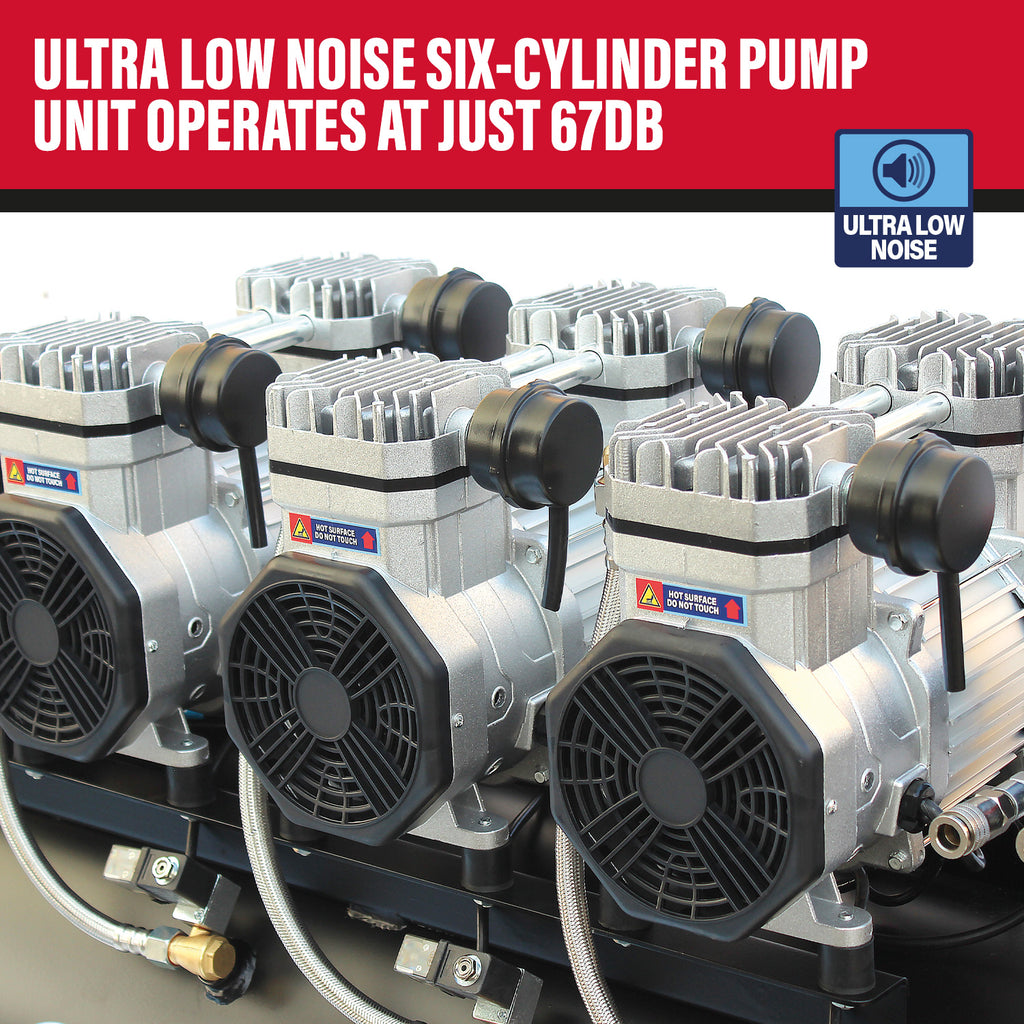

- Ultra low noise six-cylinder motor pump unit operates at just 67dB
- Slow-running oil-free 4-pole motors for longer life performance (4.5hp/3.3kW)

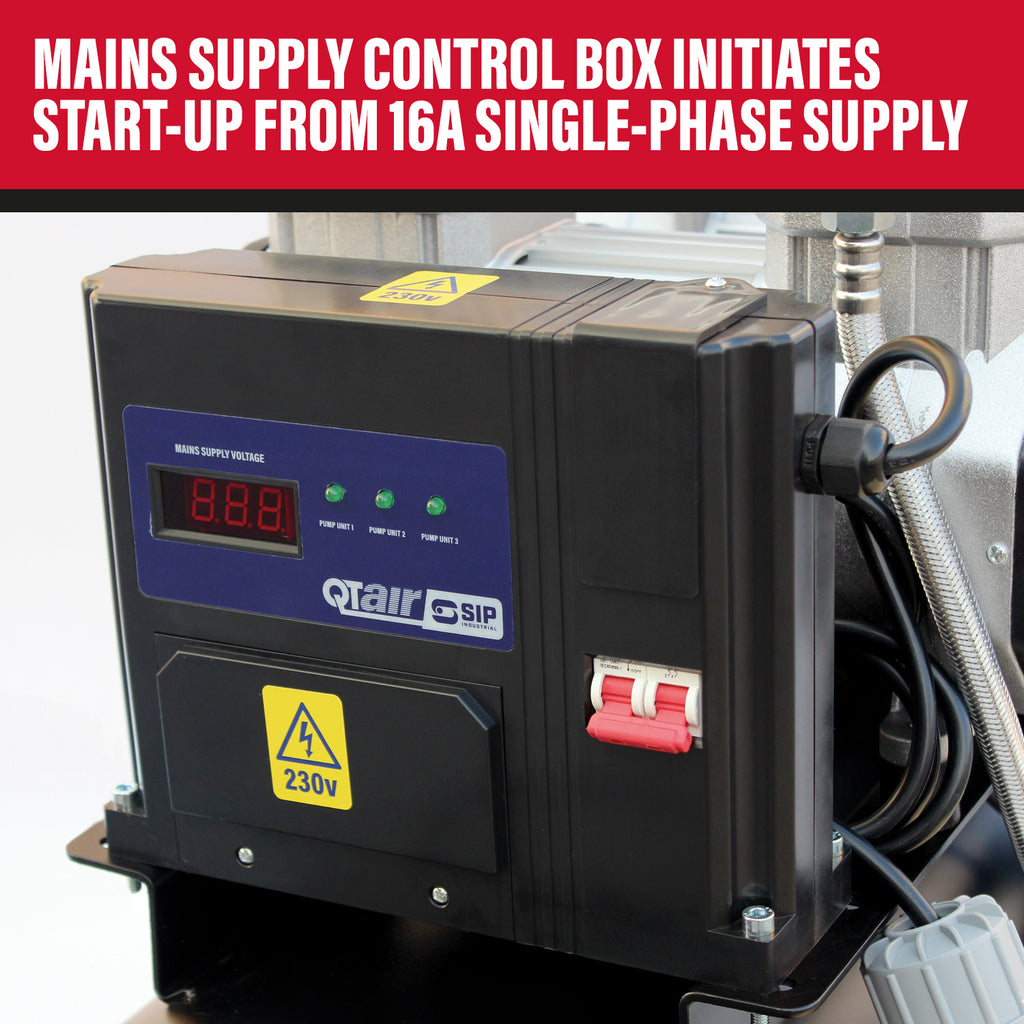

- Mains supply control box initiates start-up from a 16A single-phase supply

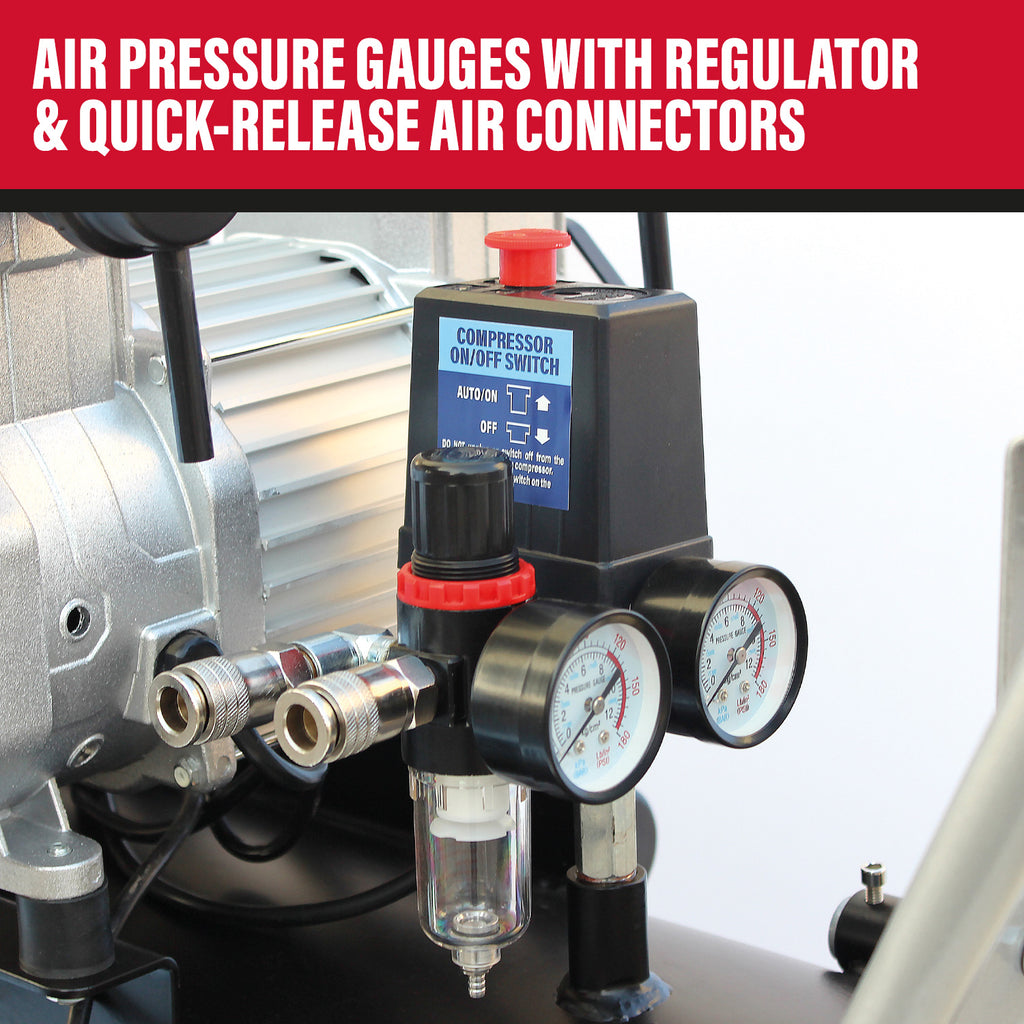

- 200ltr receiver with tank and working pressure gauges and quick-release connectors

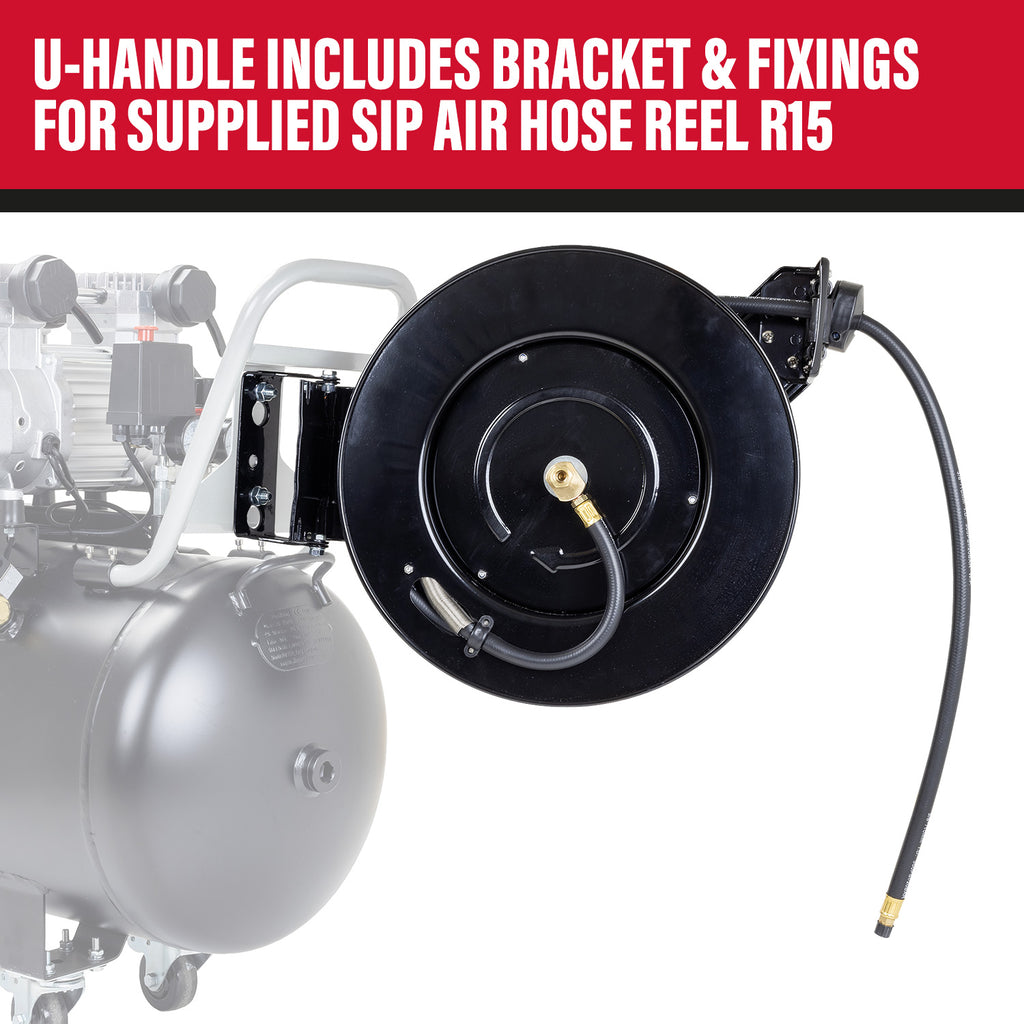

- U-handle includes bracket and fixings for supplied SIP Air Hose Reel R15 (07977)
APPLICATIONS
- Designed for automotive settings and large workshops
- Ideal for spraying applications, pneumatic car lifts, tyre changers and plasma cutters
- Suitable for sanding and grinding applications
CONTENTS
- 1x SIP QT AIR DD 4.5hp 200ltr Ultra Low Noise Oil-Free Direct Drive Compressor
- wheel kit (2x solid wheels and 2x castors)
- pull handle with air hose mounting bracket and fixings
- 3mtr mains cable with 230v/16A plug
- 1x SIP Air Hose Reel R15
WARRANTY
- 2 Years
TECHNICAL DATA
| Input Supply | 230v (16A) |
| Motor Power | 4.5hp (3.3kW) |
| Noise Level | 67dB |
| Max. Air Pressure | 116psi (8bar) |
| Receiver Size | 200ltr |
| Piston Displacement | 22.8CFM (646ltr/min) |
| Free Air Delivery (FAD) | 18.2CFM (515ltr/min) |
| Product Height (mm) | 1315 |
| Product Width (mm) | 1020 |
| Product Depth (mm) | 1375 |
| Net Weight (kg) | 122 |
| Pack Height (mm) | 1430 |
| Pack Width (mm) | 950 |
| Pack Depth (mm) | 1470 |
| Gross Weight (kg) | 142.7 |
| Parcel or Pallet | Pallet |
