Description

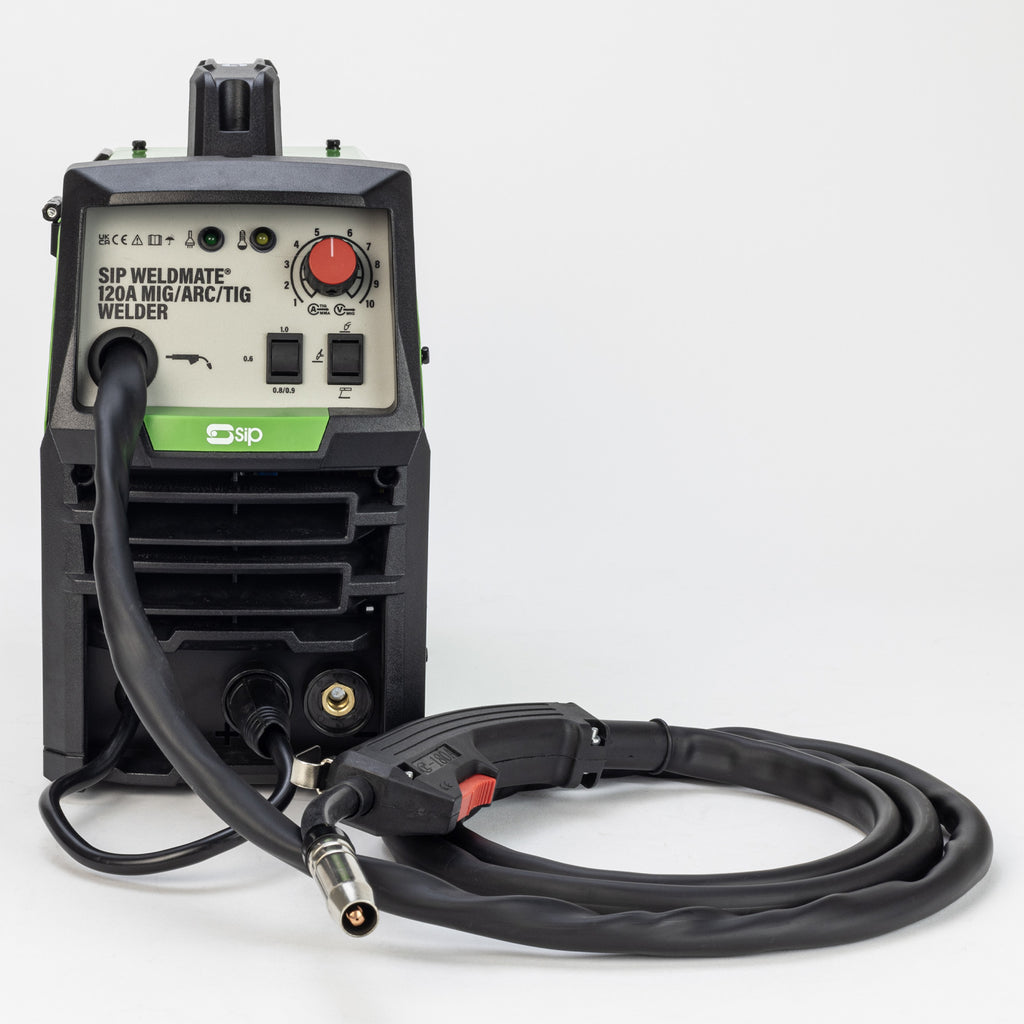

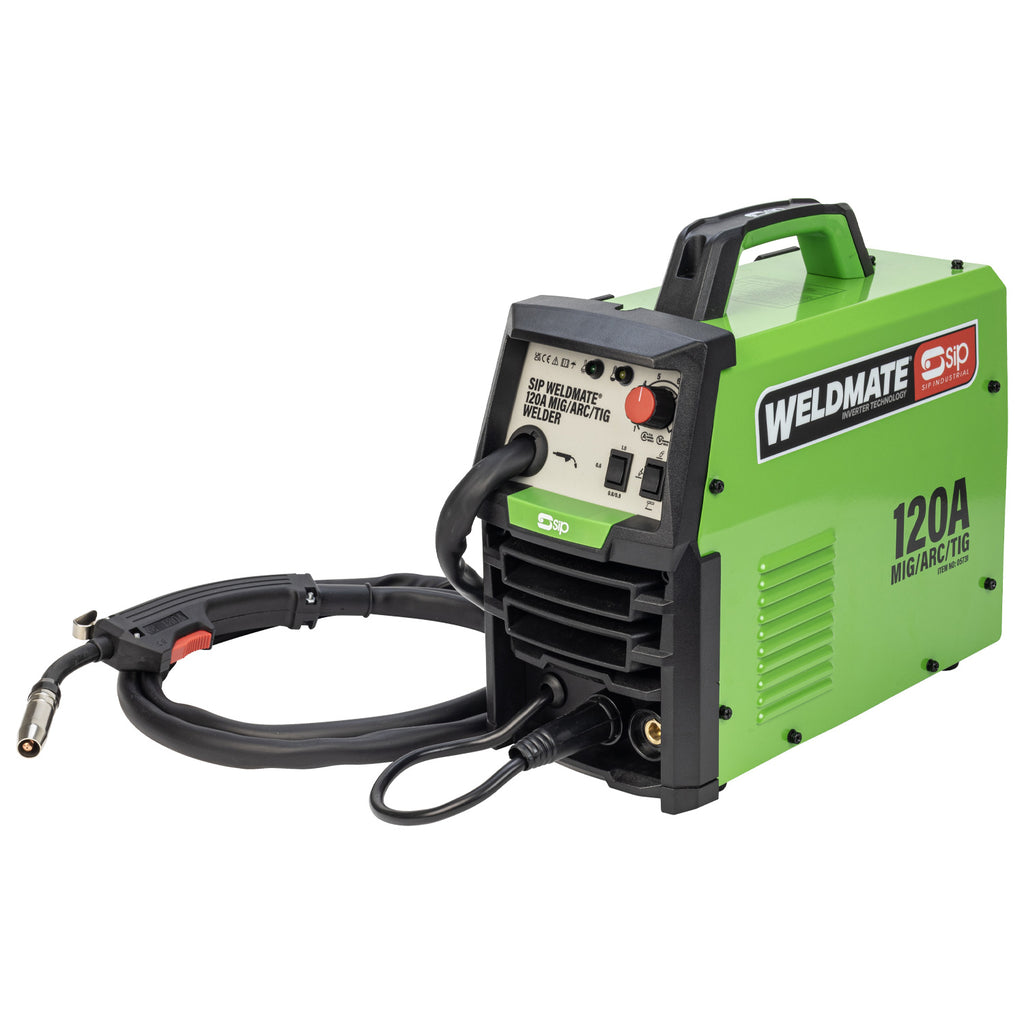

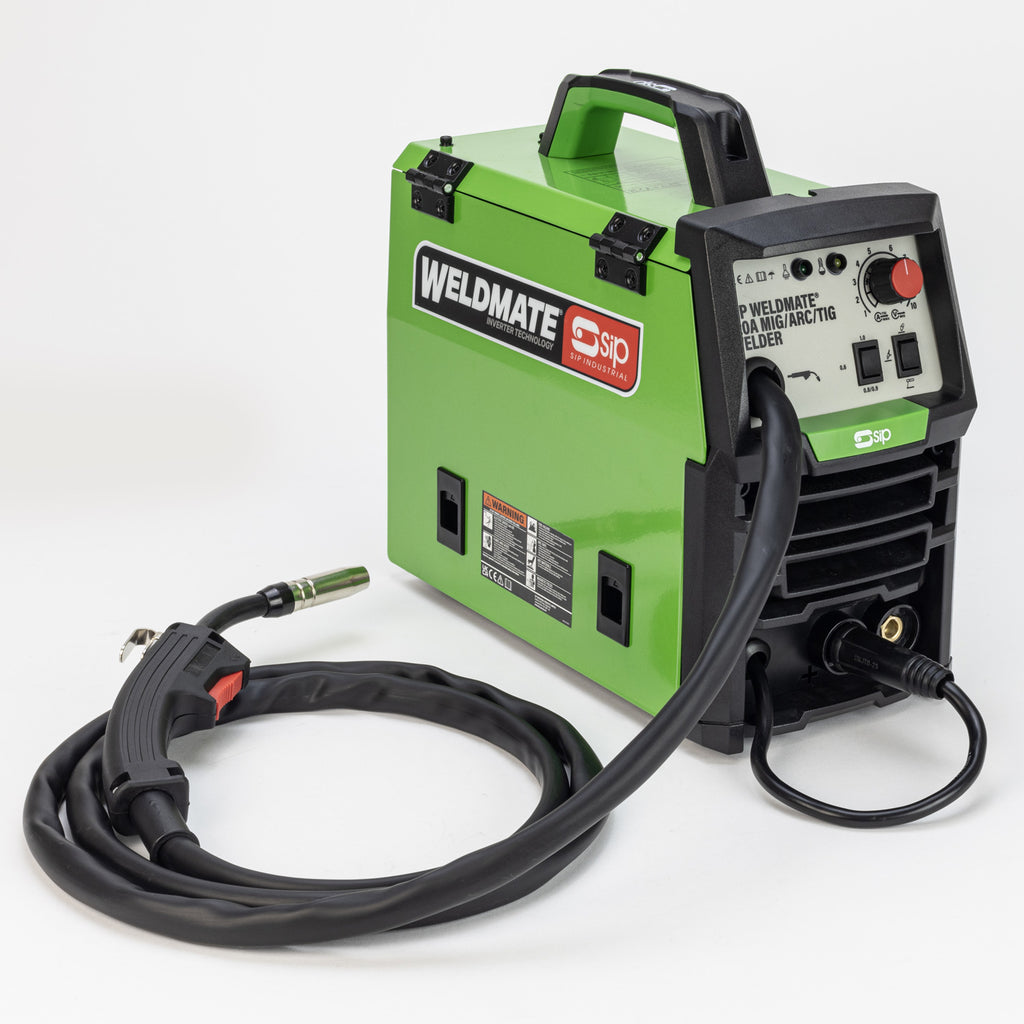

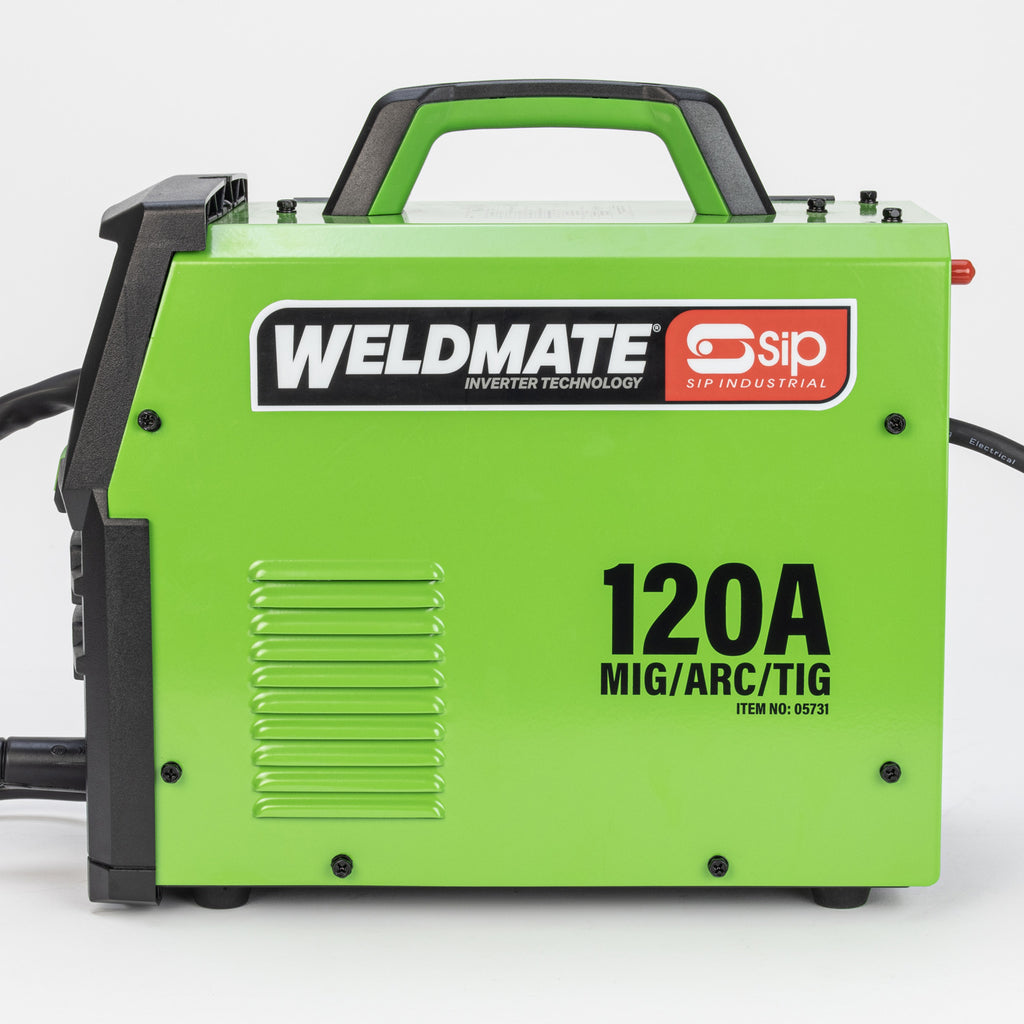

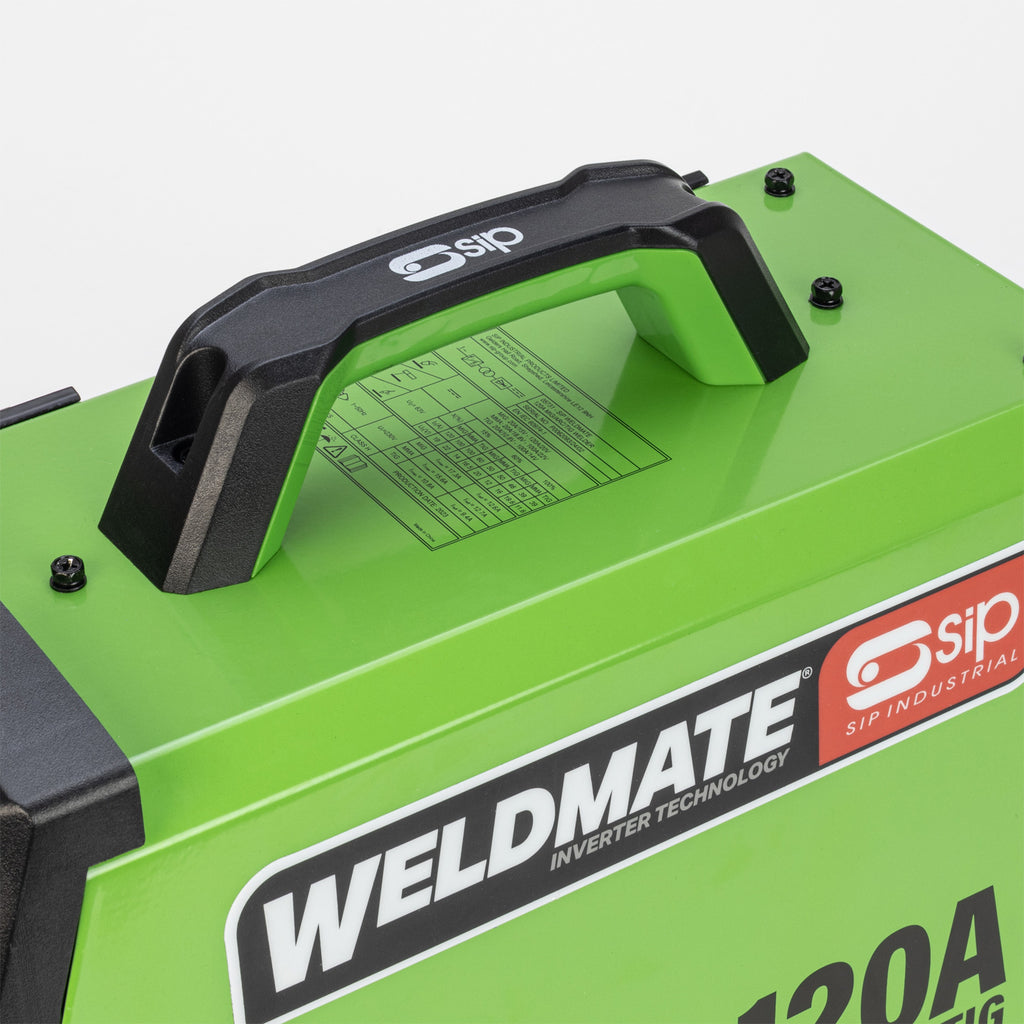

The SIP WELDMATE® 120A MIG/ARC/TIG Inverter Welder is a multi-process inverter welder specifically designed for entry level users and small workshop applications.

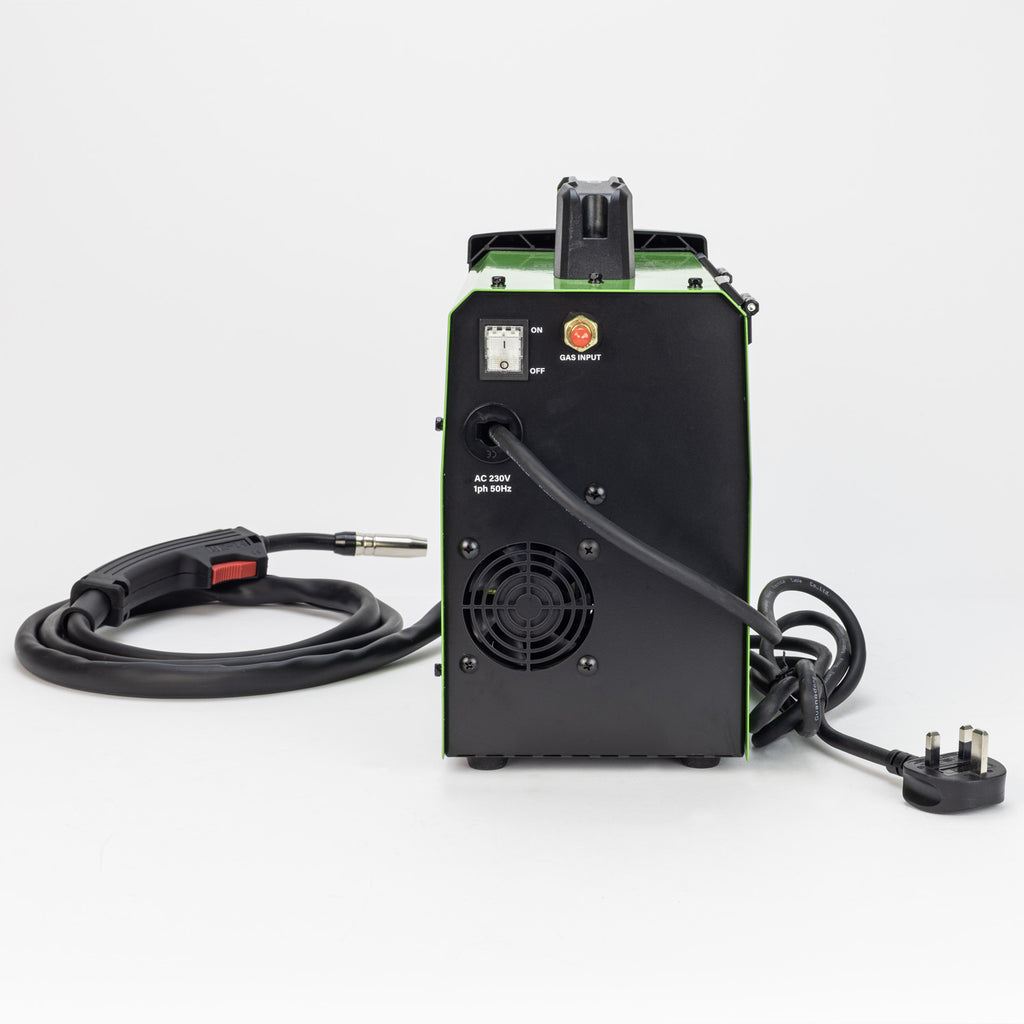

Supplied with all accessories needed to weld straight from the box, this gas and gasless welder also operates from a 13A supply for added flexibility.
Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment), this welder features a 4th generation inverter which is above 80% energy efficient. This means it uses less power at the same output as older inverters, helping to lower operating costs.
FEATURES
- Multi-process MIG/ARC/TIG welder for greater flexibility
- Also performs gasless MIG welding for added versatility
- All accessories needed to weld straight from the box supplied
- Fully compliant with EU 2019/1784 (Eco Design for Welding Equipment)

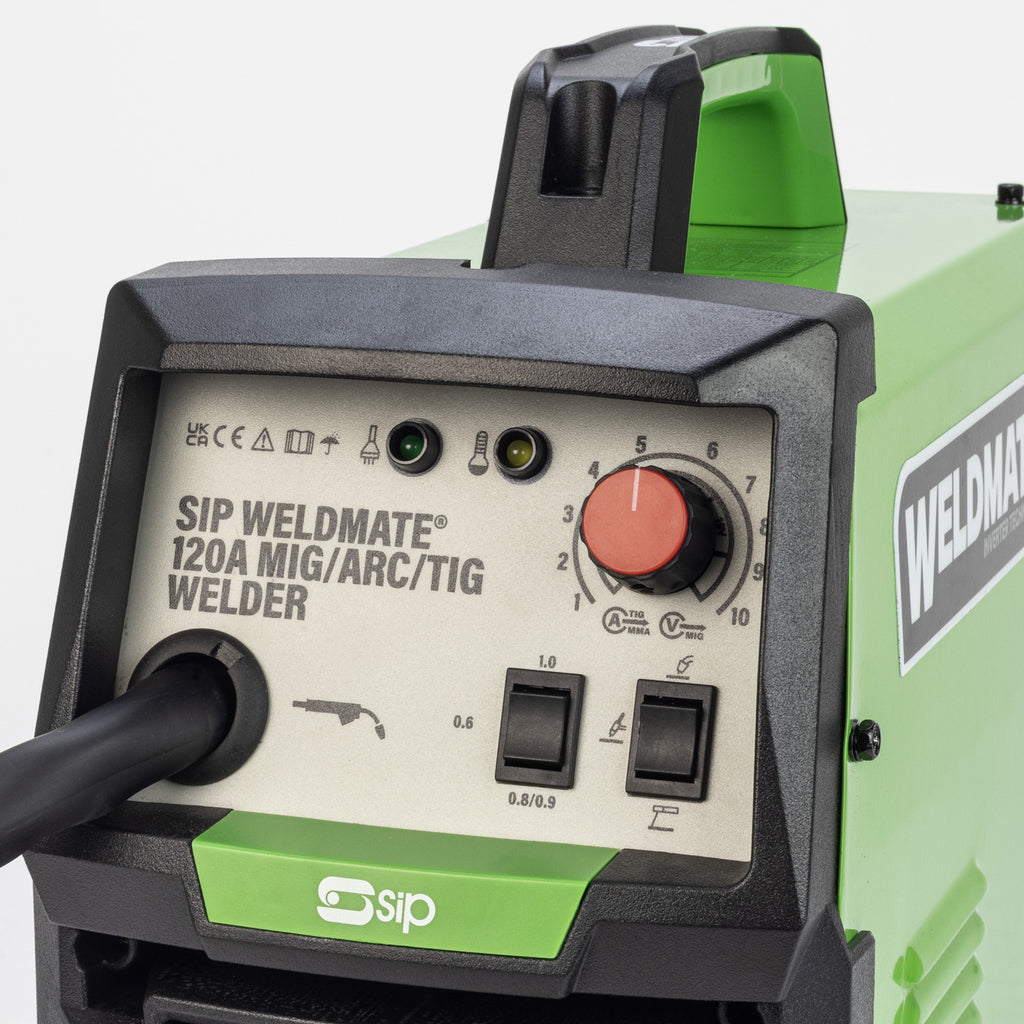

- Infinitely variable dial for smoother stepless output adjustment
- Compact and portable design for mobility around work area
APPLICATIONS
- Perfect for entry level users and small workshop applications
- Suitable for MIG/ARC/TIG welding
- Performs gasless MIG welding
- Ideal for mild steels and *stainless steel
- *Using stainless steel welding wire

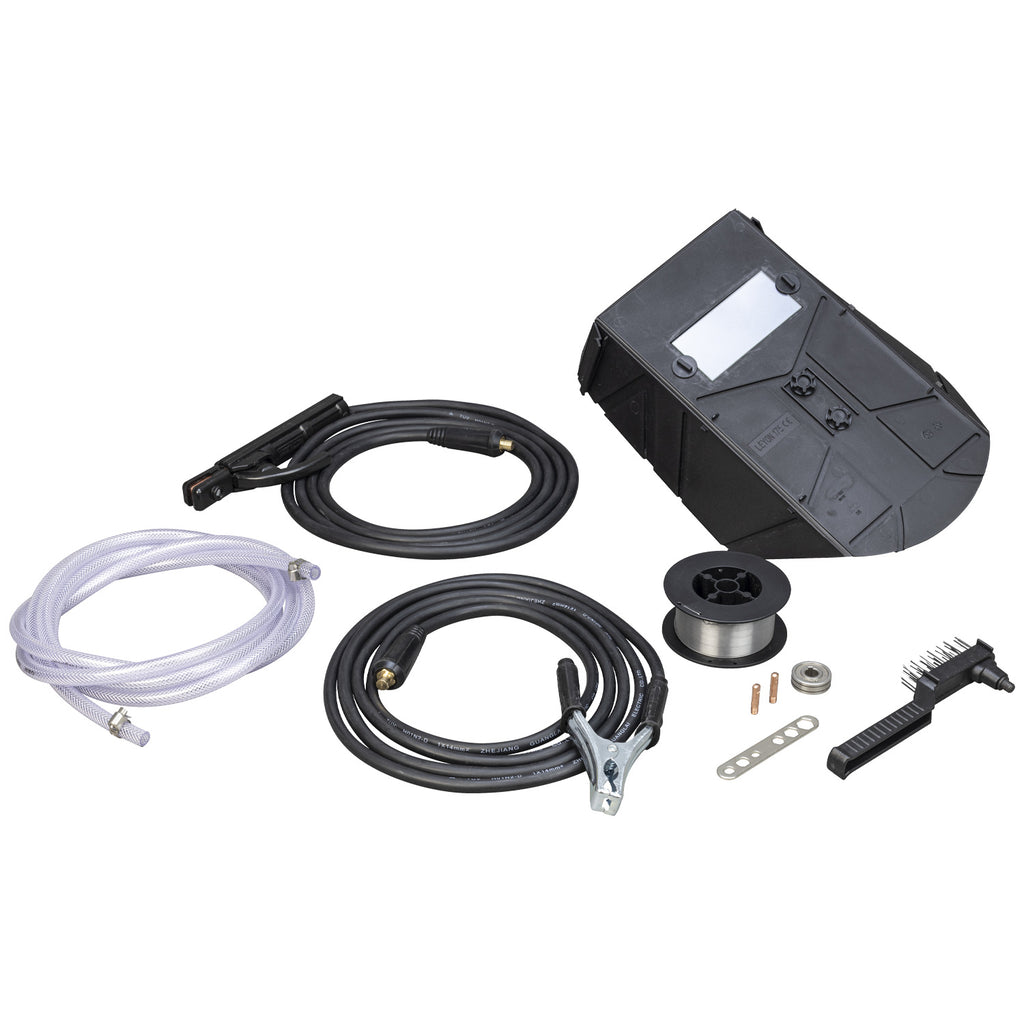

CONTENTS
- 1x SIP WELDMATE® 120A MIG/ARC/TIG Inverter Welder (230v/13A)
- 1x 2mtr integrated MIG torch
- 1x 3mtr electrode lead
- 1x 3mtr earth lead
- 1x 3mtr gas hose with clamps

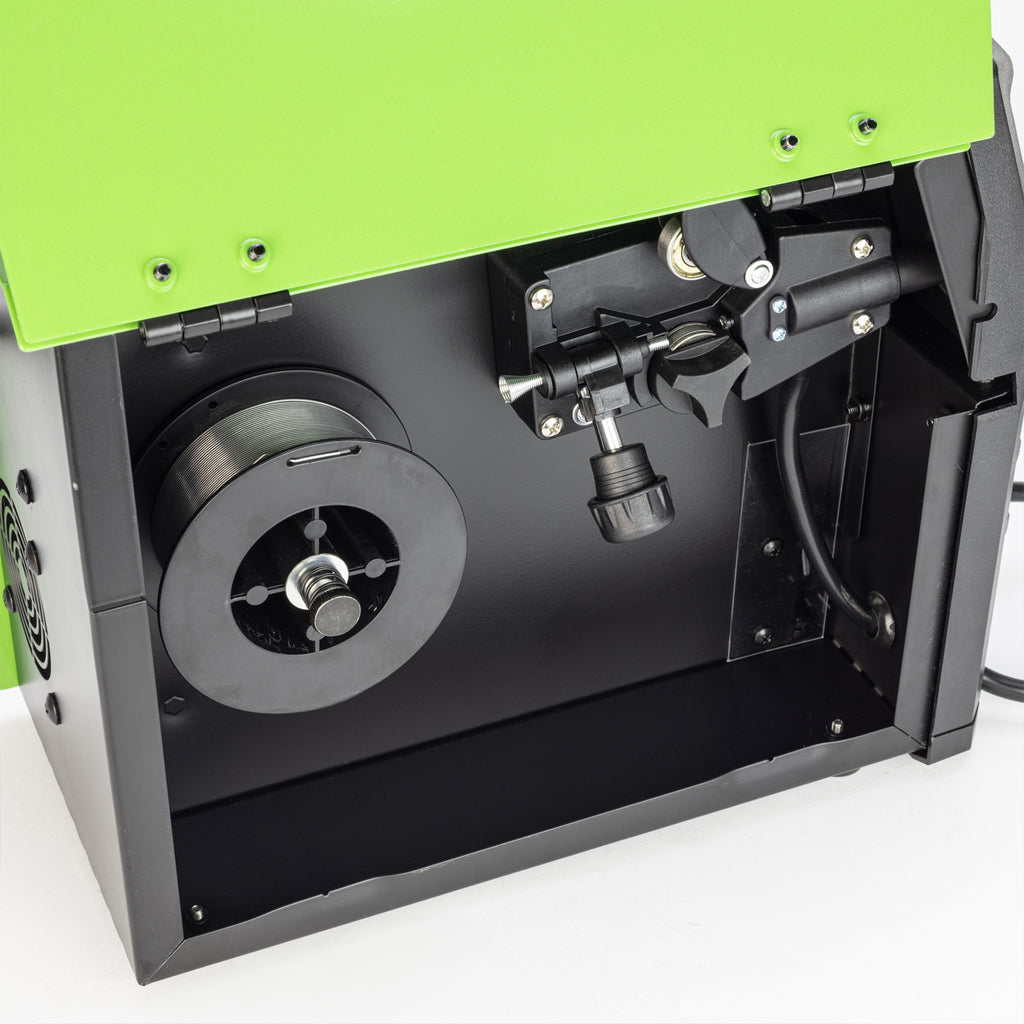

- 1x 0.7kg flux-cored wire reel
- 2x feed rollers
- 2x contact tips
- 1x torch spanner and 1x chipping hammer/brush. TIG torch sold separately (Item 08206A recommended)
WARRANTY
- 2 Years
TECHNICAL DATA
| Input Supply | 230v (13A) |
| Wire Spool Size | 0.7kg |
| Output Voltage | 15v - 20v (MIG) / 18.8v - 22v (ARC) / 10.8v - 14v (TIG) |
| Output Current | 20A - 120A (MIG) / 20A - 100A (ARC) / 20A - 100A (TIG) |
| Welding Material Thickness | 0.8mm - 4mm (mild steel) |
| Duty Cycle @ 40°C | 120A @ 15% (MIG) / 100A @ 15% (ARC) / 100A @ 15% (TIG) |
| Wire Diameter | ? 0.8mm - 0.9mm |
| Product Height (mm) | 310 |
| Product Width (mm) | 170 |
| Product Depth (mm) | 340 |
| Net Weight (kg) | 7 |
| Pack Height (mm) | 380 |
| Pack Width (mm) | 280 |
| Pack Depth (mm) | 385 |
| Gross Weight (kg) | 8.4 |
| Parcel or Pallet | Parcel |
