Description

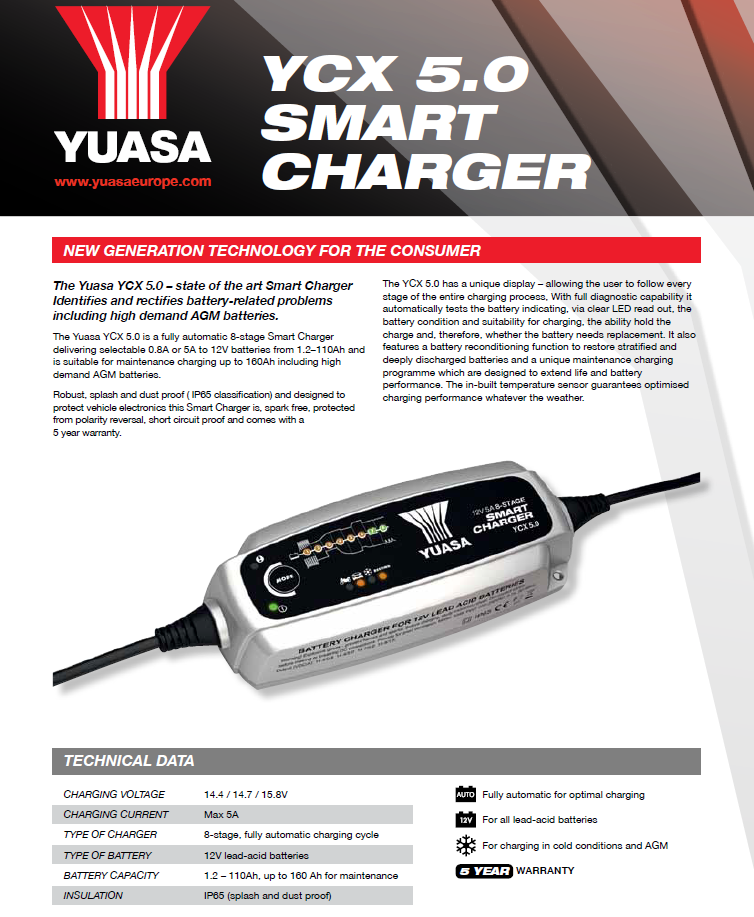

The Yuasa YX 5.0 – state of the art Smart Charger
Identifies and rectifies battery-related problems
including high demand AGM batteries.

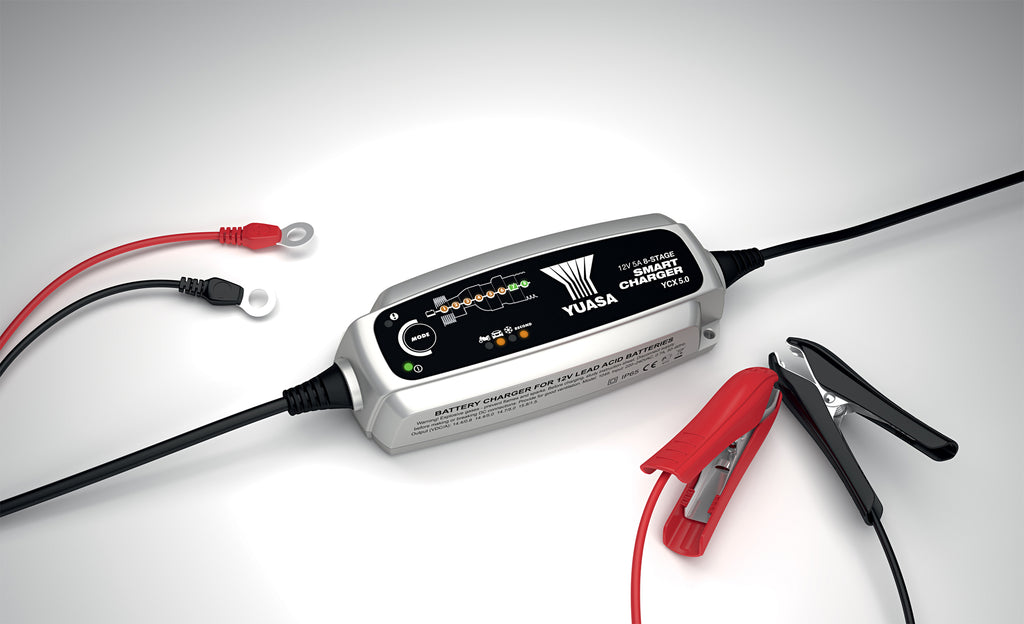

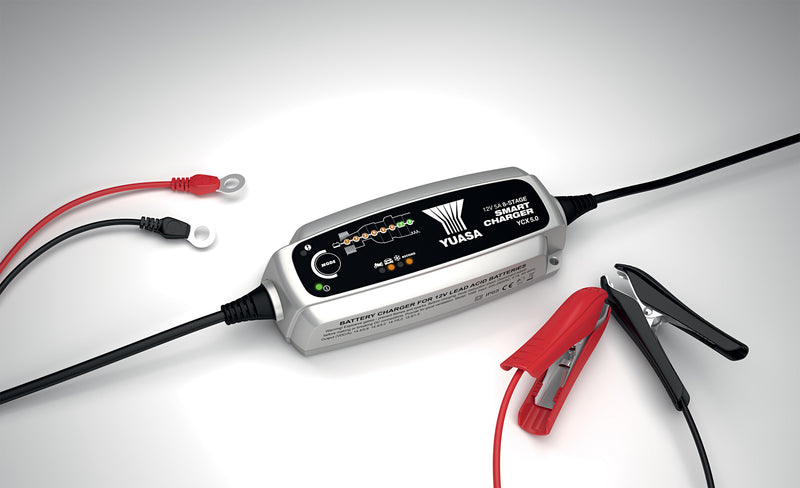

The Yuasa YCX 5.0 is a fully automatic 8-stage Smart Charger
delivering selectable 0.8A or 5A to 12V batteries from 1.2–110Ah and
is suitable for maintenance charging up to 160Ah including high
demand AGM batteries.
Robust, splash and dust proof ( IP65 classification) and designed to
protect vehicle electronics this Smart Charger is, spark free, protected
from polarity reversal, short circuit proof and comes with a
5 year warranty.
The YCX 5.0 has a unique display – allowing the user to follow every
stage of the entire charging process, With full diagnostic capability it
automatically tests the battery indicating, via clear LED read out, the
battery condition and suitability for charging, the ability hold the
charge and, therefore, whether the battery needs replacement. It also
features a battery reconditioning function to restore stratified and
deeply discharged batteries and a unique maintenance charging
programme which are designed to extend life and battery
performance. The in-built temperature sensor guarantees optimised
charging performance whatever the weather.

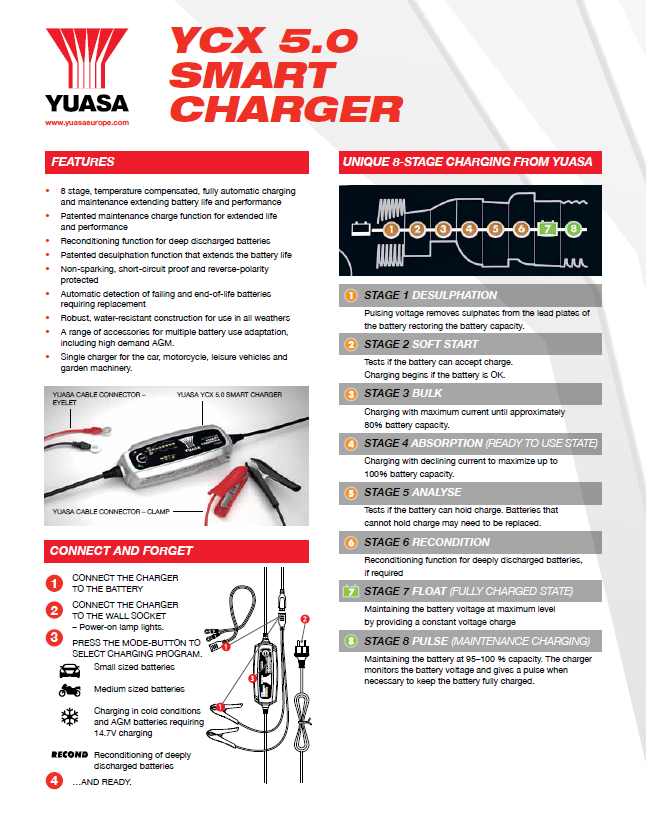

FEATURES
- Fully automatic for optimal charging
- For all lead-acid batteries
- For charging in cold conditions and AGM
- 8 stage, temperature compensated, fully automatic charging
- and maintenance extending battery life and performance
- Patented maintenance charge function for extended life
- and performance
- Reconditioning function for deep discharged batteries
- Patented desulphation function that extends the battery life
- Non-sparking, short-circuit proof and reverse-polarity
- protected
- Automatic detection of failing and end-of-life batteries
- requiring replacement
- Robust, water-resistant construction for use in all weathers
- A range of accessories for multiple battery use adaptation,
- including high demand AGM.
- Single charger for the car, motorcycle, leisure vehicles and
- garden machinery.

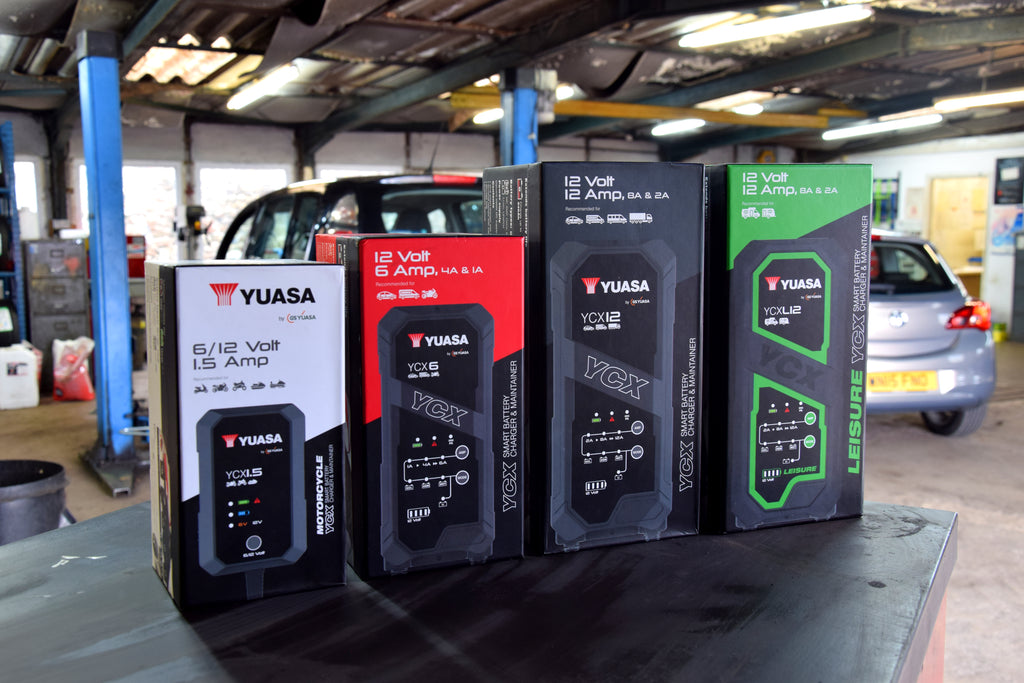

YUASA YCX SMART CHARGERS & ACCESSORIES
- Developed using GS Yuasa’s world leading battery manufacturing expertise to extend battery life, maintain performance and provide ultimate reliability.
- Automatic maintenance mode sustains optimum state of charge during battery storage.
- Detects and communicates charging faults caused by battery problems.
- Enhanced safety features, including short circuit, overcharging and reverse polarity protection for ultimate peace of mind.
- Durable splashproof (IP44) construction with robust integrated clamp and eyelet connectors.
- Self-activating maintenance mode sustains optimum state of charge during battery storage.
- The only vehicle battery charger you will ever need, with selectable power output levels to cover the widest range of battery capacities.
- Easy to use with simple navigation buttons and clear LED indicators.
WARRANTY
- 5 Year Warranty
TECHNICAL DATA
| CHARGING VOLTAGE | 14.4 / 14.7 / 15.8V |
| CHARGING CURRENT | Max 5A |
| TYPE OF CHARGER | 8-stage, fully automatic charging cycle |
| TYPE OF BATTERY | 12V lead-acid batteries |
| BATTERY CAPACITY | 1.2 – 110Ah, up to 160 Ah for maintenance |
| INSULATION | IP65 (splash and dust proof) |
